纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (29.218.AO[04]) - HYDROSTATIC PUMP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
780 次

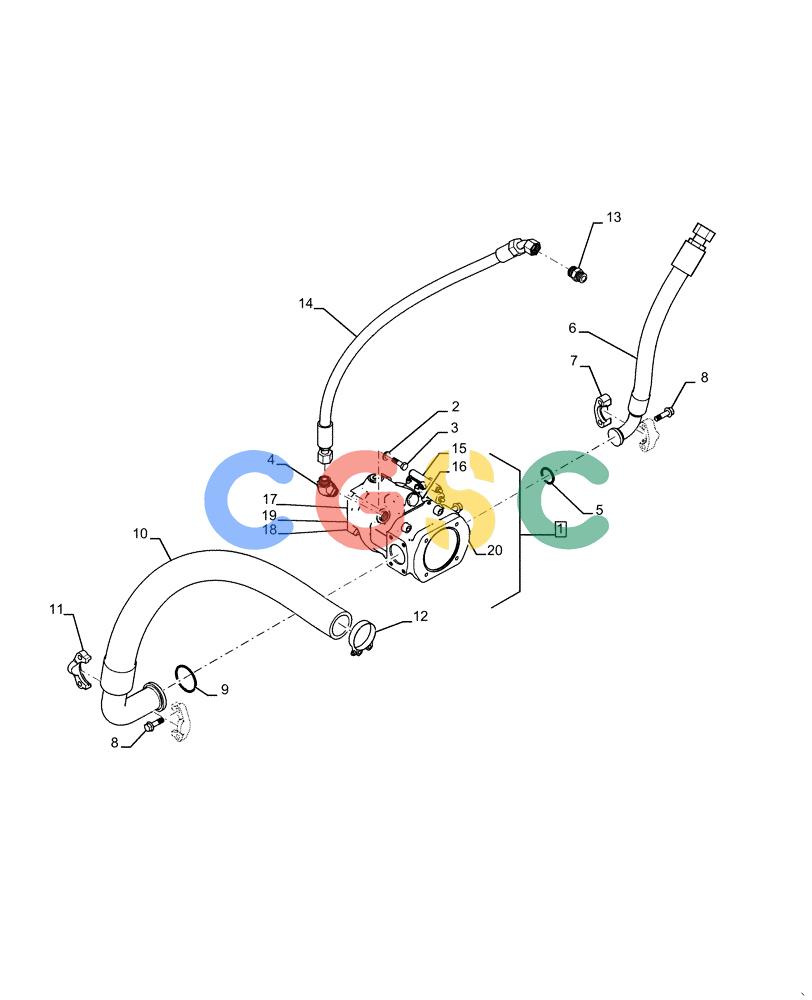

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47374438 | [1] | PUMP,85 CC | BURMain Incl 15 - 20 |
| 2. | 87655043 | [4] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BUR13.65 x 24.9 x 3.2mm |
| 3. | 47446999 | [4] | BOLT | BURM12 x 40 Class 10.9 ZND |
| 4. | 9846870 | [1] | ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB | GI |
| 5. | 235757 | [1] | O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro | WIN |
| 6. | 47371604 | [1] | HYDRAULIC HOSE,31.5mm ID x 690mm L, SAE 100R12 | BURValve Supply |
| 7. | 86980733 | [2] | CLAMP | GISplit Flange |
| 8. | 47522099 | [8] | BOLT | BHB1/2 - 13 x 1.75 GR8 |
| 9. | 87421143 | [1] | O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro | IMO |
| 10. | 47474570 | [1] | HOSE,63.5mm ID x 1072mm L, SAE 100R4 | BURSuction |
| 11. | 70921588 | [2] | HYD CONNECTOR | CMISplit Flange |
| 12. | 214-2164 | [1] | CLAMP,#64, 2.87"-3.18", T-Bolt | CAS Superseded by part number: 71431617 |
| 13. | 9840535 | [1] | HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB | NH Superseded by part number: 87393627 |
| 14. | 47474571 | [1] | HOSE,19.05mm ID x 1073.5mm L, SAE 100R1 | BURPump to Drain Manifold |
| 15. | 47359201 | [1] | CONTROL VALVE | BURDFRI Compensator |
| 16. | 87553152 | [1] | GASKET | FARControl Valve |
| 17. | 47359634 | [1] | SEALING RING | BURShaft |
| 18. | 47395108 | [1] | SEAL KIT | BUR |
| 19. | 87597267 | [1] | RING | WICSeeger |
| 20. | 87358545 | [1] | O-RING,3mm Thk x 130mm ID | FAR |
