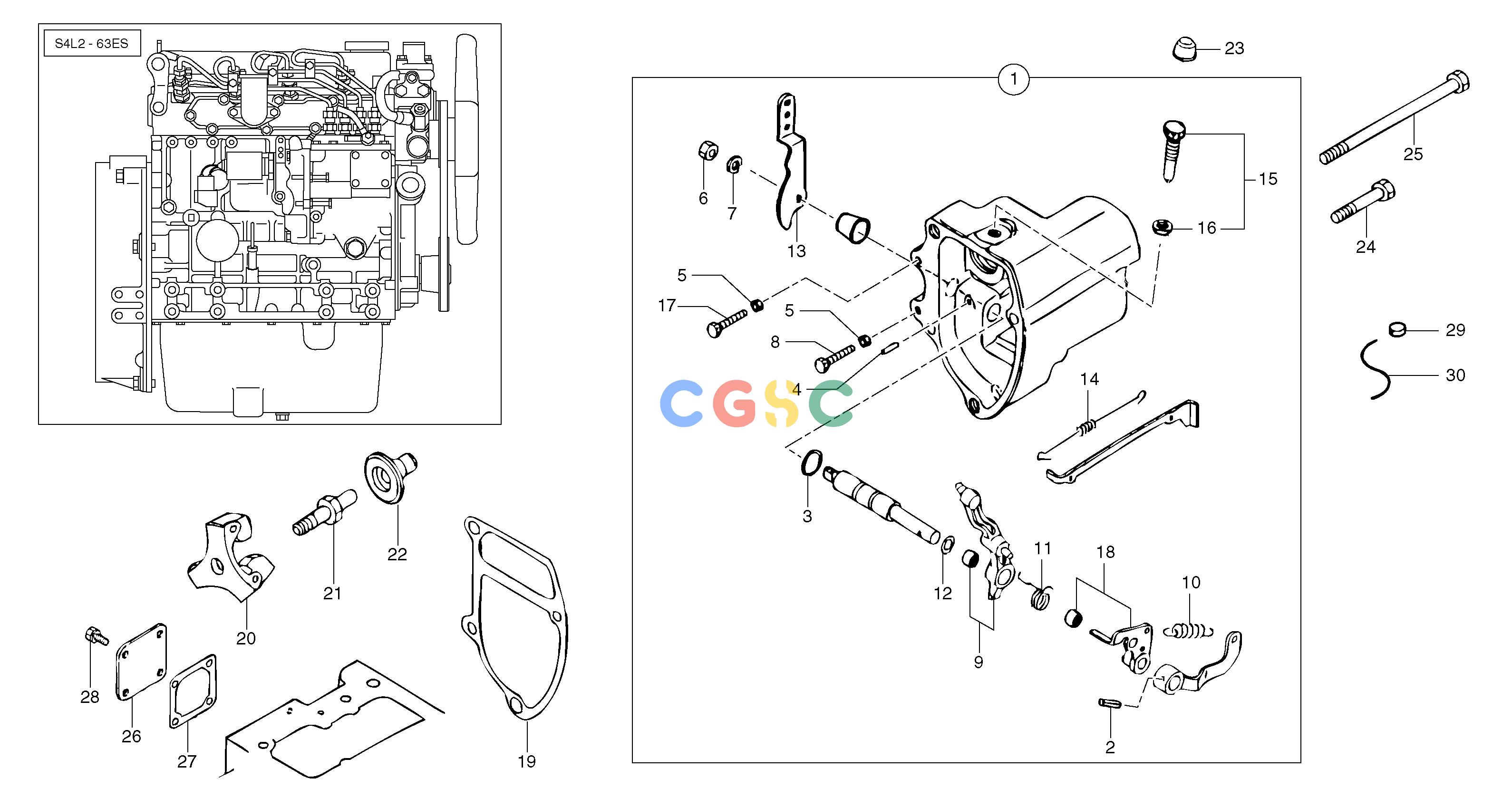

沃尔沃零件查询EC35 Engine injection pump controlTYPE 283283.10151 283.18462-NoneNoneNoneS4L2-63ESAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7417851
|
[1] |
Regulator
|
|
| 2. |
PJ7415323
|
[1] |
Pin
|
|
| 3. |
PJ7415324
|
[1] |
O-ring
|
|
| 4. |
PJ7410026
|
[1] |
Pin
|
|
| 5. |
PJ7410116
|
[2] |
Nut
|
|
| 6. |
PJ7410120
|
[1] |
Nut
|
|
| 7. |
PJ7410126
|
[1] |
Lock Washer
|
|
| 8. |
PJ7415349
|
[1] |
Screw
|
|
| 9. |
PJ7417853
|
[1] |
Lever
|
S4L2-63ES, ENG - 53843
|
| 9. |
PJ7417838
|
[1] |
Lever
|
S4L2-63ES, ENG 53844 -
|
| 10. |
PJ7417844
|
[1] |
Spring
|
|
| 11. |
PJ7415501
|
[1] |
Spring
|
|
| 12. |
PJ7415503
|
[1] |
Shim
|
|
| 13. |
PJ7417836
|
[1] |
Lever
|
|
| 14. |
PJ7415500
|
[1] |
Spring
|
|
| 15. |
PJ7417833
|
[1] |
Regulator
|
|
| 16. |
PJ7417834
|
[1] |
Nut
|
|
| 17. |
PJ7417837
|
[1] |
Screw
|
|
| 18. |
PJ7417852
|
[1] |
Lever
|
S4L2-63ES, ENG - 53843
|
| 18. |
PJ7417835
|
[1] |
Lever
|
S4L2-63ES, ENG 53844 -
|
| 19. |
PJ7415510
|
[1] |
Seal
|
|
| 20. |
PJ7417840
|
[1] |
Weight
|
|
| 21. |
PJ7417839
|
[1] |
Stub Axle
|
|
| 22. |
PJ7417841
|
[1] |
Weight
|
|
| 23. |
PJ7410804
|
[1] |
Cap
|
|
| 24. |
PJ7410092
|
[3] |
Screw
|
|
| 25. |
PJ7415502
|
[1] |
Screw
|
|
| 26. |
PJ7415365
|
[1] |
Cover
|
|
| 27. |
PJ7410261
|
[1] |
Seal
|
S4L2-63ES, ENG - 53843
|
| 27. |
PJ7418393
|
[1] |
Seal
|
S4L2-63ES, ENG 53844 -
|
| 28. |
PJ7417843
|
[4] |
Attachment kit
|
|
| 29. |
PJ7410147
|
[1] |
Seal
|
|
| 30. |
PJ7418267
|
[1] |
Wire
|
|
