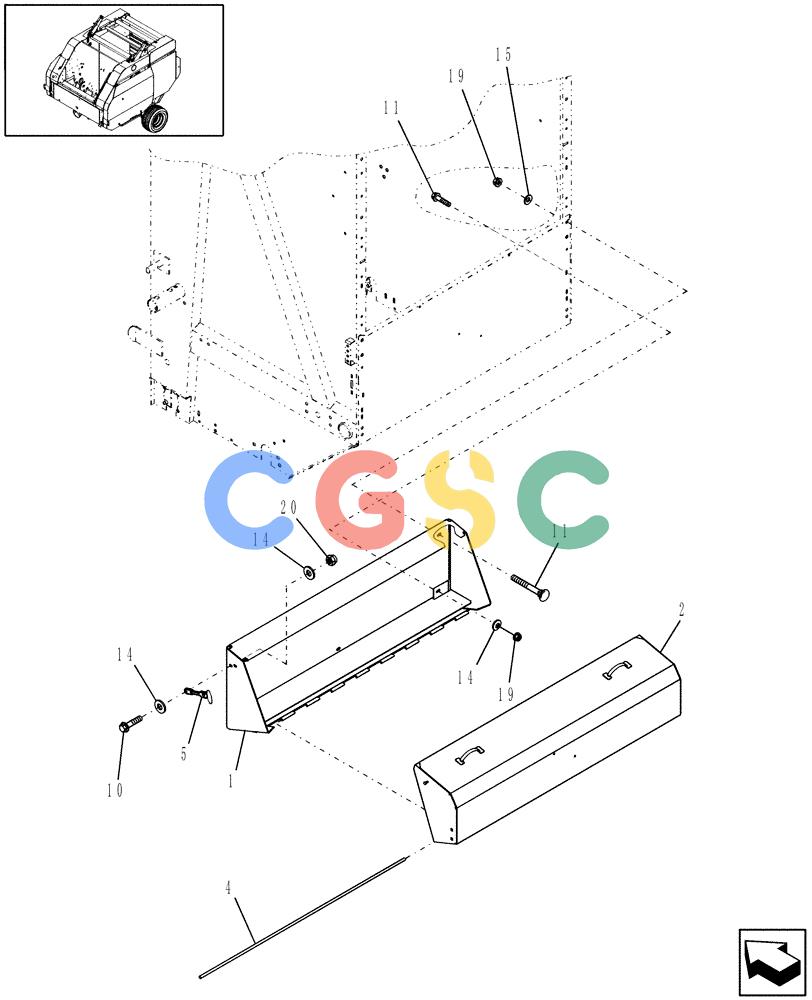

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (08.77) - SHIELDS, NET BOX, SINGLE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
205 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86729856
|
[1] |
SUPPORT ASSY.
|
NH
|
| 2. |
86729852
|
[1] |
LID
|
NH
Superseded by part number: 87056337
|
| 4. |
9617448
|
[1] |
PIN,6.35mm OD x 1493.52mm L
|
NH
|
| 5. |
86000448
|
[2] |
LATCH
|
NH
Rubber
|
| 10. |
844-6020
|
[4] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 11. |
9671714
|
[4] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 14. |
495-21031
|
[8] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 15. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 19. |
825-2408
|
[4] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 20. |
832-46406
|
[4] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
