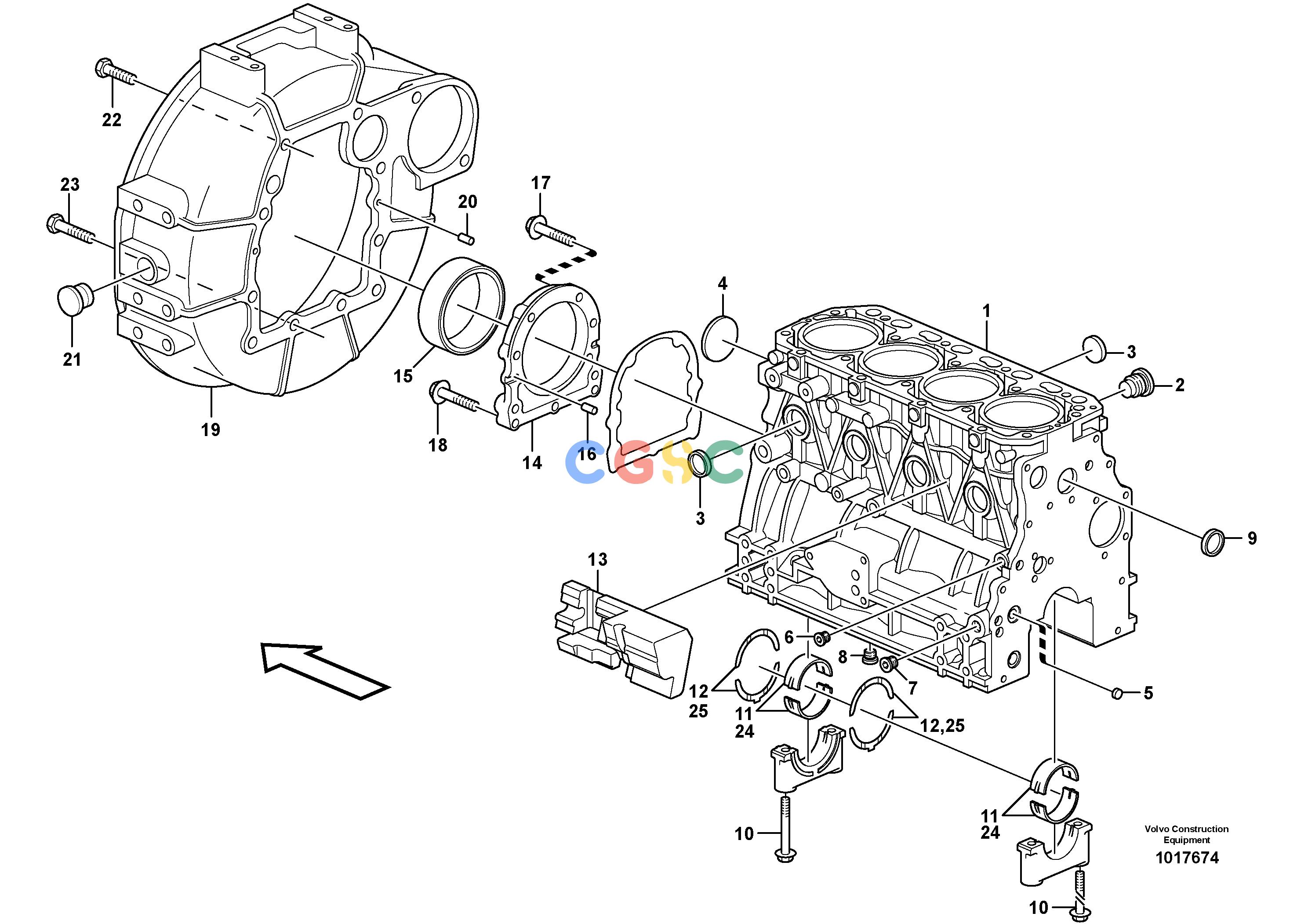

沃尔沃零件查询EC35C Cylinder blockNone11806938-11808572VOE11806938NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714616
|
[1] |
Cylinder block
|
|
| 1. |
VOE15080023
|
|
Block
|
|
| 2. |
VOE11713560
|
[1] |
Plug
|
|
| 3. |
VOE11714369
|
[8] |
Plug
|
|
| 4. |
VOE11713559
|
[1] |
Plug
|
|
| 5. |
VOE11713329
|
[2] |
Plug
|
|
| 6. |
VOE11713317
|
[1] |
Plug
|
|
| 7. |
VOE11713320
|
[2] |
Plug
|
|
| 8. |
VOE11713320
|
[1] |
Plug
|
|
| 9. |
VOE11713562
|
[1] |
Camshaft bushing
|
|
| 9. |
|
|
Bushing
|
|
| 10. |
VOE11713561
|
[10] |
Bolt
|
|
| 11. |
VOE15082457
|
[5] |
Bearing kit
|
STD SZ
|
| 11. |
|
|
Bearing Bushing
|
STD SZ
|
| 11. |
VOE15082457
|
|
Bearing kit
|
REPAIR PART
|
| 11. |
VOE15082494
|
|
Bearing arrangement
|
US = 0,25 MM
|
| 12. |
VOE11713573
|
[2] |
Thrust bearing
|
STD SZ
|
| 12. |
VOE15082453
|
|
Thrust washer
|
STD SZ
|
| 12. |
VOE15082449
|
|
Thrust Bearing
|
US = 0,25 MM
|
| 13. |
VOE11713587
|
[1] |
Spacer
|
|
| 14. |
VOE11714282
|
[1] |
Cover
|
|
| 15. |
VOE11713642
|
[1] |
Seal
|
|
| 16. |
VOE11714376
|
[2] |
Pin
|
|
| 17. |
VOE11713643
|
[6] |
Bolt
|
|
| 18. |
VOE11714281
|
[3] |
Flange screw
|
|
| 19. |
VOE11713633
|
[1] |
Housing
|
|
| 20. |
VOE11714376
|
[2] |
Pin
|
|
| 21. |
VOE11713372
|
[1] |
Cap
|
|
| 22. |
VOE11713373
|
[6] |
Bolt
|
|
| 23. |
VOE11713634
|
[4] |
Bolt
|
|
| 24. |
VOE11713590
|
[5] |
Main bearing shell
|
0.25 MM O SZ
|
| 25. |
VOE11713591
|
[2] |
Thrust washer
|
0.25 MM O SZ
|
