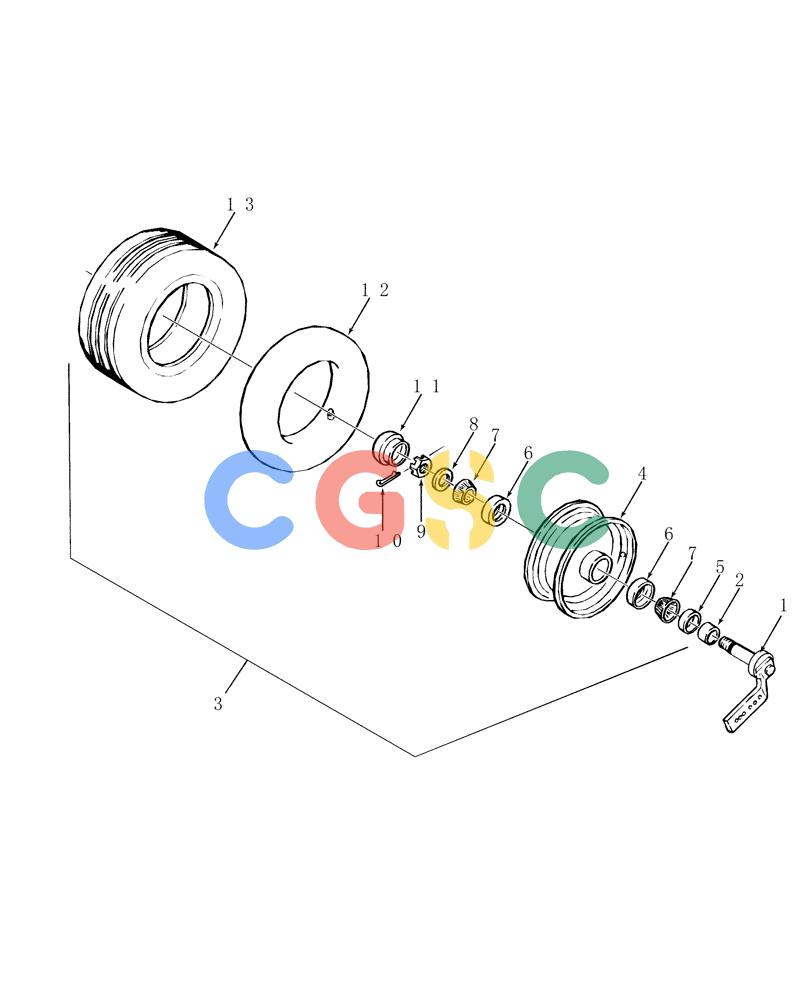

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (11.14) - WHEELS & TIRES, PICKUP, 4 PLY, 4.80/4.00 X 8 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
567 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
855698
|
[2] |
SUPPORT
|
NH
Bracket Superseded by part number: 87655955
|
| 2. |
86634544
|
[2] |
SEALING RING COLLAR
|
NH
|
| 3. |
86616347
|
[2] |
WHEEL ASSY
|
NH
Superseded by part number: 200734, 136378, 86616348, 132710, 132709, 25447, 136376
|
| 4. |
86616348
|
[2] |
WHEEL
|
NH
|
| 5. |
136376
|
[2] |
SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk
|
NH
Oil
|
| 6. |
572564R1
|
[4] |
BEARING CUP
|
IH
Tapered Roller Superseded by part number: 132709
|
| 7. |
D29266
|
[4] |
ROLLER BEARING,1" ID x 0.58"
|
CAS
Tapered Roller Superseded by part number: 132710
|
| 8. |
26130
|
[2] |
WASHER,26mm ID x 35mm OD x 1.7mm Thk
|
NH
Special, .060" Thk
|
| 9. |
603373
|
[2] |
JAM NUT,Slotted, 1" - 14, Gr 2
|
NH
Jam, G2, 1"-14 Superseded by part number: 143183
|
| 10. |
87398
|
[2] |
COTTER PIN,3/16" OD x 1-1/4" OAL
|
NH
|
| 11. |
200734
|
[2] |
HUB CAP
|
NH
|
| 12. |
25447
|
[2] |
TIRE TUBE
|
NH
Inner, 4.00 - 8
|
| 13. |
136378
|
[2] |
TYRE/TIRE
|
NH
4.80/4.00 x 8, 4 Ply, Tubeless
|
