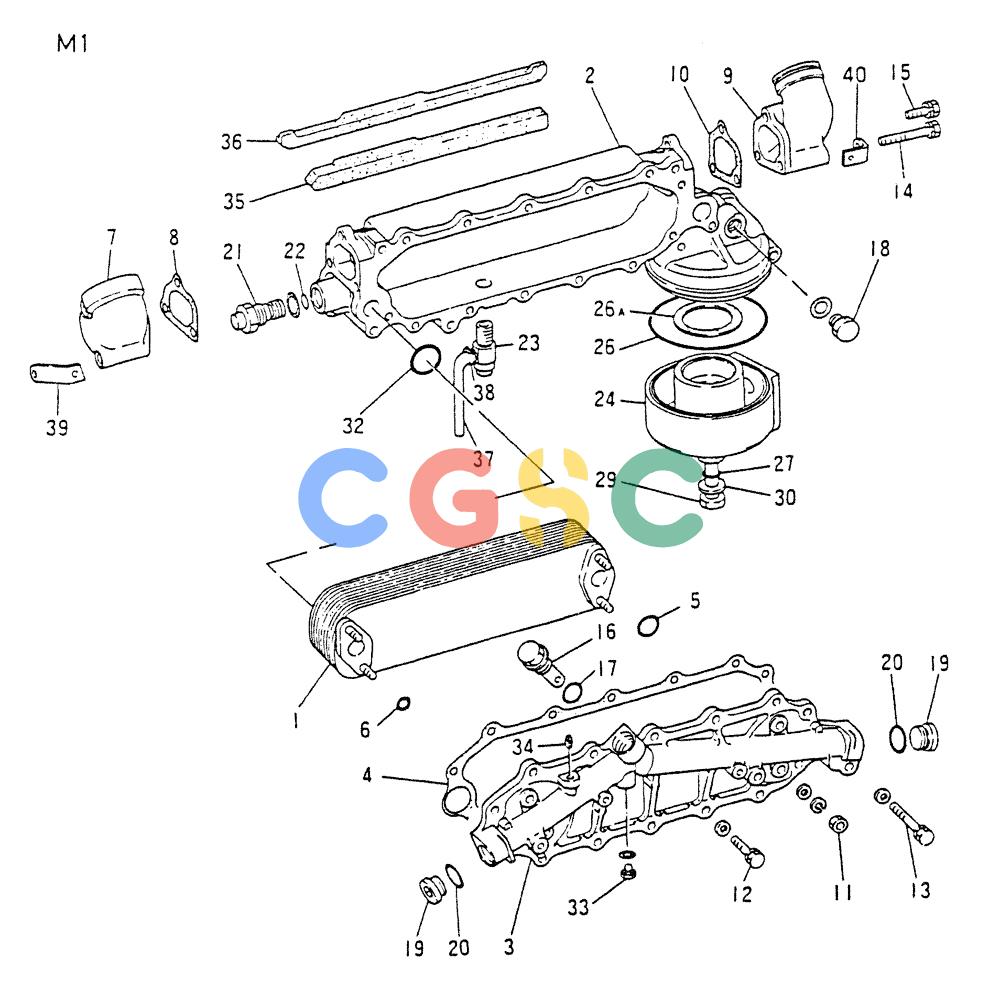

| 1-40. | VAME060426 | [1] | OIL COOLER & FILTER ASSY (M1 ONLY), Start Serial: 8509 | |
| 1-40. | VAME064408 | [1] | COOLER ASSY OIL COOLER & FILTER ASSY (M0), Years: -01-AUG-85 | COOLER ASSY OIL COOLER & FILTER ASSY (M0), Years: -01-AUG-85 |
| 1-40. | VAME069011 | [1] | OIL COOLER ASSEMBLY OIL COOLER ASSY (M1) | OIL COOLER ASSEMBLY OIL COOLER ASSY (M1) |
| 1. | VAME064244 | [1] | ELEMENT ELEMENT,O/C | ELEMENT ELEMENT,O/C |
| 2. | VAME064412 | [1] | CASE,O/C | |
| 3. | VAME064411 | [1] | COVER,OIL COOLER COVER,O/C (FOR M0 ONLY) | COVER,OIL COOLER COVER,O/C (FOR M0 ONLY) |
| 4. | VA3123930600 | [1] | GASKET | KOBGASKET (FOR M0 ONLY) |
| 5. | VAMF520582 | [2] | O-RING | KOBO-RING 30 (FOR M0 ONLY) Superseded by part number: VAMH035626 |
| 6. | VAMH035092 | [4] | O-RING | KOBO-RING (FOR M0 ONLY) Superseded by part number: VA0550700140 |
| 7. | VAME064413 | [1] | PIPE WATER INLET PIPE,INLET | PIPE WATER INLET PIPE,INLET |
| 8. | VAME064415 | [1] | GASKET | KOBGASKET,FR |
| 9. | VAME064414 | [1] | PIPE | KOBPIPE,OUTLET (FOR M0 ONLY) |
| 10. | VAME064416 | [1] | GASKET | KOBGASKET,RE (FOR M0 ONLY) |
| 11. | VAMF430006 | [4] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [4] | WASHER | KOBWASHER,SPG 10 |
| . . | VAMF450006 | [4] | NUT | KOBWASHER,PLAIN 10 Superseded by part number: 133247A1 |
| 12. | VAMF300005 | [14] | BOLT, W/WSR 10X30 | |
| 13. | VAMF300012 | [1] | BOLT BOLT,W/WSR 10X55 | BOLT BOLT,W/WSR 10X55 |
| 14. | VAMF300017 | [4] | BOLT,W/WSR 10X80 | |
| 15. | VAMF300004 | [2] | BOLT,W/WSR 10X28 | |
| 16. | VAME064227 | [1] | VALVE VALVE,BY-PASS | VALVE VALVE,BY-PASS |
| 17. | VAMH035093 | [1] | O-RING | KOBO-RING (FOR M1 ONLY) Superseded by part number: 77270608, 133289A1 |
| 16. | VA3123654500 | [1] | FILTER ASSY | KOBALARM,OIL BY-PASS (FOR M0 ONLY) |
| . . | VAME069408 | [1] | PLUG (FOR M1 ONLY) | |
| . . | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 19. | VAME064526 | [2] | PLUG | KOBPLUG |
| 20. | VAMH035093 | [2] | O-RING | KOBO-RING Superseded by part number: 77270608, 133289A1 |
| . . | VAME034545 | [1] | INTAKE VALVE GUIDE | KOBREGULATING VALVE ASSY Superseded by part number: VAME074455 |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 22. | VAMH035129 | [1] | O-RING | KOBO-RING |
| 23. | VA3170705201 | [1] | COCK | KOBCOCK,DRAIN Superseded by part number: 133149A1 |
| 24. | VAME064104 | [1] | CASE OIL FILTER CASE,OIL FILTER | CASE OIL FILTER CASE,OIL FILTER |
| . . | VAME068425 | [1] | COVER,FILTER | |
| 25-27. | VAME064356 | [1] | ENGINE OIL FILTER | KOBOIL FILTER ELEMENT KIT NICHIRO (FOR M0 ONLY) Superseded by part number: 2451U180-1 |
| . . | VAME054334 | [1] | ENGINE OIL FILTER | KOBOR WAKO (FOR M0 ONLY) Superseded by part number: 360410A1 |
| . . | VA3124053054 | [1] | ENGINE OIL FILTER | KOBOIL FILTER ELEMENT KIT,F/FLOW Superseded by part number: 360410A1 |
| 25. | NSS | [1] | NOT SOLD SEPARAT | CONELEMENT,FULL FLOW (FOR M0 ONLY) |
| 26. | VA3124050301 | [1] | GASKET | KOBPACKING,RUBBER Superseded by part number: 133259A1 |
| 26. | VAMH035158 | [1] | GASKET (FOR M1 ONLY) | |
| 27. | VAMH035025 | [1] | O-RING | KOBO-RING Superseded by part number: 133268A1 |
| 28. | VAME054082 | [1] | RETAINER | KOBRETAINER ASSY,FULL FLOW (FOR M0 ONLY) Superseded by part number: 133262A1 |
| 29. | VA3124050500 | [1] | BOLT | KOBBOLT,CTR (FOR M0 ONLY) |
| . . | VAMH000605 | [1] | (FOR M1 ONLY) | |
| 30. | VA3124053900 | [1] | WASHER | KOBWASHER,CTR BOLT (FOR M0 ONLY) |
| . . | VA3124057500 | [1] | (FOR M1 ONLY) | |
| 31. | VAMF665002 | [1] | PLUG | KOBPLUG 10 (FOR M0 ONLY) Superseded by part number: 133271A1 |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 (FOR M0 ONLY) Superseded by part number: VAF420210000 |
| 32. | VAMH035154 | [2] | O-RING | KOBO-RING |
| 33. | VAMS656030 | [1] | CONNECTOR (FOR M0 ONLY) | |
| . . | VAMF665002 | [1] | PLUG | KOBPLUG 10 (FOR M1 ONLY) Superseded by part number: 133271A1 |
| 34. | VAMH037133 | [1] | HYD CONNECTOR | KOBELBOW (FOR M0 ONLY), Start Year: 01-SEP-85 |
| . . | VAMF665141 | [1] | PLUG TAPER PLUG,TAPER PT1/8 (FOR M0 ONLY), Years: -01-SEP-85 | PLUG TAPER PLUG,TAPER PT1/8 (FOR M0 ONLY), Years: -01-SEP-85 |
| 35. | VA3123932100 | [1] | RUBBER SLEEVE | KOBRUBBER,B |
| 36. | VA3123932200 | [1] | RUBBER SLEEVE | KOBRUBBER,A |
| 37. | VA3110704800 | [1] | PIPE DRAIN PIPE,DRAIN COCK | PIPE DRAIN PIPE,DRAIN COCK |
| 38. | VAMS666040 | [1] | CLAMP | KOBCLAMP |
| 39. | VAME930207 | [1] | STAY | |
| 40. | VAME930035 | [1] | STAY | |
