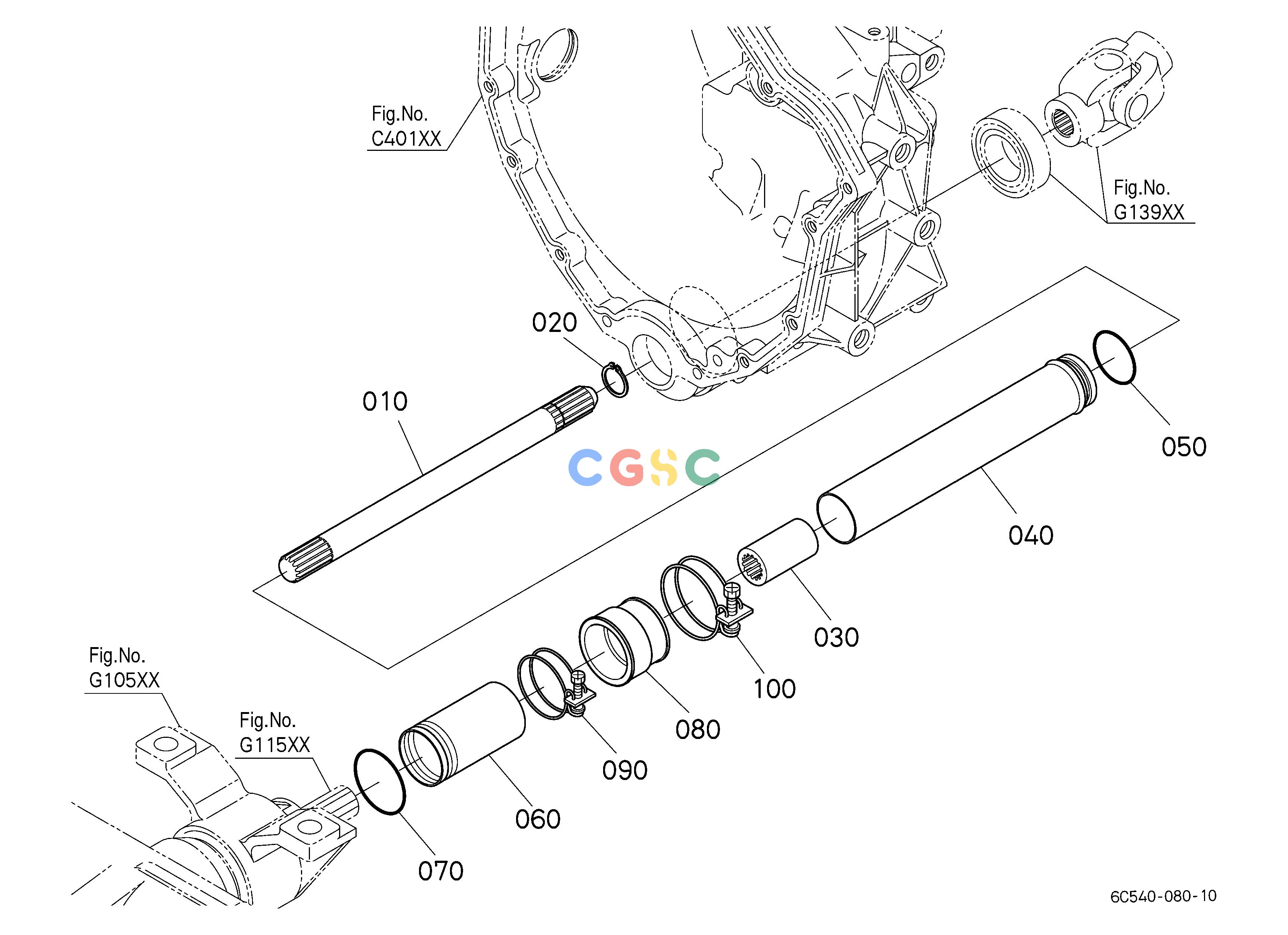

久保田零件查询G13800 DRIVE SHAFT (FRONT) FRONT AXLEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
177 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C24213950
|
[1] |
SHAFT,FRONT DRIVE
|
1.5400(lbs); 0.700
|
| 020. |
0461200200
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 030. |
6C05014520
|
[1] |
COUPLING
|
0.2178(lbs); 0.099
|
| 040. |
6C24213970
|
[1] |
COVER,REAR
|
0.5060(lbs); 0.230
|
| 050. |
0481606330
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 060. |
6C20013980
|
[1] |
COVER,FRONT
|
0.2200(lbs); 0.100
|
| 070. |
0481606370
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 080. |
3741057630
|
[1] |
JOINT,PIPE
|
0.0770(lbs); 0.035
|
| 090. |
6795558270
|
[1] |
CLAMP,HOSE
|
0.0550(lbs); 0.025
|
| 100. |
6795558260
|
[1] |
BAND,AIR CLEANER
|
0.0616(lbs); 0.028
|
