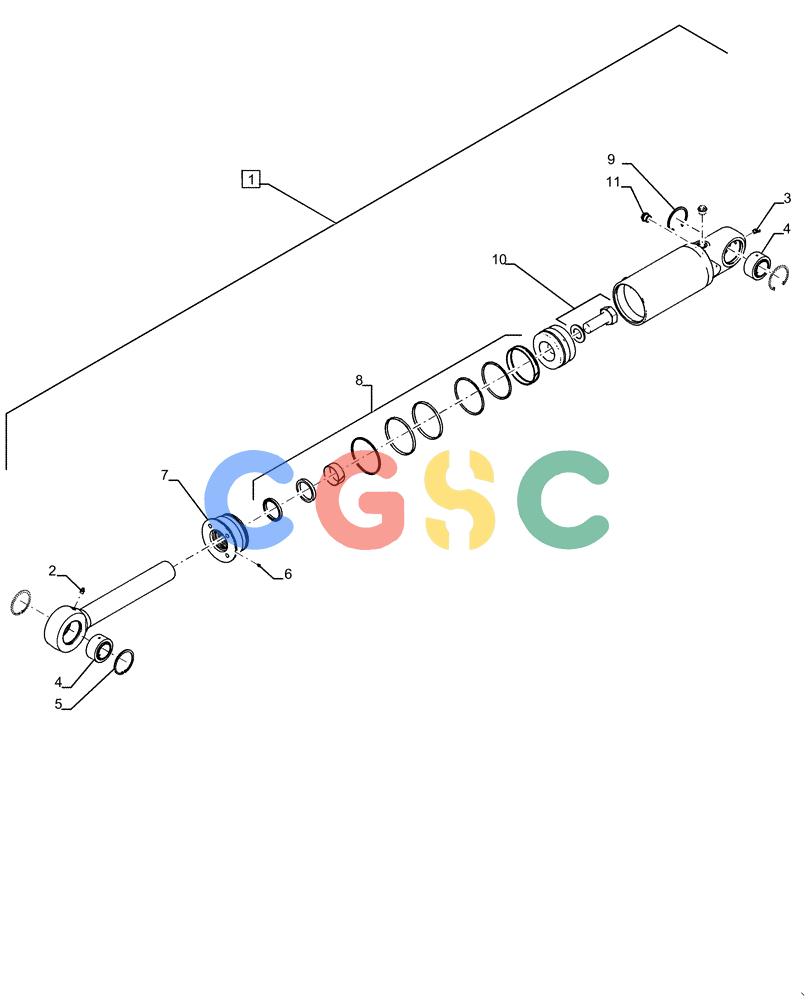

纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (35.741.AJ[03]) - LIFT CYLINDER 127.0 X 63.5MM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
760 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47446374 | [1] | HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 148.4mm Stroke | BURTilt 127.0 x 63.3mm Incl 2 - 11 |
| 1. | 47446374R | [1] | REMAN-HYD CYLINDER | BURTilt |
| 1. | 47446374C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 2. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 3. | 219-36 | [1] | LUBE NIPPLE,45º, 1/8" NPT x 7/8" lg | CAS Superseded by part number: 80717 |
| 4. | D23601 | [2] | HOUSING | CAS Superseded by part number: 86000739 |
| 5. | 100-21315 | [2] | SNAP RING,3.156", Int, #315 | CAS Superseded by part number: 9670291 |
| 6. | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | CAS Superseded by part number: 86642312 |
| 7. | 84205602 | [1] | GLAND | BUR |
| 8. | 84479824 | [1] | SEAL KIT | BUR |
| 9. | 49477 | [2] | RING, SNAP | NNA Superseded by part number: 100-21315, 100-21315, NLS |
| 10. | 86982443 | [1] | SPECIAL BOLT | BUR |
| 11. | 353-780 | [2] | PLUG,Sltd Hd, 7/8"-14, w/O-Ring | CAS Superseded by part number: 86625121 |
