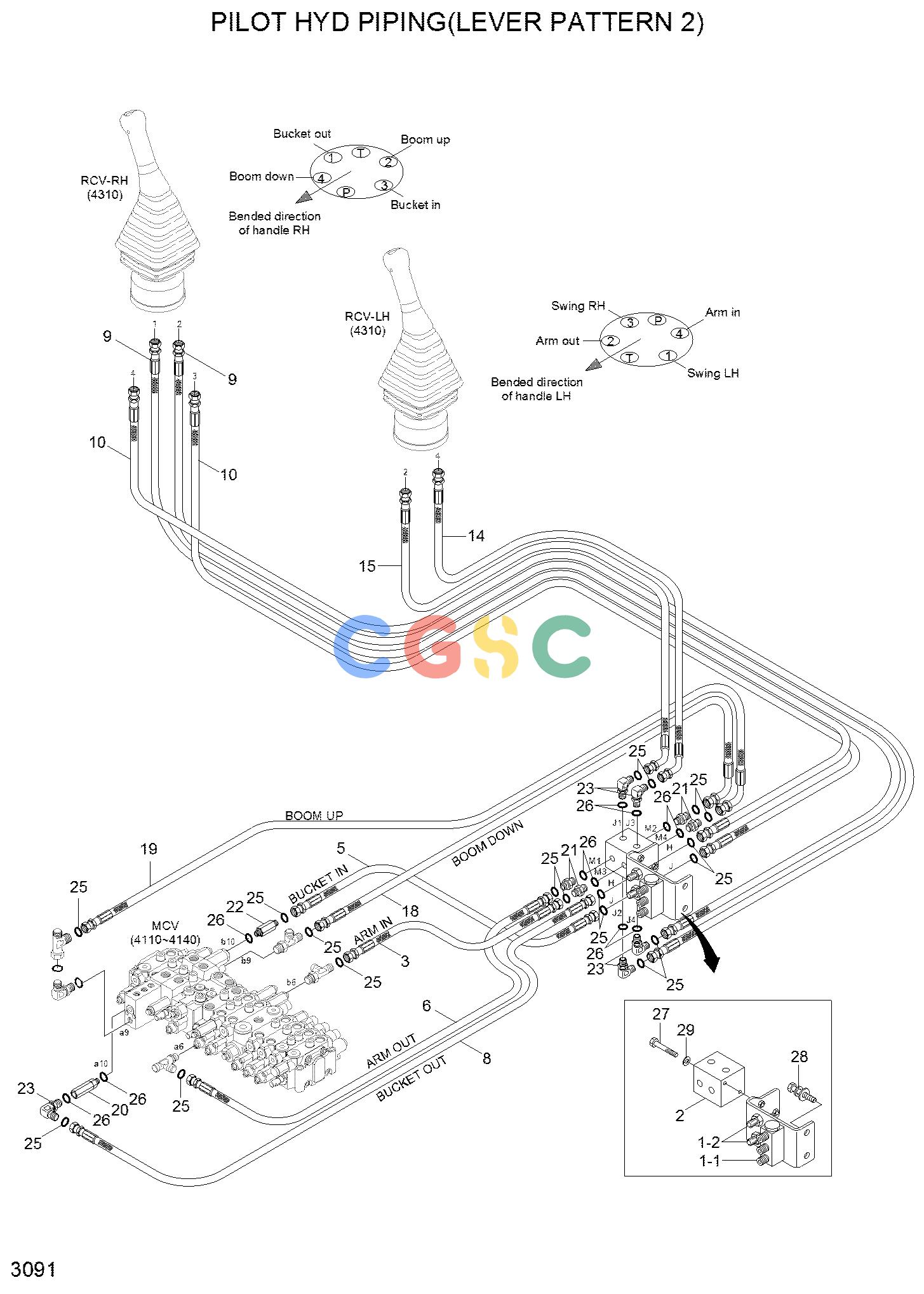

现代零件查询R55W-7A PILOT HYD PIPING(LEVER PATTERN 2)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
725 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
31M8-21060
|
[1] |
TERMINAL ASSY
|
|
| 1-1. |
31N6-25030
|
[1] |
SHUTTLE-5 PORT
|
|
| 1-2. |
X540-120001
|
[2] |
CONNECTOR-ORFS
|
|
| 2. |
31N6-22050
|
[1] |
SELECTOR VALVE
|
|
| 3. |
P910-042008
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 4. |
P910-042012
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 5. |
P910-042013
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 6. |
P910-042020
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 7. |
P910-042024
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 8. |
P910-042026
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 9. |
P910-042037
|
[2] |
HOSE ASSY-ORFS 0X0
|
|
| 10. |
P910-042038
|
[2] |
HOSE ASSY-ORFS 0X0
|
|
| 11. |
P910-042052
|
[2] |
HOSE ASSY-ORFS 0X0
|
|
| 12. |
P910-042058
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 13. |
P910-042060
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 14. |
P920-042024
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 15. |
P920-042025
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 16. |
P920-042032
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 17. |
P920-042042
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 18. |
P930-042012
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 19. |
P930-042022
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 20. |
31E9-22120
|
[1] |
CONNECTOR
|
|
| 21. |
X500-110001
|
[4] |
CONNECTOR-ORFS
|
|
| 22. |
X511-104513
|
[1] |
CONNECTOR-LONG,ORFS
|
|
| 23. |
X520-110001
|
[5] |
ELBOW-90,ORFS
|
|
| 24. |
X850-515100
|
[4] |
ELBOW-90,SWIVEL,ORFS
|
|
| 25. |
S621-011001
|
[18] |
O-RING
|
|
| 26. |
S631-011004
|
[11] |
O-RING
|
|
| 27. |
S015-080806
|
[2] |
BOLT-HEX
|
|
| 28. |
S037-102526
|
[2] |
BOLT-W/WASHER
|
|
| 29. |
S411-080006
|
[2] |
WASHER-SPRING
|
|
