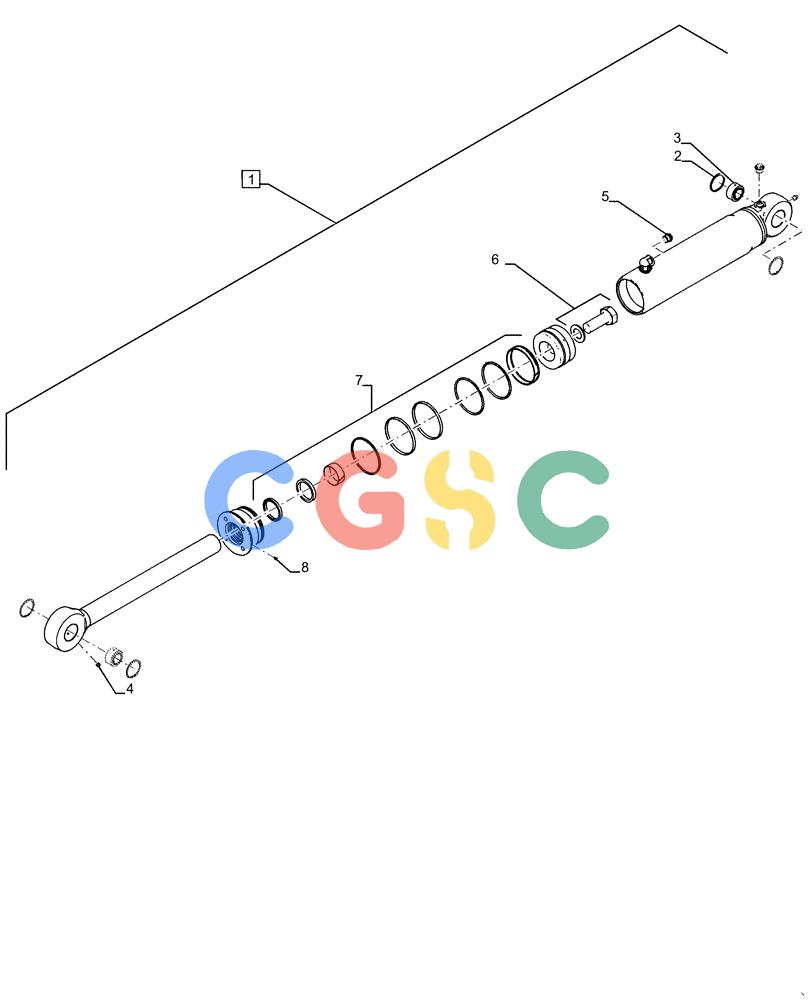

纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (35.741.AJ[05]) - ANGLE, CYLINDER 114.3 X 63.5MM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
859 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84402336 | [1] | LIFT CYLINDER,Double Acting, 63.5mm Rod, 502.7mm Stroke | BUR114.3 x 63.5 Incl 2 - 8 |
| 2. | 100-21315 | [4] | SNAP RING,3.156", Int, #315 | CAS Superseded by part number: 9670291 |
| 3. | D23601 | [2] | HOUSING | CAS Superseded by part number: 86000739 |
| 4. | 219-1 | [2] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 5. | 353-780 | [2] | PLUG,Sltd Hd, 7/8"-14, w/O-Ring | CAS Superseded by part number: 86625121 |
| 6. | 86982443 | [1] | SPECIAL BOLT | BUR |
| 7. | 84479825 | [1] | SEAL KIT | BUR |
| 8. | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | CAS Superseded by part number: 86642312 |
