沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Electrical SystemControl Unit and ConnectorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
984 次

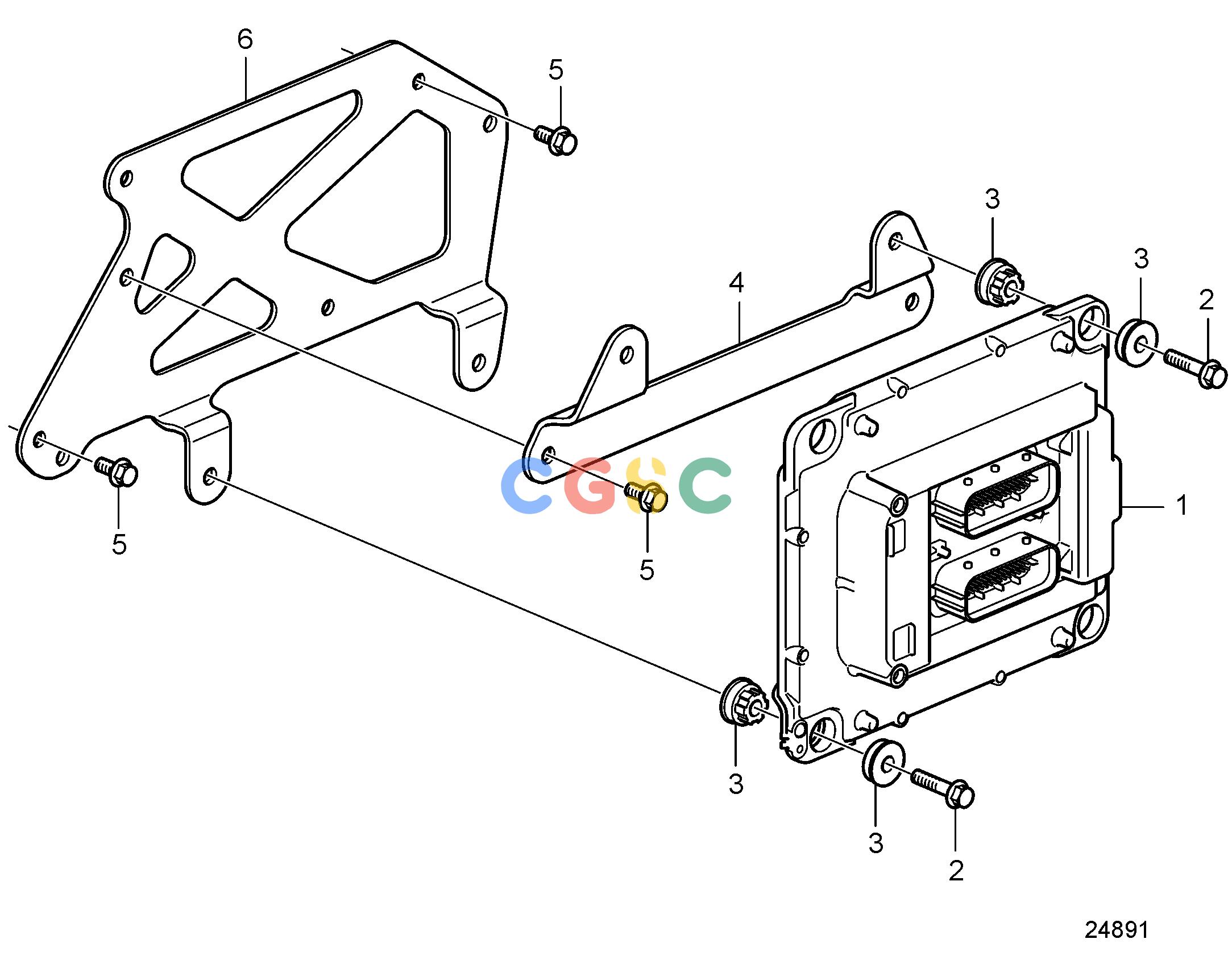

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20959036
|
[1] |
Control unit, not programmed
|
|
| 1. |
3586269
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 1. |
3586268
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 2. |
994446
|
[4] |
Flange screw
|
|
| 3. |
3095161
|
[4] |
Rubber cushion
|
|
| 4. |
3847984
|
[1] |
Bracket
|
Replaced by 22904343
|
| 4. |
22904343
|
[1] |
Bracket
|
|
| 5. |
984733
|
[6] |
Flange screw
|
|
| 6. |
3889802
|
[1] |
Bracket
|
Replaced by 22901741
|
| 6. |
22901741
|
[1] |
Bracket
|
Use 2pcs 990940 flange nut at pos 5
|
