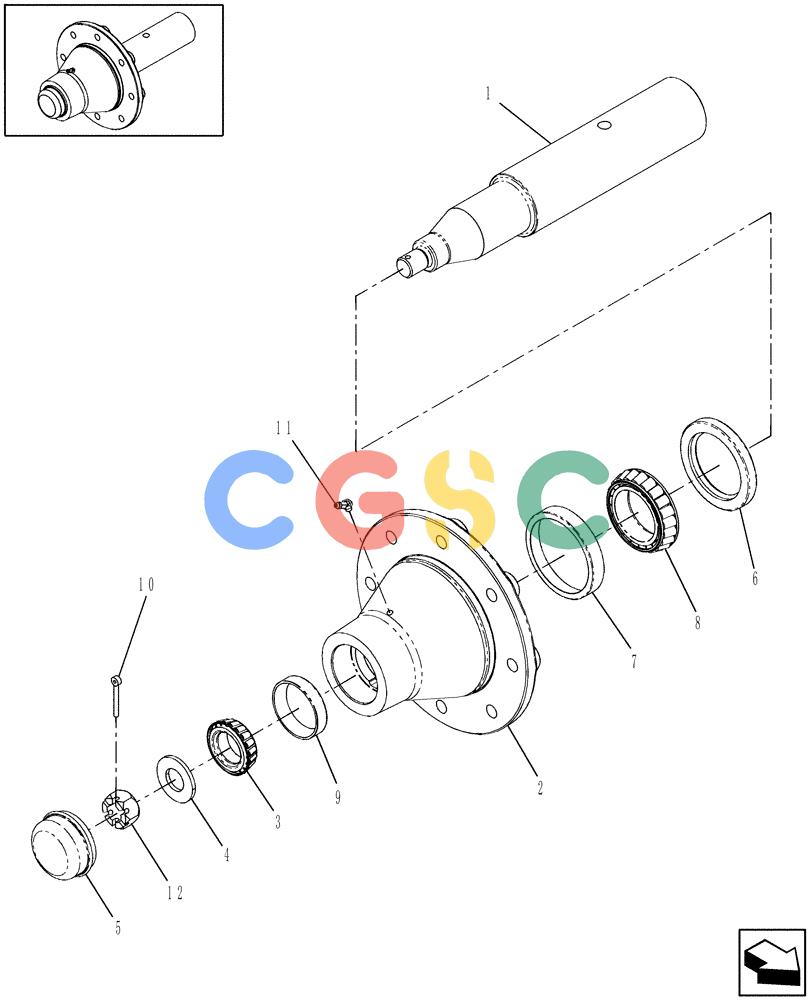

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (11.42) - WHEEL HUB, USED WITH 21.5 X W18C WHEEL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87485977
|
[1] |
SPINDLE
|
NH
|
| 2. |
87491884
|
[1] |
HUB
|
NH
|
| 3. |
86516468
|
[1] |
ROLLER BEARING
|
ZED
Superseded by part number: 618023R91
|
| 4. |
257163
|
[1] |
WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk
|
NH
|
| 5. |
714610
|
[1] |
FLANGE COVER CAP
|
NH
|
| 6. |
131526
|
[1] |
OIL SEAL
|
BEL
|
| 7. |
49029
|
[1] |
BEARING CUP
|
NH
Superseded by part number: 105497H
|
| 8. |
166258
|
[1] |
BEARING CONE,2.25" ID x 0.864"
|
NH
|
| 9. |
86516467
|
[1] |
BEARING CUP,65.08mm OD x 13.97mm W
|
ZED
|
| 10. |
80754
|
[1] |
COTTER PIN,3/16" OD x 1-1/2" OAL
|
NH
|
| 11. |
87569
|
[1] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
|
| 12. |
280172
|
[1] |
SLOTTED NUT,7/8"-14
|
NH
|
