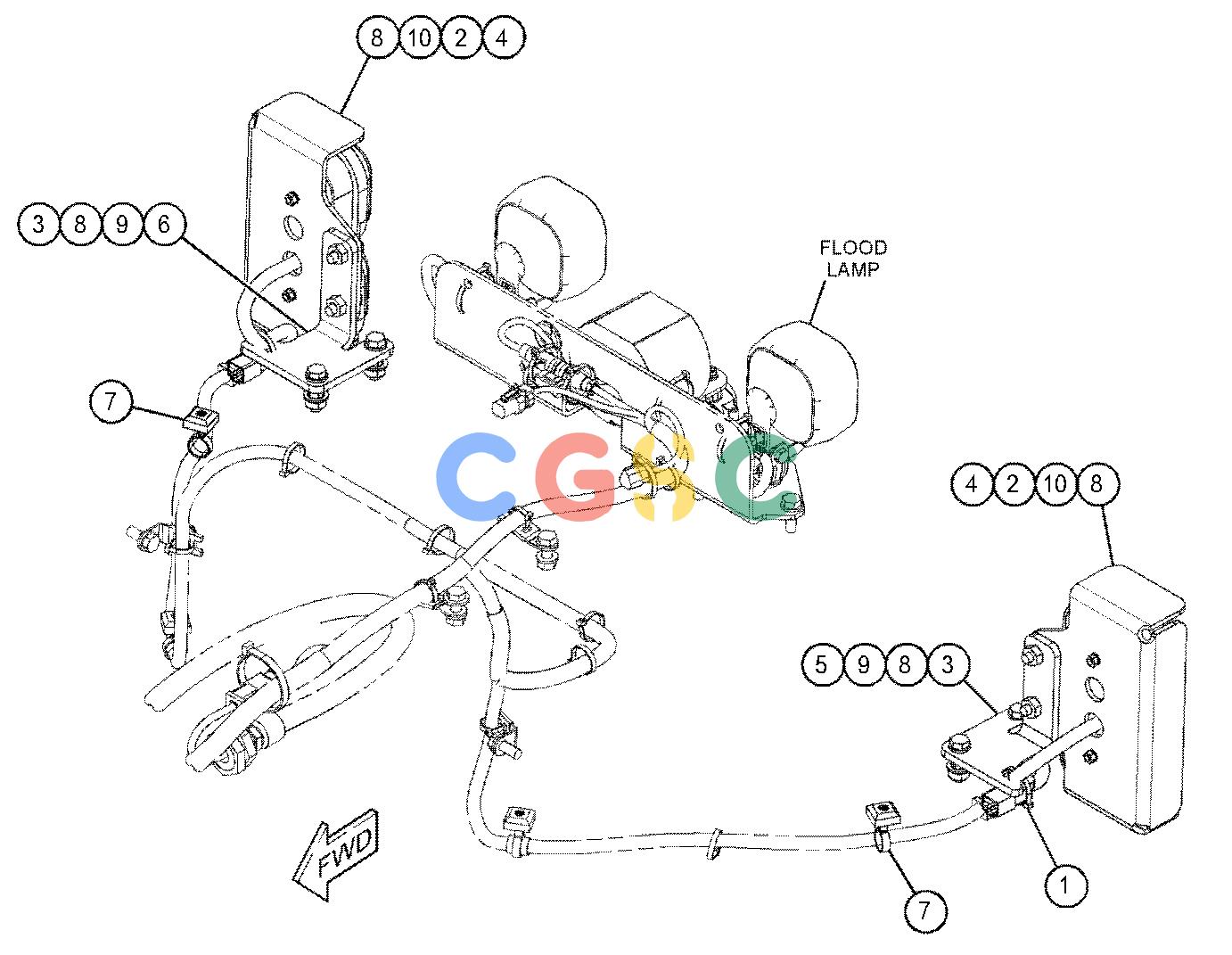

卡特零件查询（725C） 454-6963: WIRING GP-LIGHTING
广数供应链运营团队, 14 02月, 2025，浏览：
265 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 510-1509 | [2] | LAMP GP-SIGNAL(24-VOLT)(STOP, TAIL, TURN) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 3. | 380-8803M | [4] | NUT-INSERT(M10X1.5-THD) | |
| 4. | 444-7054 | [2] | BRACKET | |
| 5. | 444-7252 | [1] | PLATE AS | |
| 6. | 444-7254 | [1] | PLATE AS | |
| | | | (EACH PLATE AS INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 7. | 393-1829 | [2] | TIE-CABLE | |
| 8. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 10. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
