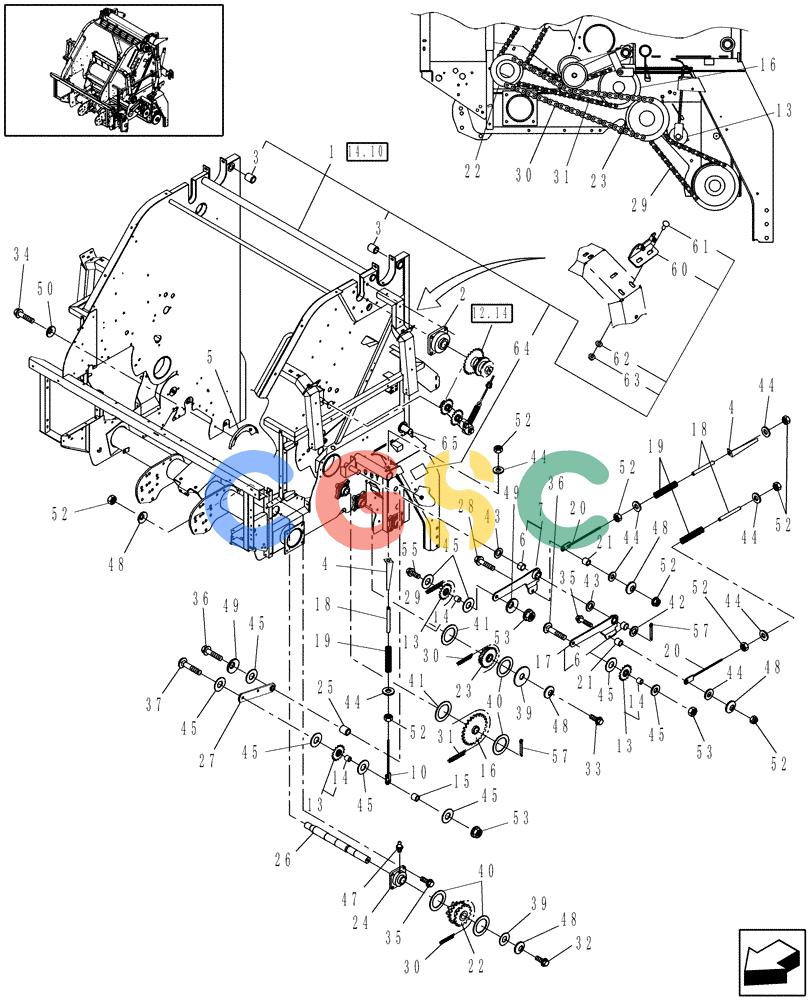

| 1. |
87630609
|
[1] |
FRAME
|
NH
Main, Twine, Includes: Ref. 64
|
| 1. |
87619699
|
[1] |
FRAME
|
NH
Main, Twine/Net, Includes: Ref. 64
|
| 2. |
86590752
|
[1] |
BEARING ASSY
|
NH
Superseded by part number: 87660333
|
| 3. |
86514470
|
[2] |
BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L
|
NH
|
| 4. |
86643093
|
[2] |
INDICATOR
|
NH
|
| 5. |
86637198
|
[2] |
HALF-DISC
|
NH
|
| 6. |
27639
|
[2] |
BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L
|
NH
|
| 7. |
86632214
|
[1] |
ARM
|
NH
Includes: Ref. 6 Superseded by part number: 87033334
|
| 10. |
87714825
|
[1] |
BOLT,M12 x 1.75 x 362mm L
|
PA
|
| 13. |
87050058
|
[3] |
SPROCKET
|
NH
13T, Plastic
|
| 13. |
66614
|
[3] |
SPROCKET,RC80, 13T
|
NH
13T, Steel Superseded by part number: 84401598
|
| 14. |
144819C91
|
[1] |
BEARING
|
IH
Superseded by part number: 149261C91
|
| 15. |
86529376
|
[1] |
SPACER
|
NH
|
| 16. |
86610108
|
[1] |
SPROCKET
|
NH
25 T, RC 80 Superseded by part number: 87664055
|
| 17. |
86632217
|
[1] |
LIFT ARM
|
NH
Superseded by part number: 87033674
|
| 18. |
86637258
|
[3] |
TUBE,19.05 mm OD x 228.60 mm L
|
NH
|
| 19. |
86618710
|
[3] |
SPRING,1-3/8" OD x 8-5/8" L
|
NH
Compression, 8-5/8" L
|
| 20. |
86633971
|
[2] |
BOLT,M12 x 1.75 x 377.5mm L
|
NH
Linkage, M12 x 1.75 Threaded
|
| 21. |
45455
|
[2] |
SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk
|
NH
17/32" ID x 1" OD x 3/8"
|
| 22. |
86613345
|
[1] |
SPROCKET
|
NH
Triple, (1) 13T, (2) 18T, RC 80 Superseded by part number: 87664054
|
| 23. |
86613346
|
[1] |
SPROCKET
|
NH
Double, (1) 25T, (1) 17T, RC 80 Superseded by part number: 87664058
|
| 24. |
86609558
|
[1] |
BEARING ASSY,45mm ID
|
NH
|
| 25. |
86614030
|
[1] |
SPACER
|
NH
30mm
|
| 26. |
86604822
|
[1] |
SHAFT
|
NH
|
| 27. |
86611436
|
[1] |
ARM
|
NH
|
| 28. |
120046
|
[1] |
CARRIAGE BOLT,M16 x 60mm, Cl 8.8
|
ZED
Superseded by part number: 87552612
|
| 29. |
86549269
|
[1] |
CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm
|
PA
Roller, RC 80, 64 Pitches, Includes: Ref. 58
|
| 30. |
9804061
|
[1] |
CHAIN,80, 84 Links x 25.4mm = 2133.6mm
|
NH
Roller, RC 80, 84 Pitches, , Includes: Ref. 58
|
| 31. |
87622422
|
[1] |
CHAIN (AG),80, 65 Links x 25.4mm = 1651mm
|
NH
RC 80, 65 Total Pitches, Includes: Ref. 51 & 58
|
| 32. |
614-12035
|
[1] |
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
|
IH
|
| 33. |
614-12030
|
[1] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 34. |
614-10020
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 35. |
614-12040
|
[5] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 36. |
614-16050
|
[1] |
BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 120090
|
| 37. |
814-16070
|
[2] |
BOLT,Hex, M16 x 2 x 70mm, Cl 8.8
|
CAS
Superseded by part number: 120092
|
| 38. |
811-12040
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 328754
|
| 39. |
694478
|
[3] |
WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk
|
NH
Special, Hardened
|
| 40. |
58821
|
[1] |
WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk
|
NH
Special
|
| 41. |
86619043
|
[1] |
WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk
|
NH
|
| 42. |
27696
|
[1] |
WASHER,1.281" ID x 2" OD x .060" Thk
|
NH
Special Superseded by part number: 675
|
| 43. |
142656
|
[1] |
WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk
|
NH
1-1/4"
|
| 44. |
495-21056
|
[8] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| 45. |
495-11066
|
[1] |
WASHER,5/8", SAE
|
CAS
Superseded by part number: 87365
|
| 46. |
27697
|
[1] |
WASHER,16.66mm ID x 27mm OD x 1.52mm Thk
|
NH
Superseded by part number: 87642936
|
| 47. |
219-1
|
[1] |
LUBE NIPPLE,1/8" - 27 NPTF
|
CAS
Superseded by part number: 80710
|
| 48. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 49. |
140048
|
[1] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 50. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 51. |
86977428
|
[1] |
CONNECTING LINK
|
PA
Offset Superseded by part number: 241-1718
|
| 52. |
825-1412
|
[12] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 53. |
832-46416
|
[3] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 55. |
814-16060
|
[1] |
BOLT,Hex, M16 x 2 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 323866
|
| 57. |
432-1232
|
[2] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Superseded by part number: 87400
|
| 58. |
9620569
|
[1] |
CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L
|
NH
Superseded by part number: 241-1418
|
| 60. |
87037410
|
[4] |
HINGE
|
PA
Lower, Square-Shaped
|
| 61. |
308761
|
[8] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 62. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 63. |
825-2408
|
[8] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 64. |
86631518
|
[2] |
DANGER DECAL
|
NH
English
|
| 64. |
86632801
|
[2] |
DECAL
|
NH
DANGER, French
|
| 65. |
86636753
|
[1] |
PIN
|
NH
Tailgate Latch Pivot
|
