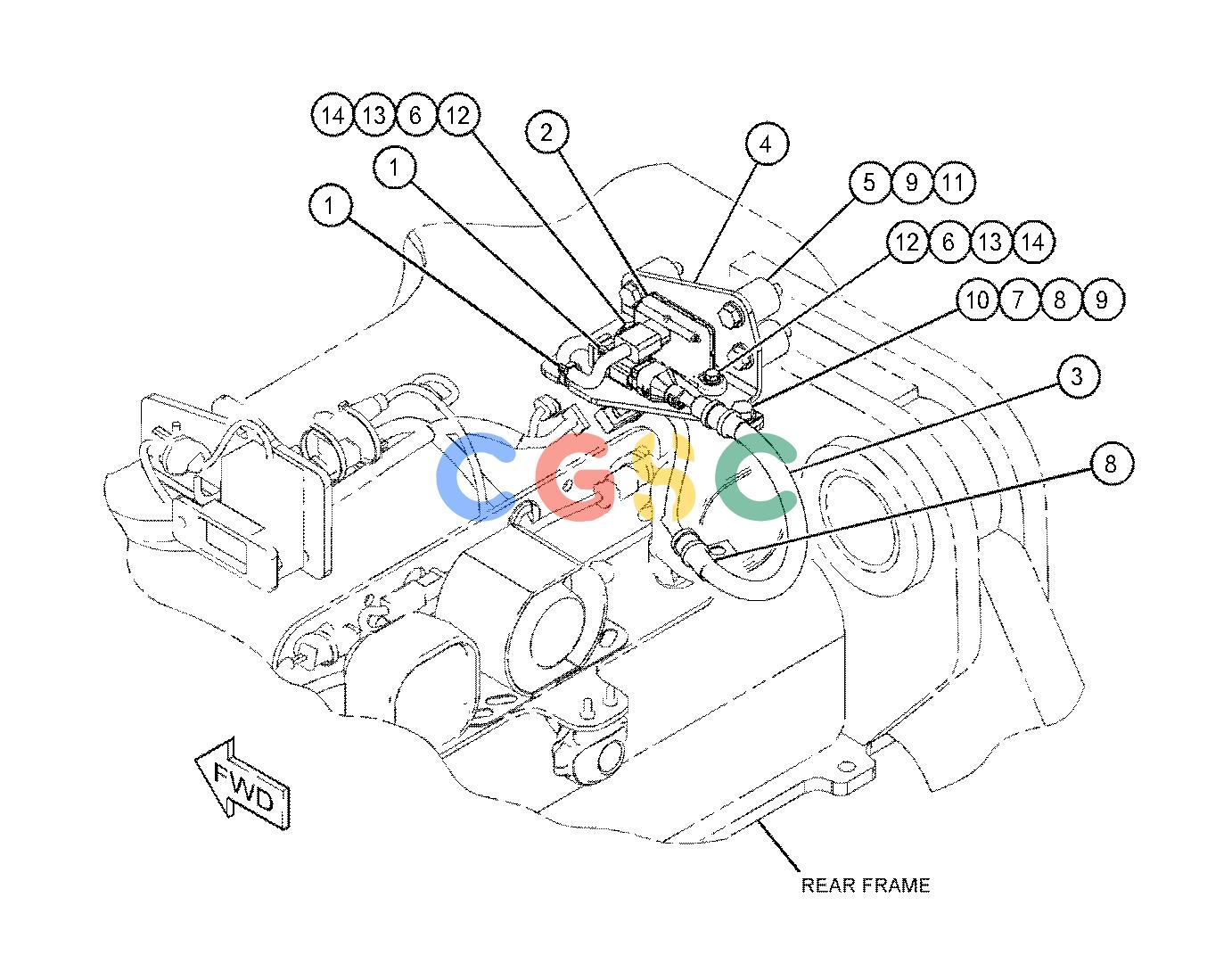

卡特零件查询（725C） 463-4019: SENSOR & MTG GP-PAYLOAD
广数供应链运营团队, 14 02月, 2025，浏览：
665 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 333-8538 | [1] | SENSOR AS-INERTIAL(ACCELERATION, ANGLE) | |
| | 386-0444 | [1] | HARNESS AS-SENSOR(INCLINATION) | |
| | 9X-3401 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 112-4550E | | SLEEVE(20-CM) | |
| | 151-9275 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 3. | 463-4020Y | [1] | HARNESS AS-SENSOR(EJECTOR) | |
| 4. | 463-4947 | [1] | PLATE | |
| 5. | 298-2011 | [3] | SPACER(11X30X30-MM THK) | |
| 6. | 344-5673M | [2] | NUT(M6X1-THD) | |
| 7. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 8. | 344-6175 | [2] | CLIP | |
| 9. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 11. | 8T-4185M | [3] | BOLT(M10X1.5X50-MM) | |
| 12. | 8T-4971M | [2] | BOLT(M6X1X30-MM) | |
| 13. | 9X-2038 | [2] | WASHER(7X19X2-MM THK) | |
| 14. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
