沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Electrical SystemElectric System,Classifiable MCC SN1013644273-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
978 次

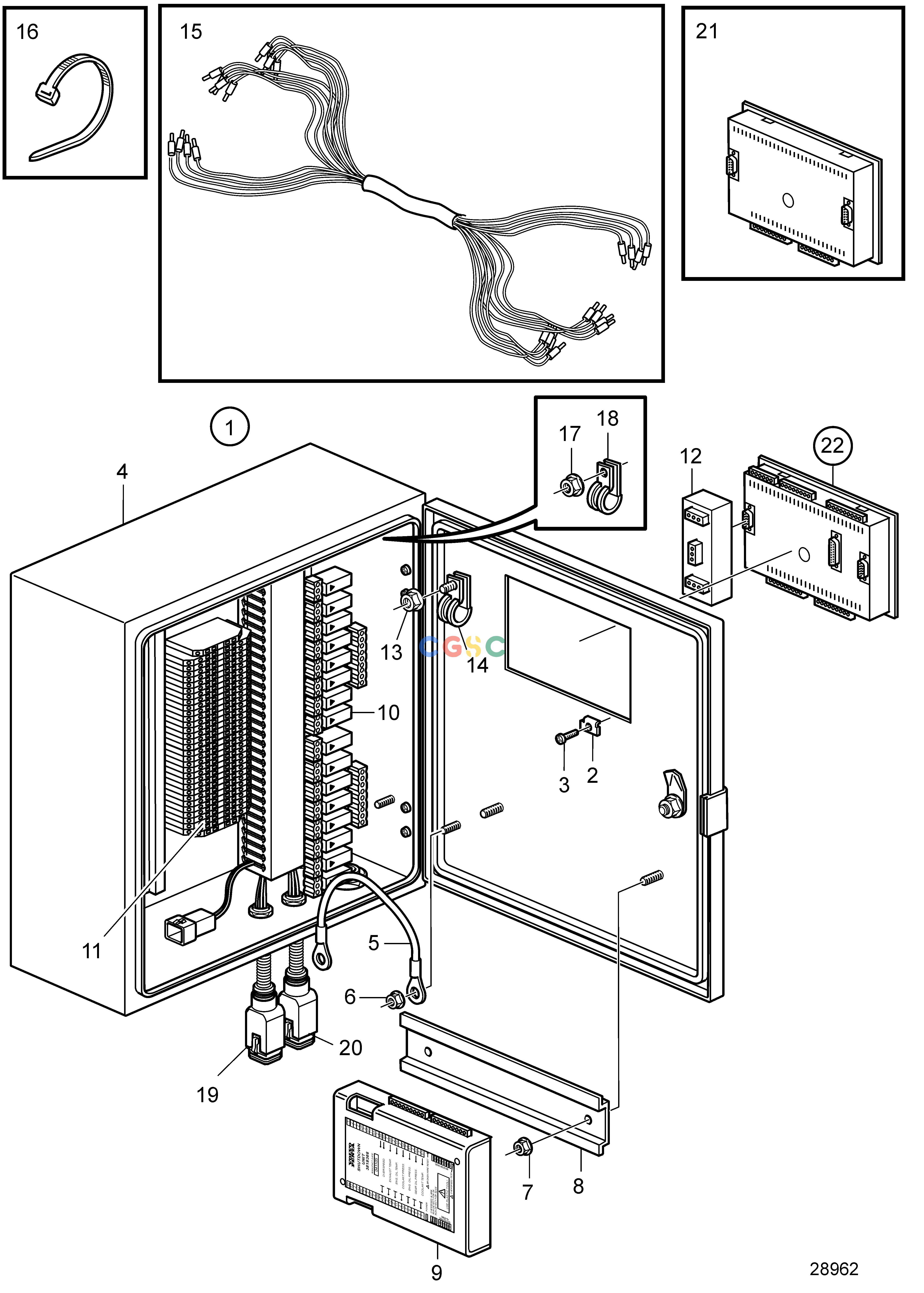

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22845783
|
[1] |
Box
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
21375492
|
[1] |
Box
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
22633376
|
[1] |
Electronic unit
|
|
| 10. |
3818362
|
[1] |
Relay unit
|
|
| 11. |
21350704
|
[1] |
Terminal block
|
|
| 12. |
3818364
|
[1] |
Electronic unit
|
Com Module
|
| 13. |
990938
|
[1] |
Flange nut
|
|
| 14. |
952633
|
[1] |
Clamp
|
|
| 15. |
21350702
|
[1] |
Wiring harness
|
|
| 16. |
948211
|
[13] |
Cable tie
|
|
| 17. |
990940
|
[1] |
Flange nut
|
|
| 18. |
945081
|
[1] |
Clamp
|
|
| 19. |
21353191
|
[1] |
Wiring harness
|
Connector A
|
| 20. |
|
|
|
Connector B
|
| 21. |
3888244
|
[1] |
Electronic unit
|
Remote Panel
|
| 22. |
3818237
|
[1] |
Control unit
|
MCU.Control Unit
|
