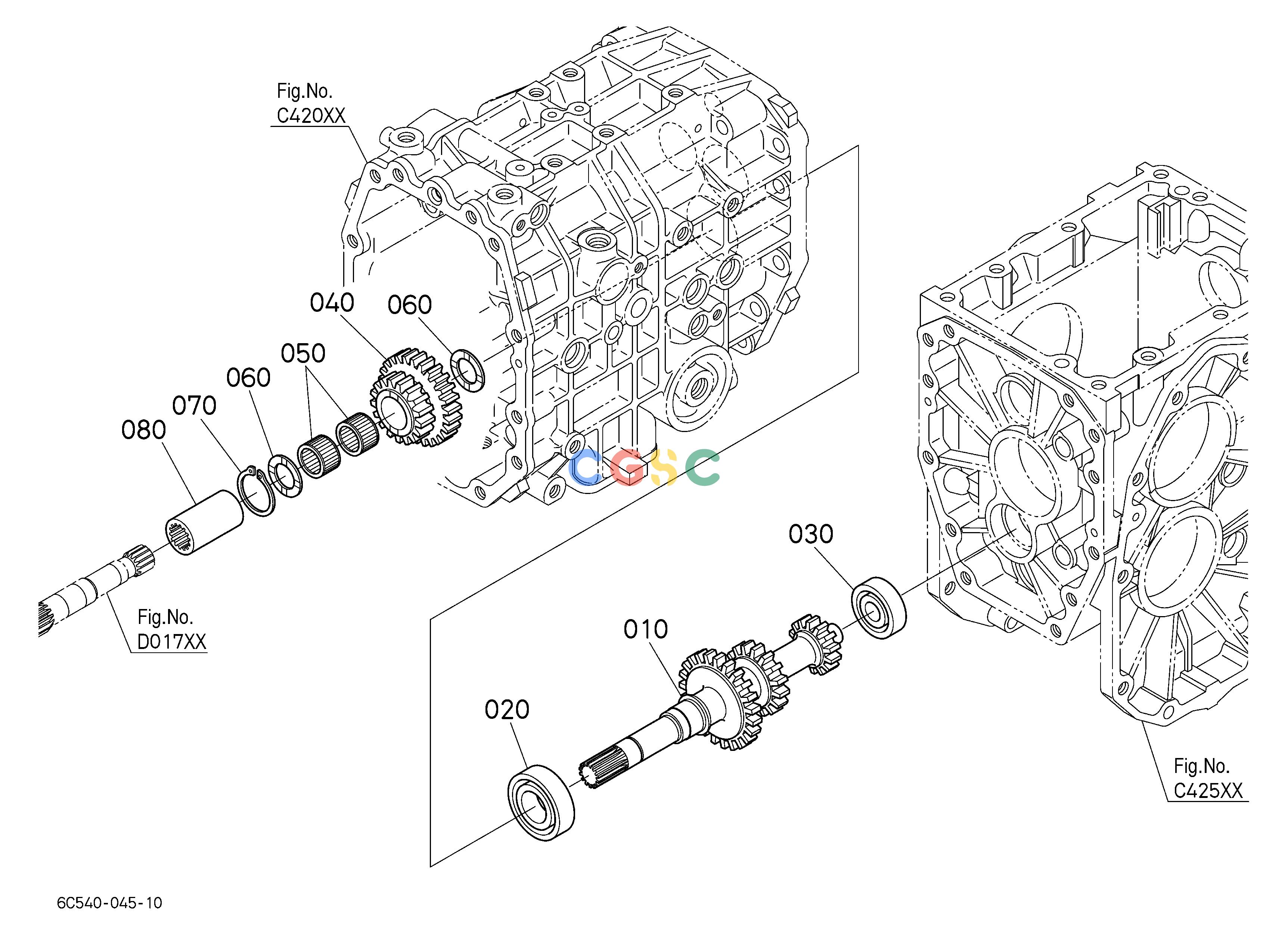

久保田零件查询D10800 RANGE GEAR SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54014710
|
[1] |
SHAFT(RANGE GEAR)
|
2.6400(lbs); 1.200
|
| 020. |
6C54014780
|
[1] |
BEARING,BALL(6205)
|
0.2530(lbs); 0.115
|
| 030. |
6C54014790
|
[1] |
BEARING,BALL(6302)
|
0.1672(lbs); 0.076
|
| 040. |
6C20014750
|
[1] |
GEAR,MID
|
0.8800(lbs); 0.400
|
| 050. |
6C20014770
|
[2] |
BEARING,NEEDLE
|
0.0330(lbs); 0.015
|
| 060. |
6223114770
|
[2] |
3RD SLAST COLLAR 2
|
0.0022(lbs); 0.001
|
| 070. |
0461200200
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 080. |
6C05014520
|
[1] |
COUPLING
|
0.2178(lbs); 0.099
|
