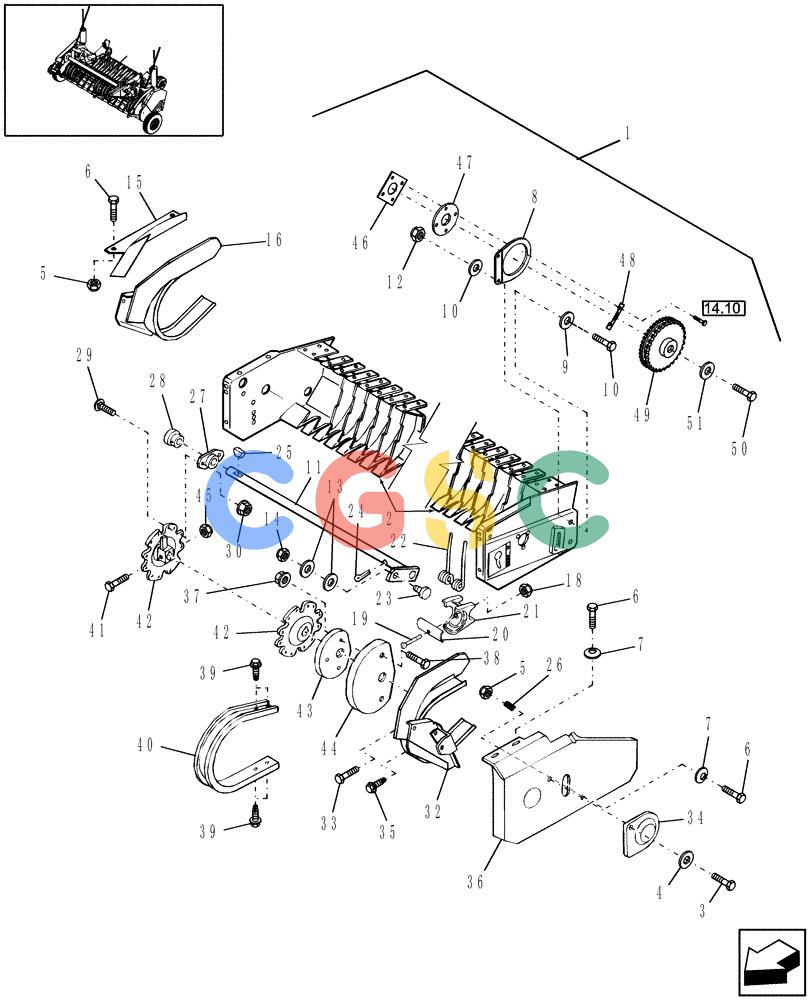

| 1. |
87037383
|
[1] |
PICK-UP
|
PA
Standard, Includes: Fig. 13.140 & 13.145
|
| 2. |
86633885
|
[1] |
PICK-UP
|
NH
Frame Superseded by part number: 87041294
|
| 3. |
614-8030
|
[1] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43128
|
| 4. |
495-11034
|
[1] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 5. |
832-46408
|
[1] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 6. |
120103
|
[3] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 7. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 8. |
86602047
|
[2] |
PIVOT PLATE
|
NH
Superseded by part number: 87660305
|
| 9. |
65319
|
[8] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 10. |
614-12030
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 11. |
87040501
|
[6] |
PIPE ASSY.
|
PA
|
| 12. |
832-46412
|
[4] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 13. |
244379
|
[12] |
WASHER,13.49mm ID x 19.05mm OD x 2.67mm Thk
|
NH
Special, Hardened
|
| 14. |
88130
|
[6] |
NUT,1/2"-20, GC
|
NH
|
| 15. |
86636752
|
[1] |
SHIELD
|
NH
|
| 16. |
86637153
|
[1] |
PLATE ASSY.
|
NH
Transition, RH
|
| 18. |
231-4145
|
[72] |
NUT,5/16"-18, GB
|
CAS
Superseded by part number: 280736
|
| 19. |
130891
|
[72] |
BOLT,Tine, 5/16" - 18 x 2"
|
NH
Special, Pickup Finger Superseded by part number: 87642989
|
| 20. |
134921
|
[72] |
BRACKET
|
NH
Pickup Tooth Superseded by part number: 87643386
|
| 21. |
86627654
|
[72] |
SPACER
|
NH
Tooth Superseded by part number: 84427925
|
| 22. |
87394242
|
[72] |
TORSION SPRING,Coiled, 2 Prong, 186.5mm L
|
NH
Pickup, Curved, Premium, Standard
|
| 22. |
87607074
|
[72] |
TINE
|
NH
Pickup, Curved, Economy, Optional
|
| 23. |
84350126
|
[6] |
CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L
|
NH
|
| 24. |
136521
|
[18] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
1/4" x 1-1/2"
|
| 25. |
87038548
|
[3] |
WOODRUFF KEY
|
PA
|
| 26. |
29840
|
[1] |
SPRING,Compression, 11.91mm OD x 25.4mm L
|
NH
|
| 27. |
54695
|
[18] |
BEARING HOUSING
|
NH
|
| 28. |
54770
|
[18] |
BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm
|
NH
Superseded by part number: 84330047
|
| 29. |
88682
|
[24] |
CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5
|
NH
|
| 30. |
231-5146
|
[24] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 31. |
638025
|
[12] |
FLANGE
|
NH
|
| 32. |
86637155
|
[1] |
PLATE ASSY.
|
NH
Transition, LH
|
| 33. |
614-10020
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 34. |
86619617
|
[1] |
SHIELD
|
NH
Cover
|
| 35. |
690341
|
[2] |
SELF-TAP SCREW
|
NH
Flg, USR, 5/16"-18 x 5/8"
|
| 36. |
86618401
|
[1] |
SHIELD
|
NH
Pickup
|
| 37. |
825-51410
|
[40] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 38. |
905-10025
|
[3] |
BOLT,Hex Flg, M10 x 25mm
|
CAS
Superseded by part number: 274251
|
| 39. |
677808
|
[104] |
SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"
|
NH
HWH, 1/4"-20 x 5/8"
|
| 40. |
87041202
|
[23] |
GUARD ASSY.
|
PA
Pickup
|
| 41. |
120071
|
[3] |
BOLT,Hex, M10 x 65, 8.8
|
NH
|
| 42. |
86635065
|
[3] |
DISC
|
NH
Finger
|
| 43. |
86636873
|
[1] |
CAM
|
NH
Inner
|
| 44. |
86636761
|
[1] |
CAM
|
NH
Outer
|
| 45. |
832-46410
|
[3] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 46. |
86602143
|
[1] |
WEAR PLATE
|
NH
|
| 47. |
86602046
|
[1] |
PLATE
|
NH
|
| 48. |
86602446
|
[1] |
ANGLE
|
NH
Chain Guard
|
| 49. |
86618109
|
[1] |
SPROCKET
|
NH
Double
|
| 50. |
86629541
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 51. |
692300
|
[1] |
WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk
|
NH
2" OD x 3/16" Thk
|
