神钢零件查询(8DC8) - MITSUBISHI DIESEL ENGINE - K914 & K975 (1/79-12/06) (06-002) - AIR INTAKE 250-200B Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
290 次

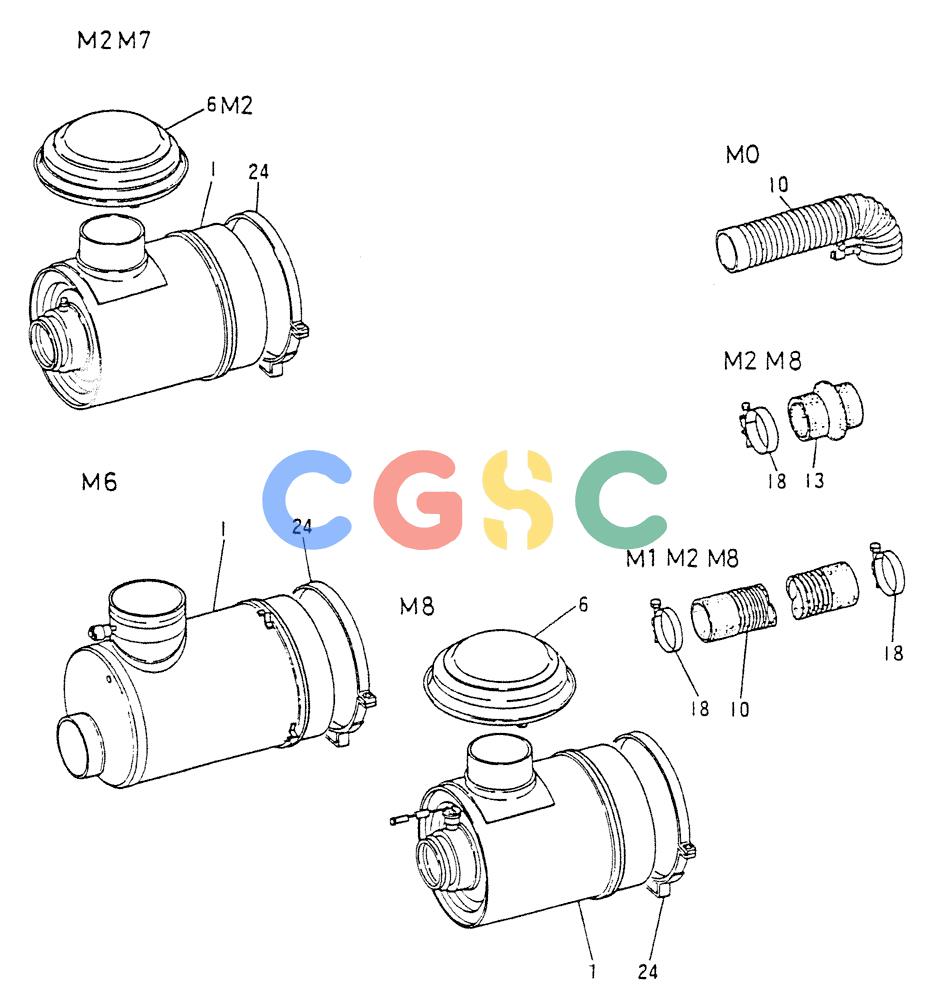

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME068332 | [1] | AIR CLEANER ASSY FHG14 (M2,M7) | |
| 1. | VAME063250 | [1] | AIR CLEANER ASSY FWA14 (M6) | |
| 1. | VAME060701 | [1] | AIR CLEANER ASSY FHG14 (M8) | |
| 6. | VA3123067500 | [1] | CAP | KOBCAP,A/CLNR (FOR M2, M8 ONLY) |
| 10. | VAME048465 | [1] | HOSE | KOBHOSE,AIR INTAKE L = l20 (FOR M0 ONLY) |
| 10. | VAMH030112 | [1] | HOSE,AIR INTAKE L = l20 (FOR M1 ONLY) | |
| . . | VAMC602211 | [1] | L = 400 (FOR M2,M8 ONLY) | |
| 13. | VAME069336 | [1] | ADAPTER,RUBBER ADAPTER,RUBBER L = 178 (FOR M2, M8 ONLY) | ADAPTER,RUBBER ADAPTER,RUBBER L = 178 (FOR M2, M8 ONLY) |
| 18. | VA3123011850 | [1] | HOSE CLAMP | KOBCLAMP,HOSE 5INCH (FOR M1, M2, M8 ONLY) |
| . . | VA3123011860 | [1] | CLAMP | KOB6INCH (FOR M1 ONLY) |
| 24. | VA3123014600 | [2] | BAND,MOUNTING 14INCH (FOR M2, M6, M7, M8 ONLY), OPTION -CYCLON SAFETY TYPE | |
| 1. | VAME097305 | [1] | AIR CLEANER ASSY, FHG14 | |
