神钢零件查询(8DC8) - MITSUBISHI DIESEL ENGINE - K914 & K975 (1/79-12/06) (06-007) - EXHAUST PIPE 250-400C Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
639 次

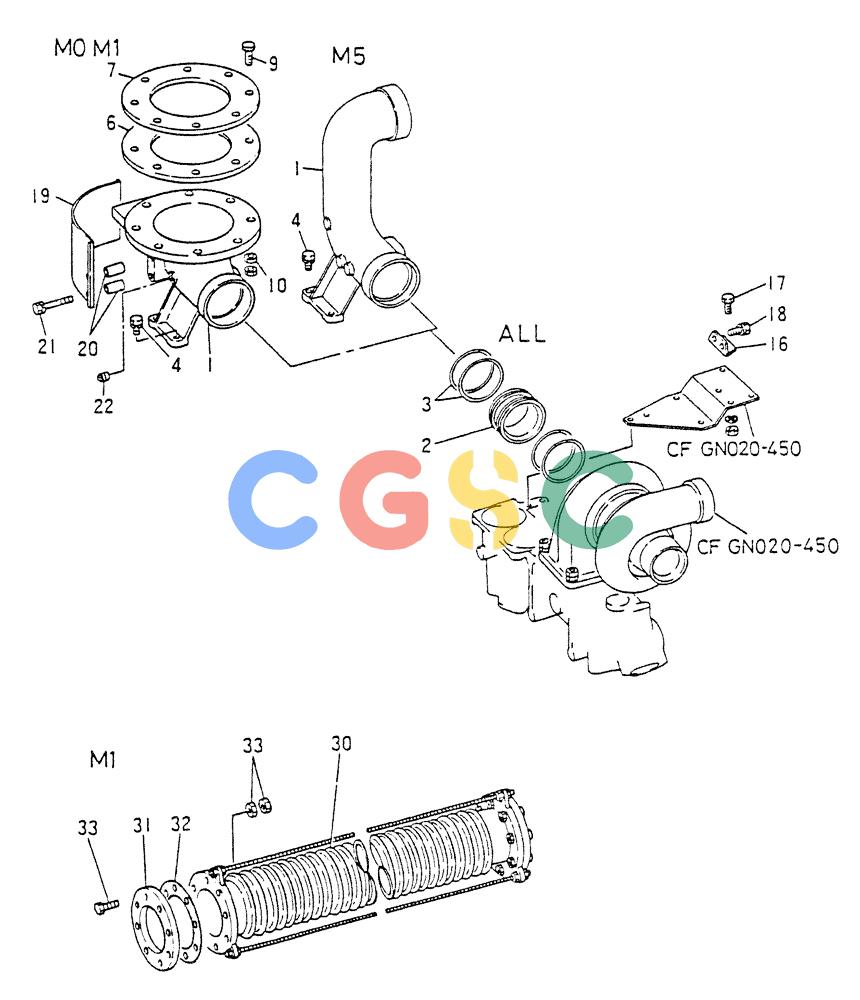

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME069306 | [1] | COUPLER,EXH (FOR M0,M1 ONLY) | |
| . . | VAME069369 | [1] | ELBOW,EXH (FOR M5 ONLY) | |
| 2. | VA3003271400 | [1] | FASTENER JOINT,TURBINE | FASTENER JOINT,TURBINE |
| 3. | VAME053533 | [4] | PISTON RING SET | KOBRING |
| 4. | VAMF300006 | [3] | B0LT,W/W5R 10X32 | |
| 6. | VAME069355 | [1] | GASKET | KOBGASKET (FOR M0,M1 ONLY) Superseded by part number: VAME440958 |
| 7. | VAME069356 | [1] | FLANGE (FOR M0,M1 ONLY) | |
| 9. | VAMF101374 | [8] | BOLT 16X60 (FOR M0,M1 ONLY) | |
| 10. | VAMF430125 | [16] | NUT | KOBNUT 16 (FOR M0,M1 ONLY) |
| 16. | VAME069323 | [1] | STAY,EXH COUPLER | |
| 17. | VAMF101285 | [2] | BOLT | KOBBOLT 10X25 |
| . . | VAMF430122 | [2] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [2] | WASHER | KOBWASHER,SPG 10 |
| 18. | VAMF300842 | [2] | BOLT BOLT, W/WSR 10X22 | BOLT BOLT, W/WSR 10X22 |
| 19. | VAME069354 | [1] | INSULATOR (FOR M0,M1 ONLY) | |
| 20. | VAMH025006 | [3] | SPACER L = 49 (FOR M0,M1 ONLY) | |
| 21. | VAMF303374 | [3] | BOLT,W/WSR 10X65 (FOR M0,M1 ONLY) | |
| 22. | VAMF665143 | [1] | PLUG,TAPER PT3/4 (FOR M0,M1 ONLY) | |
| 30-33. | VAME069352 | [1] | FLEXIBLE PIPE ASSY (M1) | |
| 30. | VAME069367 | [1] | PIPE,FLEX, (FOR M1 ONLY) | |
| 31. | VAME069356 | [2] | FLANGE (FOR M1 ONLY) | |
| 32. | VAME069355 | [2] | GASKET | KOBGASKET (FOR M1 ONLY) Superseded by part number: VAME440958 |
| 33. | VAMF101375 | [16] | BOLT 16X65 (FOR M1 ONLY) | |
| . . | VAMF430125 | [32] | NUT | KOBNUT 16 (FOR M1 ONLY) |
