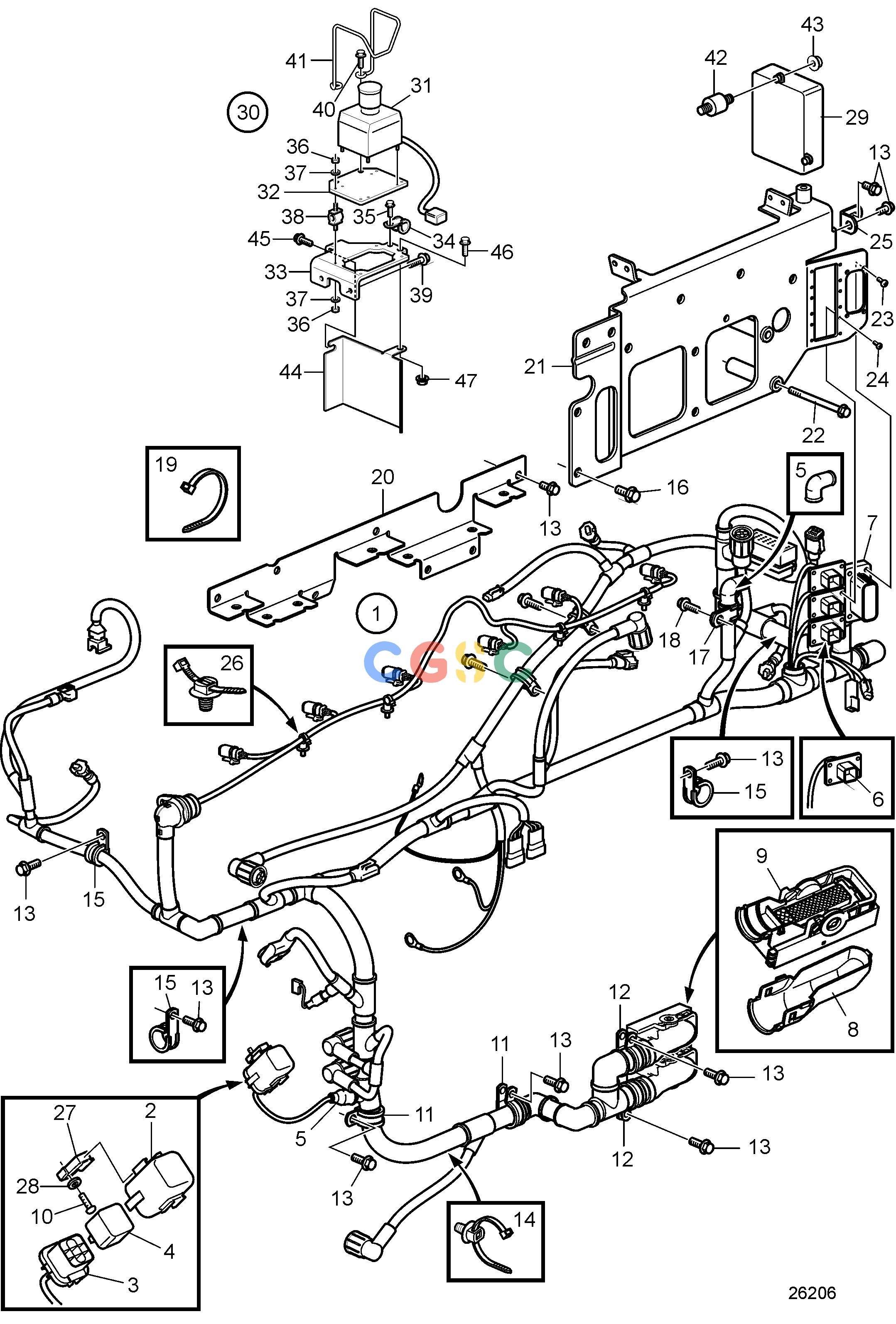

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Electrical SystemElectrical system clacifiable SN-X013349122EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
574 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21556250
|
[1] |
Wiring harness
|
|
| 2. |
21494263
|
[1] |
Relay box
|
|
| 3. |
3587172
|
[1] |
Relay socket
|
|
| 4. |
3171420
|
[1] |
Relay
|
|
| 5. |
21492847
|
[1] |
Relay bracket
|
|
| 6. |
969407
|
[2] |
Six point socket scr
|
|
| 7. |
990487
|
[1] |
Clamp
|
|
| 8. |
984733
|
[3] |
Flange screw
|
|
| 9. |
942810
|
[1] |
Clamp
|
|
| 10. |
984751
|
[1] |
Flange screw
|
|
| 11. |
947827
|
[2] |
Clamp
|
|
| 12. |
949997
|
[2] |
Clamp
|
|
| 13. |
984733
|
[7] |
Flange screw
|
|
| 14. |
980881
|
[1] |
Cable tie
|
|
| 15. |
990487
|
[2] |
Clamp
|
|
| 16. |
984752
|
[4] |
Flange screw
|
|
| 17. |
949747
|
[2] |
Clamp
|
|
| 18. |
984732
|
[1] |
Flange screw
|
|
| 19. |
948211
|
[1] |
Cable tie
|
D=73mm
|
| 19. |
983472
|
[6] |
Cable tie
|
D=35mm high tempererature
|
| 20. |
21204994
|
[1] |
Bracket
|
|
| 21. |
3847891
|
[1] |
Bracket
|
|
| 22. |
984744
|
[2] |
Flange screw
|
|
| 23. |
969405
|
[4] |
Six point socket scr
|
|
| 24. |
969514
|
[12] |
Six point socket scr
|
|
| 25. |
965553
|
[1] |
Bracket
|
|
| 26. |
8131393
|
[4] |
Retainer
|
|
| 27. |
21492847
|
[2] |
Relay bracket
|
|
| 28. |
960138
|
[2] |
Washer
|
|
| 29. |
21350893
|
[1] |
Electronic unit
|
|
| 30. |
21640262
|
[1] |
Emergency stop
|
|
| 31. |
21624100
|
[1] |
Emergency stop
|
|
| 32. |
|
|
|
|
| 33. |
|
|
|
|
| 34. |
949746
|
[1] |
Clamp
|
|
| 35. |
984725
|
[1] |
Flange screw
|
|
| 36. |
955779
|
[8] |
Hexagon nut
|
|
| 37. |
955891
|
[8] |
Washer
|
|
| 38. |
21421504
|
[4] |
Rubber damper
|
|
| 39. |
984732
|
[2] |
Flange screw
|
|
| 40. |
984733
|
[2] |
Flange screw
|
|
| 41. |
3838198
|
[1] |
Protecting brace
|
|
| 42. |
21467854
|
[3] |
Vibration damper
|
|
| 43. |
990939
|
[3] |
Flange nut
|
|
| 44. |
21574316
|
[1] |
Protecting cover
|
|
| 45. |
984724
|
[1] |
Flange screw
|
|
| 46. |
984734
|
[1] |
Flange screw
|
|
| 47. |
990940
|
[1] |
Flange nut
|
|
