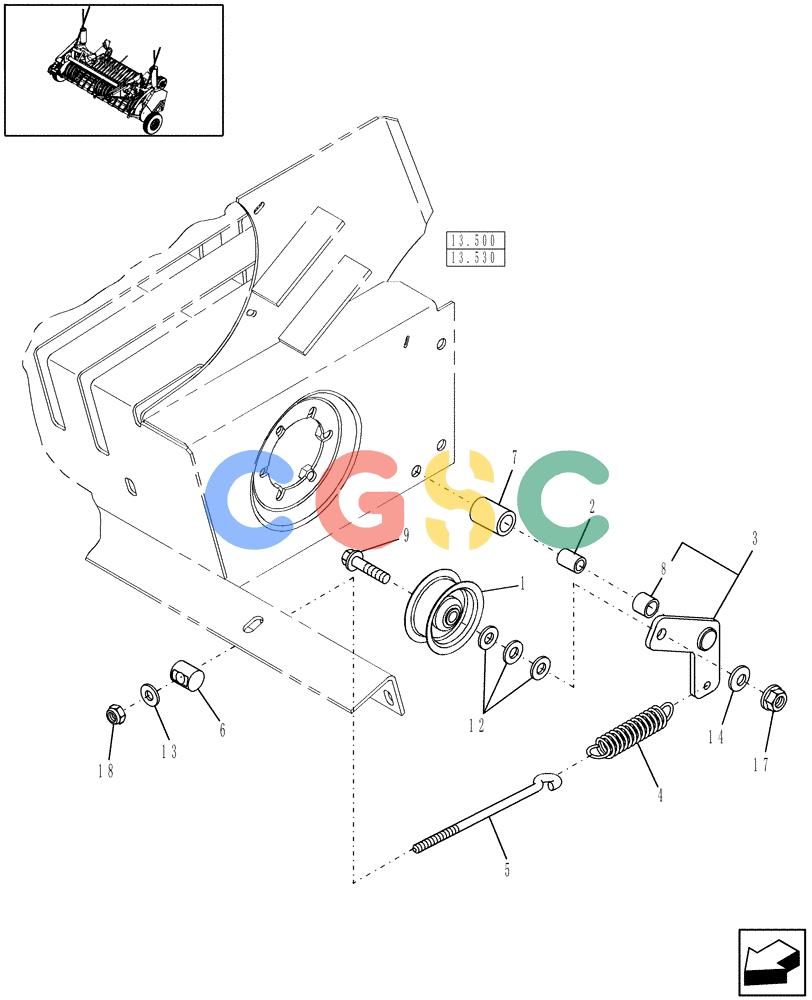

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (13.440) - 1.8M WIDE PICKUP, PICKUP DRIVE IDLER, STUFFER FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
270 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86550790
|
[1] |
IDLER WHEEL,90mm OD
|
NH
Chain
|
| 2. |
86631123
|
[1] |
SPACER,12.95mm ID x 19.05mm OD x 27mm L
|
NH
1-1/16" Lg
|
| 3. |
86636654
|
[1] |
ARM
|
NH
|
| 4. |
86566303
|
[1] |
SPRING
|
NH
|
| 5. |
86628567
|
[1] |
EYEBOLT
|
NH
G2, 3/8"-16 x 8-3/4"
|
| 6. |
36989
|
[1] |
ROCKER ARM
|
NH
|
| 7. |
86705271
|
[1] |
SPACER,13.5mm ID x 25.4mm OD x 34mm L
|
NH
|
| 8. |
87040968
|
[1] |
BUSHING
|
PA
.752" ID x .875" OD x .750" Lg. Superseded by part number: 86573067
|
| 9. |
814-12060
|
[1] |
BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 9706693
|
| 12. |
495-11053
|
[1] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 13. |
495-11041
|
[1] |
WASHER,0.406" ID x 0.812" OD x 0.065" W
|
CAS
Superseded by part number: 87016
|
| 14. |
140046
|
[1] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 17. |
825-1412
|
[1] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 18. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
