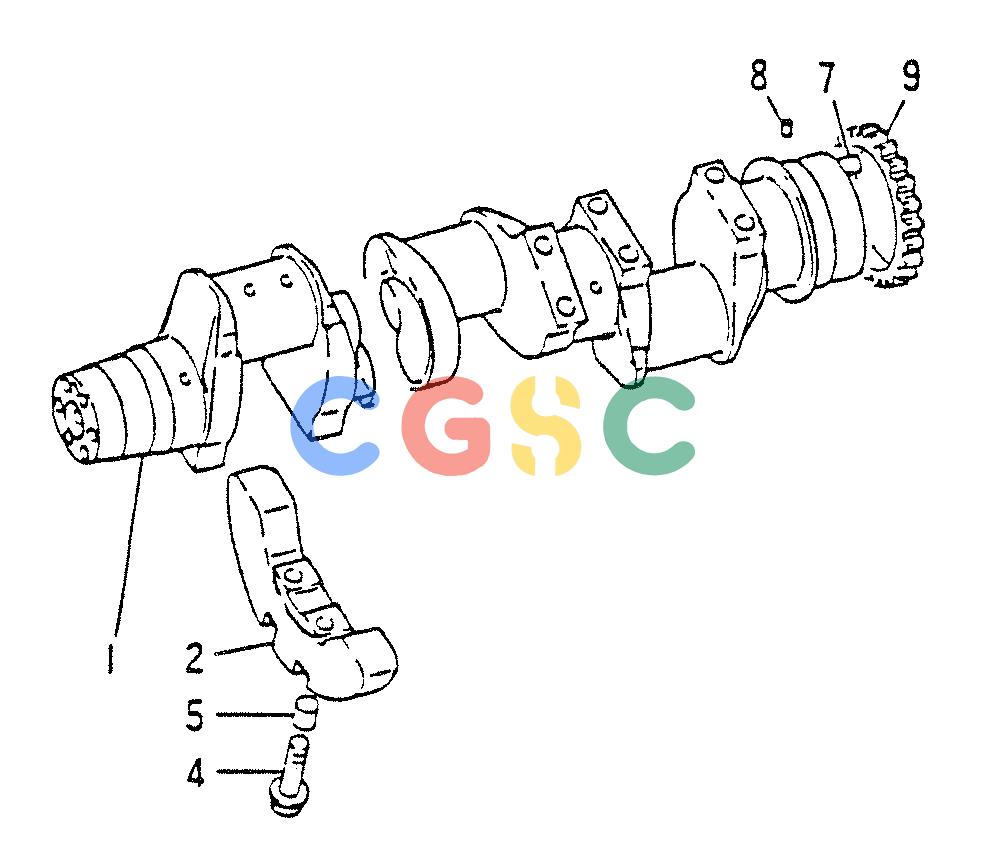

神钢零件查询(8DC8) - MITSUBISHI DIESEL ENGINE - K914 & K975 (1/79-12/06) (08-004) - CRANKSHAFT REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VAME999355 | [1] | CRANKSHAFT CRANKSHAFT ASSY 8DC82(M0) | CRANKSHAFT CRANKSHAFT ASSY 8DC82(M0) |
| 1-9. | VAME999356 | [1] | CRANKSHAFT CRANKSHAFT ASSY 8DC91.91T(M1) | CRANKSHAFT CRANKSHAFT ASSY 8DC91.91T(M1) |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKSHAFT (ME062461) (FOR M0 ONLY) |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONWEIGHT, BALANCE (ME062024)(FOR M0 ONLY) |
| 4. | VA3122073300 | [12] | BOLT ASSY BOLT,W/LOCK WSR (FOR M0 ONLY) | BOLT ASSY BOLT,W/LOCK WSR (FOR M0 ONLY) |
| 4. | VA3122032100 | [12] | BOLT,W/LOCK WSR (FOR M1 ONLY) | |
| 5. | VAMH007006 | [12] | PIN DOWEL PIN,DOWEL | PIN DOWEL PIN,DOWEL |
| 7. | VAMF472407 | [1] | PIN | KOBPIN,DOWEL 14 |
| a. | VAMH012026 | [1] | PIN | KOBPIN,DOWEL |
| 9. | VAME062311 | [1] | GEAR GEAR,CRANKSHAFT Z=63 | GEAR GEAR,CRANKSHAFT Z=63 |
