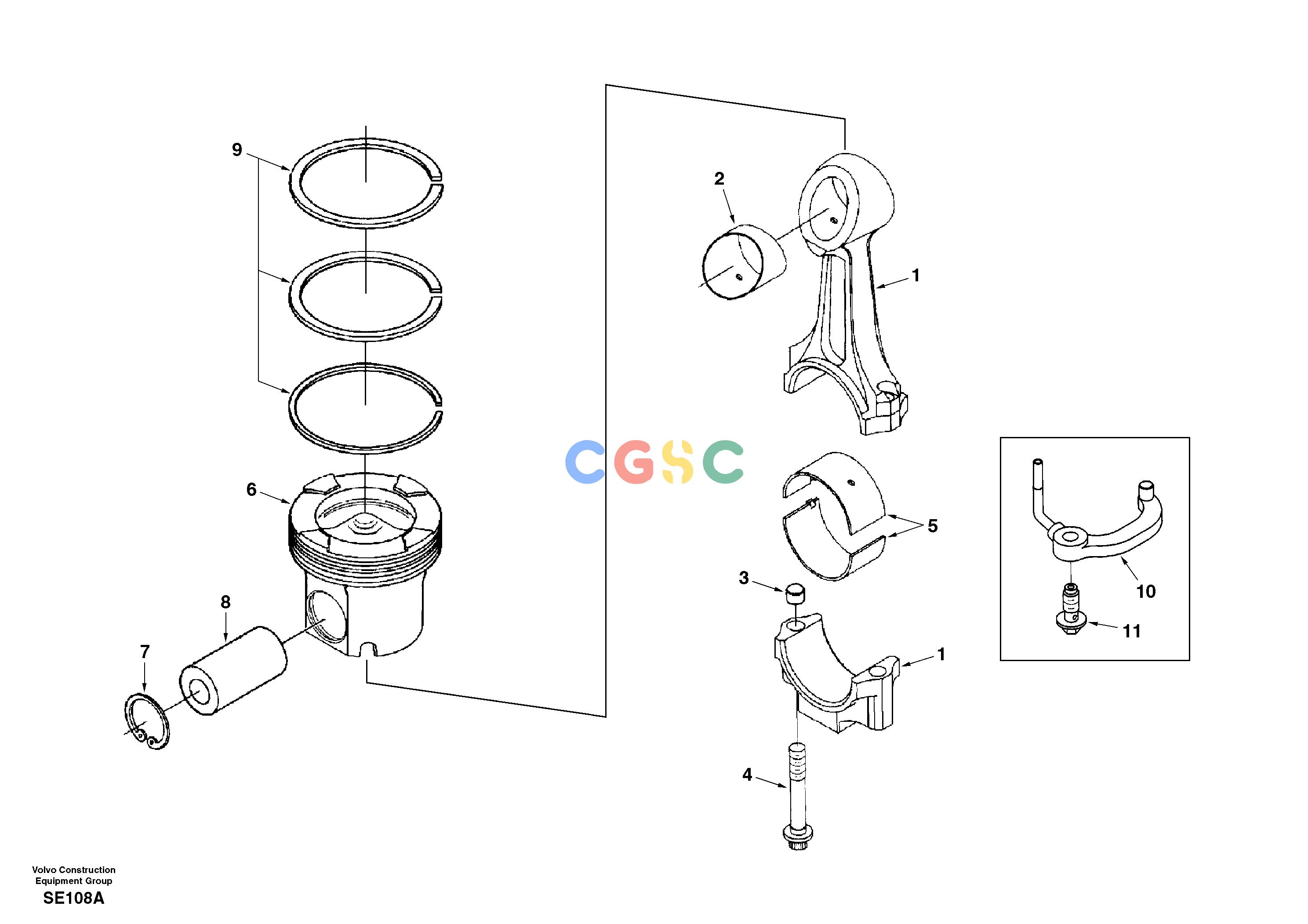

沃尔沃零件查询EC360 Connecting rod and pistonNoneDH04B001-DH04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3899450
|
[1] |
Connecting rod
|
|
| 2. |
SA3896894
|
[1] |
Bushing
|
|
| 3. |
SA3027106
|
[2] |
Ring
|
|
| 4. |
SA3027108
|
[2] |
Bolt
|
|
| 5. |
SA3016760
|
[12] |
Bearing
|
STANDARD
|
| |
SA3016761
|
[12] |
Bearing
|
0.25MM O SZ
|
| |
SA3016762
|
[12] |
Bearing
|
0.50MM O SZ
|
| |
SA3016763
|
[12] |
Bearing
|
0.75MM O SZ
|
| |
SA3016764
|
[12] |
Bearing
|
1.00MM O SZ
|
| 6. |
SA3803976
|
[6] |
Piston
|
|
| |
SA3803624
|
|
Piston
|
|
| 7. |
SA3016652
|
[2] |
Ring
|
SNAP
|
| 8. |
SA3063843
|
[1] |
Pin
|
|
| |
SA3016650
|
|
Pin
|
|
| 9. |
SA3803977
|
[1] |
Ring
|
SET
|
| |
SA3803555
|
|
Ring
|
SET
|
| 10. |
SA3080708
|
[6] |
Nozzle
|
|
| 11. |
SA3070393
|
[6] |
Screw
|
|
