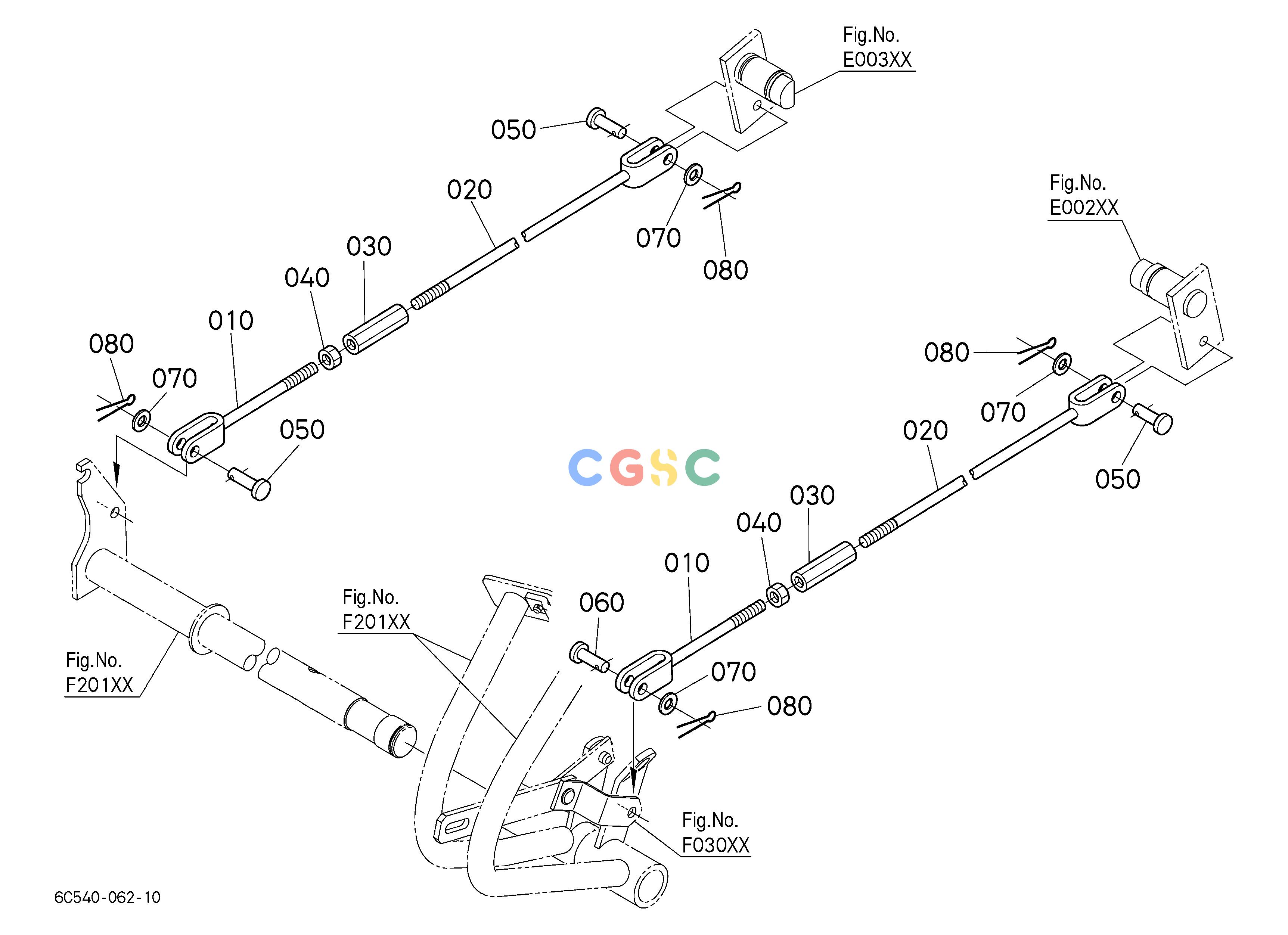

久保田零件查询E00500 BRAKE ROD BRAKEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20042370
|
[2] |
ROD,BRAKE FRONT
|
0.1518(lbs); 0.069
|
| 020. |
6A60042360
|
[2] |
ROD,BRAKE REAR
|
0.3960(lbs); 0.180
|
| 030. |
6659142410
|
[2] |
TURNBUCKLE
|
0.1012(lbs); 0.046
|
| 040. |
0211450080
|
[2] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 050. |
0512250822
|
[3] |
PIN,JOINT
|
0.0220(lbs); 0.010
|
| 060. |
0512250825
|
[1] |
PIN,JOINT
|
0.0242(lbs); 0.011
|
| 070. |
0401350080
|
[4] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0551150218
|
[4] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
