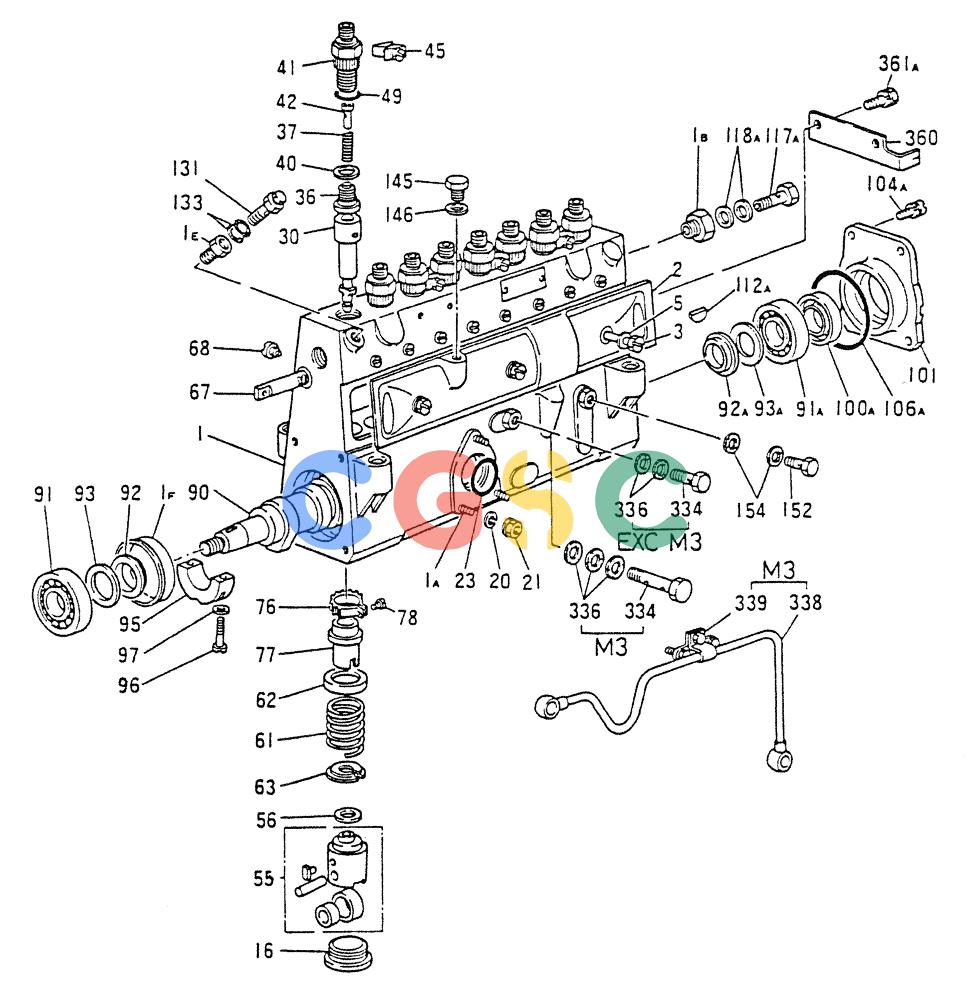

神钢零件查询(8DC8) - MITSUBISHI DIESEL ENGINE - K914 & K975 (1/79-12/06) (03-003) - INJECTION PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
577 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-361A. | NSS | [1] | NOT SOLD SEPARAT | CONAD TYPE (M1) |
| 1. | VAME704200 | [1] | HOSUING, PUMP (FOR M0, M1 ONLY) | |
| . . | VAME704397 | [1] | (FOR M3 ONLY) | |
| 1A. | VAME705277 | [3] | STUD | |
| 1B. | VAME704001 | [1] | ADAPTER | |
| 1E. | VAME704280 | [1] | HYD CONNECTOR | KOBADAPTER Superseded by part number: VA1310025000 |
| 1F. | VAME704143 | [1] | RING | |
| 2. | VAME704204 | [1] | COVER, ASSY | |
| 3. | VAME704005 | [3] | SCREW | KOBSCREW,COVER |
| 5. | VAME705151 | [3] | GASKET | KOBGASKET |
| 16. | VAME704259 | [8] | SCREW,PLUG | |
| 20. | VAME717712 | [3] | SPRING WASHER | KOBWASHER,SPG |
| 21. | VAME717709 | [3] | NUT | |
| 23. | VAME705152 | [1] | O-RING | KOBO-RING |
| 30. | VAME704257 | [8] | PLUNGER ASSY (FOR M0 ONLY) | |
| . . | VAME704144 | [8] | PLUNGER | KOB(FOR M1, M3 ONLY) |
| 36. | VAME704380 | [8] | VALVE | KOBDELIVERY VALVE ASSY |
| 37. | VAME704146 | [8] | SPRING | KOBSPRING,DELIVERY/V |
| 40. | VAME704010 | [8] | GASKET | KOBGASKET,DELIVERY/V Superseded by part number: VA1311151200 |
| 41. | VAME704011 | [8] | HOLDER HOLDER,DELIVERY/V | HOLDER HOLDER,DELIVERY/V |
| 42. | VAME704012 | [8] | STOP | KOBSTOPPER |
| 45. | VAME704013 | [4] | LOCKING PLATE | KOBPLATE,VALVE HOLDER LOCK |
| 49. | VAME705153 | [8] | O-RING | KOBO-RING Superseded by part number: VA0296320070 |
| 55. | VAME704014 | [8] | TAPPET ASSY | |
| 56. | VAME705155 | [1] | SHIM | KOBSHIM T = 0.30 |
| . . | VAME705156 | [1] | SHIM | KOBSHIM T = 0.40 |
| . . | VAME705157 | [1] | SHIM | KOBSHIM T = 0.50 |
| . . | VAME705158 | [1] | SHIM | KOBSHIM T = 0.60 |
| . . | VAME705159 | [1] | SHIM | KOBSHIM T = 0.70 |
| . . | VAME705160 | [1] | SHIM | KOBSHIM T = 0.80 |
| . . | VAME705161 | [1] | SHIM | KOBSHIM T = 0.90 |
| . . | VAME705162 | [1] | SHIM | KOBSHIM T = 1.00 |
| . . | VAME705163 | [1] | SHIM | KOBSHIM T = 1.10 |
| . . | VAME705164 | [1] | SHIM | KOBSHIM T = 1.20 |
| . . | VAME705165 | [1] | SHIM | KOBSHIM T = 1.30 |
| . . | VAME705166 | [1] | SHIM | KOBSHIM T = 1.40 |
| . . | VAME705167 | [1] | SHIM | KOBSHIM T = 0.55 |
| . . | VAME705168 | [1] | SHIM | KOBSHIM T = 0.65 |
| . . | VAME705169 | [1] | SHIM | KOBSHIM T = 0.75 |
| . . | VAME705170 | [1] | SHIM | KOBSHIM T = 0.85 |
| . . | VAME705171 | [1] | SHIM | KOBSHIM T = 0.95 |
| . . | VAME705172 | [1] | SHIM | KOBSHIM T = 1.05 |
| . . | VAME705173 | [1] | SHIM | KOBSHIM T = 1.15 |
| . . | VAME705174 | [1] | SHIM | KOBSHIM T = 1.25 |
| . . | VAME705175 | [1] | SHIM | KOBSHIM T = 1.50 |
| . . | VAME705176 | [1] | SHIM | KOBSHIM T = 1.60 |
| . . | VAME705177 | [1] | SHIM | KOBSHIM T = 0.20 |
| . . | VAME705178 | [1] | SHIM | KOBSHIM T = 0.25 |
| . . | VAME705179 | [1] | SHIM | KOBSHIM T = 0.35 |
| . . | VAME705180 | [1] | SHIM | KOBSHIM T = 0.45 |
| . . | VAME705181 | [1] | SHIM | KOBSHIM T = 1.35 |
| . . | VAME705182 | [1] | SHIM | KOBSHIM T = 1.45 |
| . . | VAME705183 | [1] | SHIM | KOBSHIM T = 1.55 |
| 61. | VAME704018 | [8] | SPRING,PLUNGER | |
| 62. | VAME704019 | [8] | SEAT,PLUNGER SPG UPPER | |
| 63. | VAME704020 | [8] | SEAT,PLUNGER SPG LOWER | |
| 67. | VAME704207 | [1] | RACK,CONTROL | |
| 68. | VAME704022 | [1] | SCREW | KOBSCREW,RACK STOP Superseded by part number: VA1312260300 |
| 76. | VAME704023 | [8] | PINION | KOBPINION |
| 77. | VAME704024 | [8] | SLEEVE,CONTROL | |
| 78. | VAME704025 | [8] | SCREW | KOBSCREW,PINION CLAMP |
| 90. | VAME704205 | [1] | CAMSHAFT | |
| 91. | VAME705184 | [1] | BEARING | KOBBEARING |
| 91A. | VAME705184 | [1] | BEARING | KOBBEARING |
| 92. | VAME704028 | [1] | RING | KOBRING,CAMSHAFT |
| 92A. | VAME704028 | [1] | RING | KOBRING,CAMSHAFT |
| 93. | VAME705200 | [1] | SHIM | KOBSHIM T = 0. 10 |
| . . | VAME705201 | [1] | SHIM | KOBSHIM T = 0 .12 |
| . . | VAME705202 | [1] | SHIM | KOBSHIM T = 0 .14 |
| . . | VAME705203 | [1] | SHIM | KOBSHIM T = 0.16 |
| . . | VAME705204 | [1] | SHIM | KOBSHIM T = 0.18 |
| . . | VAME705205 | [1] | SHIM | KOBSHIM T = 0. 50 |
| . . | VAME705206 | [1] | SHIM | KOBSHIM T = 0.30 |
| . . | VAME705207 | [1] | SHIM | KOBSHIM T = 1.00 |
| 93A. | VAME705200 | [1] | SHIM | KOBSHIM T = 0.10 |
| 95. | VAME704148 | [1] | BEARING,CTR | |
| 96. | VAME705208 | [2] | SCREW | KOBSCREW |
| 97. | VAME705209 | [2] | GASKET | KOBGASKET |
| 100A. | VAME705210 | [1] | OIL SEAL | KOBOILSEAL Superseded by part number: VA0296220190 |
| 101A. | VAME704149 | [1] | COVER,BRG | |
| 104A. | VAME705225 | [4] | BOLT | |
| 106A. | VAME717732 | [1] | O-RING | KOBO-RING Superseded by part number: VA0296350050 |
| 112A. | VAMD603650 | [1] | KEY,WOODRUFF | |
| 117A. | VAME705216 | [1] | BOLT | KOBBOLT,EYE |
| 118A. | VA3126106400 | [2] | GASKET | KOB Superseded by part number: VA0293414130 |
| 131. | VAME704256 | [1] | VALVE OVER OVER FLOW VALVE ASSY | VALVE OVER OVER FLOW VALVE ASSY |
| 133. | VA3126106400 | [2] | GASKET | KOB Superseded by part number: VA0293414130 |
| 145. | VAME705217 | [1] | PLUG,SCREW | |
| 146. | VAME705218 | [1] | GASKET | KOBGASKET Superseded by part number: VA0265121540, 77270060 |
| 152. | VAME704150 | [1] | EYE BOLT BOLT,PIPE JOINT (FOR M0, M1 ONLY) | EYE BOLT BOLT,PIPE JOINT (FOR M0, M1 ONLY) |
| . . | VAME717780 | [1] | (FOR M3 ONLY) | |
| 154. | VAME705218 | [2] | GASKET | KOBGASKET Superseded by part number: VA0265121540, 77270060 |
| 334. | VAME705223 | [1] | BOLT | KOBBOLT,PIPE JOINT (FOR M0, M1 ONLY) |
| . . | VAME716782 | [1] | (FOR M3 ONLY) | |
| 336. | VA375124001 | [2] | GASKET (FOR M0, M1 ONLY) | |
| 338. | VAME704398 | [1] | PIPE (FOR M3 ONLY) | |
| 339. | VAME704399 | [1] | CLIP (FOR M3 ONLY) | |
| 360A. | VAME704381 | [1] | POINTER | |
| 361A. | VAME717737 | [2] | BOLT.W/WSR | |
