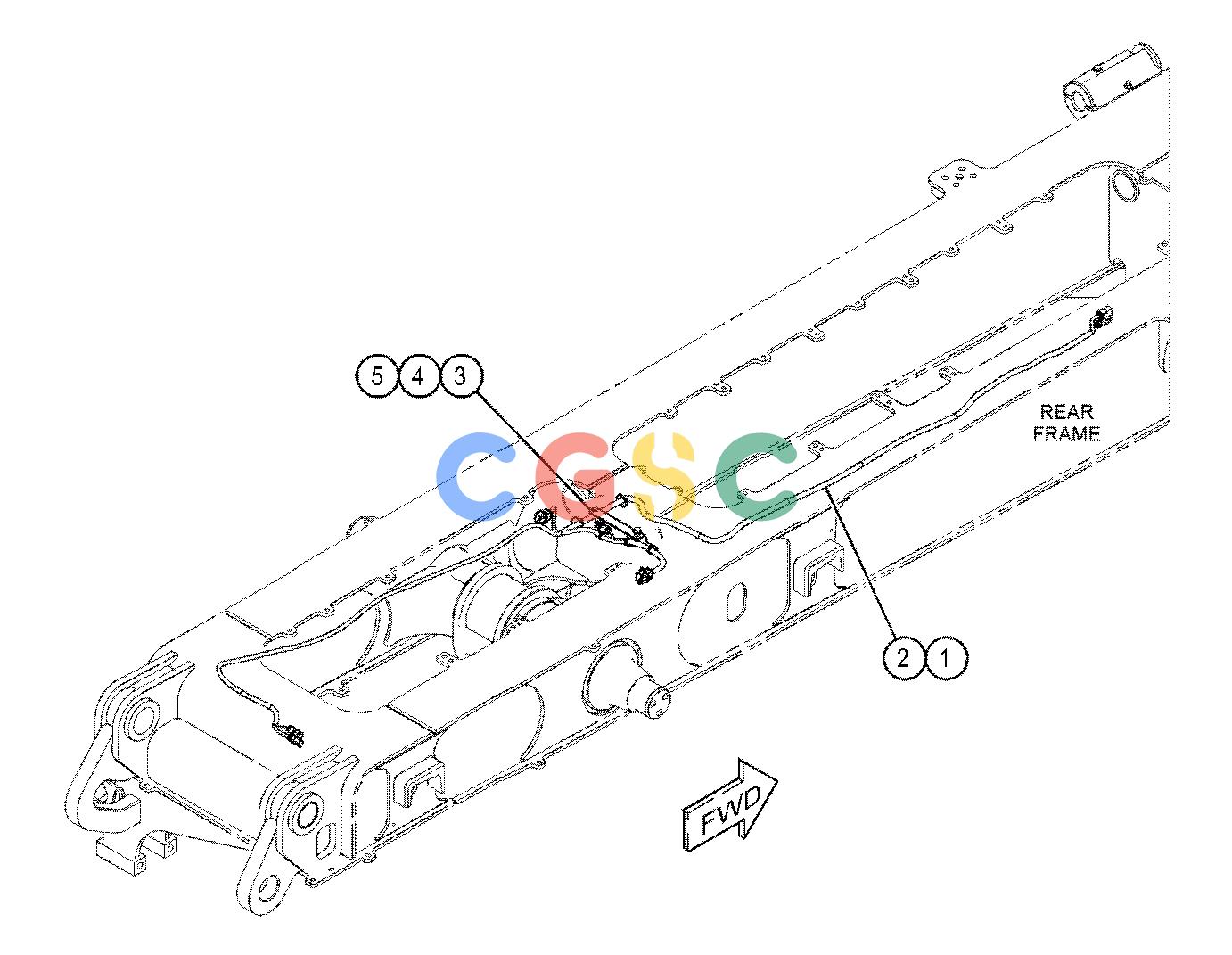

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093 | [9] | STRAP-CABLE | |
| 2. | 454-2196Y | [1] | HARNESS AS-MONITOR | |
| 3. | 481-7847 | [1] | PLATE AS | |
| 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | ||
| 4. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 5. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
