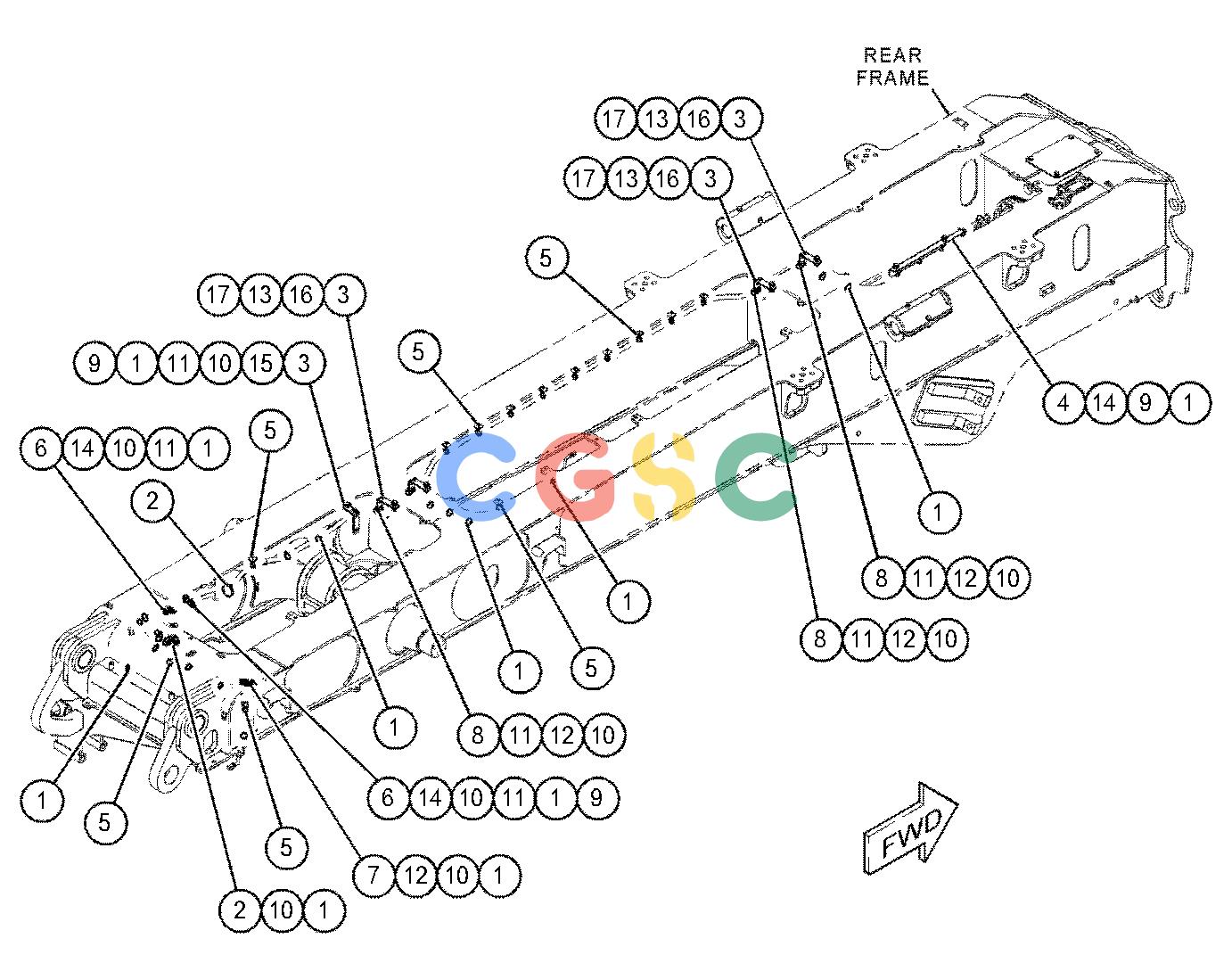

卡特零件查询（725C） 453-3093: WIRING GP-REAR
广数供应链运营团队, 14 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [28] | STRAP-CABLE | |
| 2. | 7K-1181 | [1] | STRAP-CABLE | |
| 3. | 392-3515 | [5] | PLATE | |
| 4. | 444-1243 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 5. | 393-1829 | [13] | TIE-CABLE | |
| 6. | 4P-7581 | [2] | CLIP(LADDER) | |
| 7. | 4P-8134 | [2] | CLIP(LADDER) | |
| 8. | 6D-4246 | [4] | CLIP(LOOP) | |
| 9. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 10. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4133M | [7] | NUT(M10X1.5-THD) | |
| 12. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 14. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 15. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 16. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
