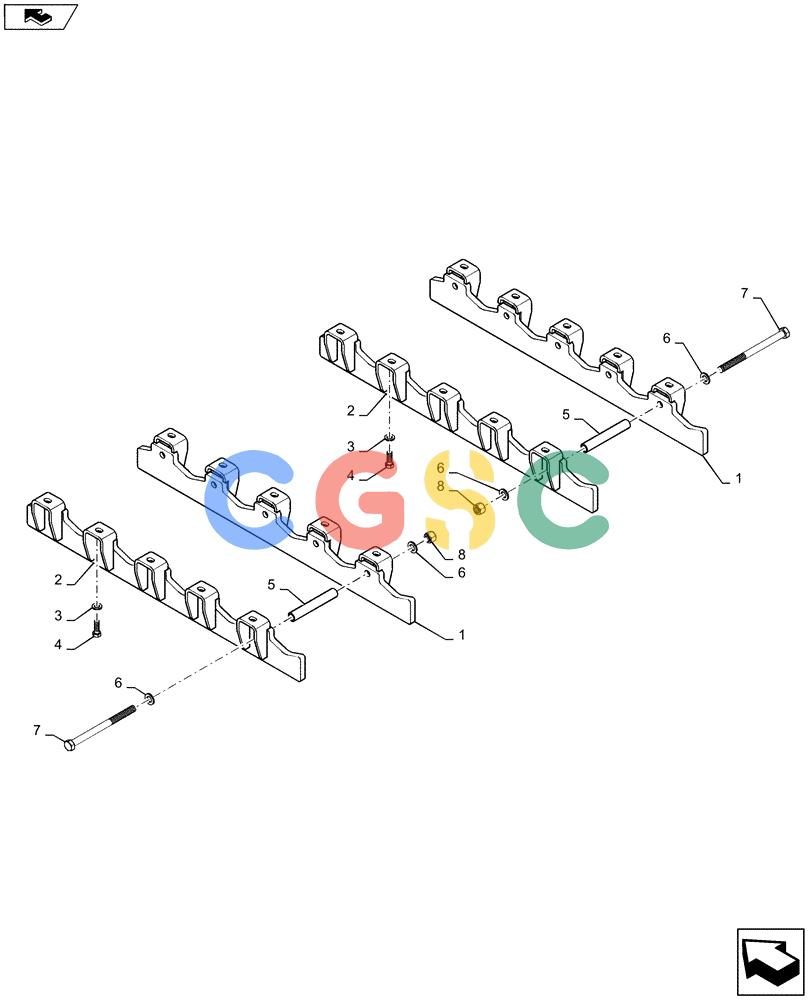

纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (48.130.AW[01]) - ROCK GUARD, LT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
977 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84574040 | [2] | GUARD | BUR Superseded by part number: 47558188 |
| 2. | 84574043 | [2] | GUARD | BUR Superseded by part number: 47558191 |
| 3. | 87655047 | [20] | SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm, HTS, BORON | BUR |
| 4. | 87563127 | [20] | BOLT,Hex, M20 x 50mm, Cl 10.9 | BHB |
| 5. | 87558879 | [10] | SPACER | BUR |
| 6. | 87713134 | [20] | SPECIAL WASHER | BUR |
| 7. | 1570099 | [10] | BOLT,Hex, M20 x 360mm, Cl 8.8 | BHB |
| 8. | 412180 | [10] | NUT,M20 x 2.5, Cl 8 | ZED Superseded by part number: 9672396 |
