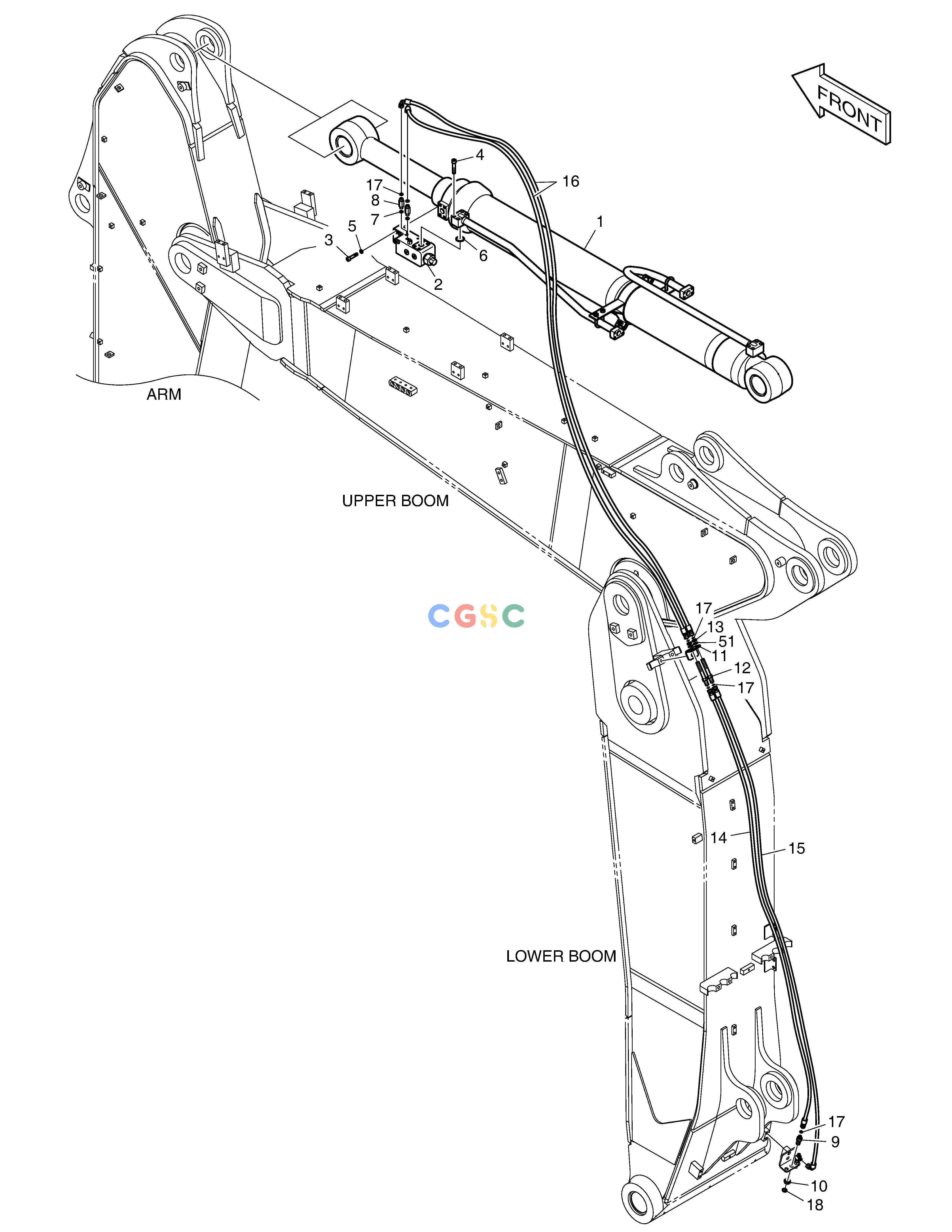

斗山零件查询ARTI. ARM PIPING - LOCK VALVE DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-03643
|
[-] |
|
|
| 1. |
400305-00121C
|
[1] |
|
|
| 10. |
DS0301032
|
[1] |
NUT
|
|
| 11. |
110406-00738
|
[1] |
|
|
| 12. |
DS2248009
|
[2] |
|
|
| 13. |
DS0301066
|
[2] |
|
|
| 14. |
DS20111017
|
[1] |
|
|
| 15. |
DS20131679
|
[1] |
|
|
| 16. |
DS20131678
|
[2] |
|
|
| 17. |
S8030041
|
[7] |
O-RING
|
|
| 18. |
S8030061
|
[1] |
O-RING
|
|
| 2. |
410114-00088
|
[1] |
|
|
| 3. |
S2215766
|
[4] |
BOLT
|
|
| 4. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 5. |
S5110703
|
[4] |
WASHER
|
|
| 51. |
K1015638
|
[2] |
WASHER;HARDENED
|
|
| 6. |
2180-1026D19
|
[1] |
O-RING
|
|
| 7. |
S8000111
|
[2] |
O-RING
|
|
| 8. |
DS2232019
|
[2] |
|
|
| 9. |
DS2230004
|
[1] |
|
|
