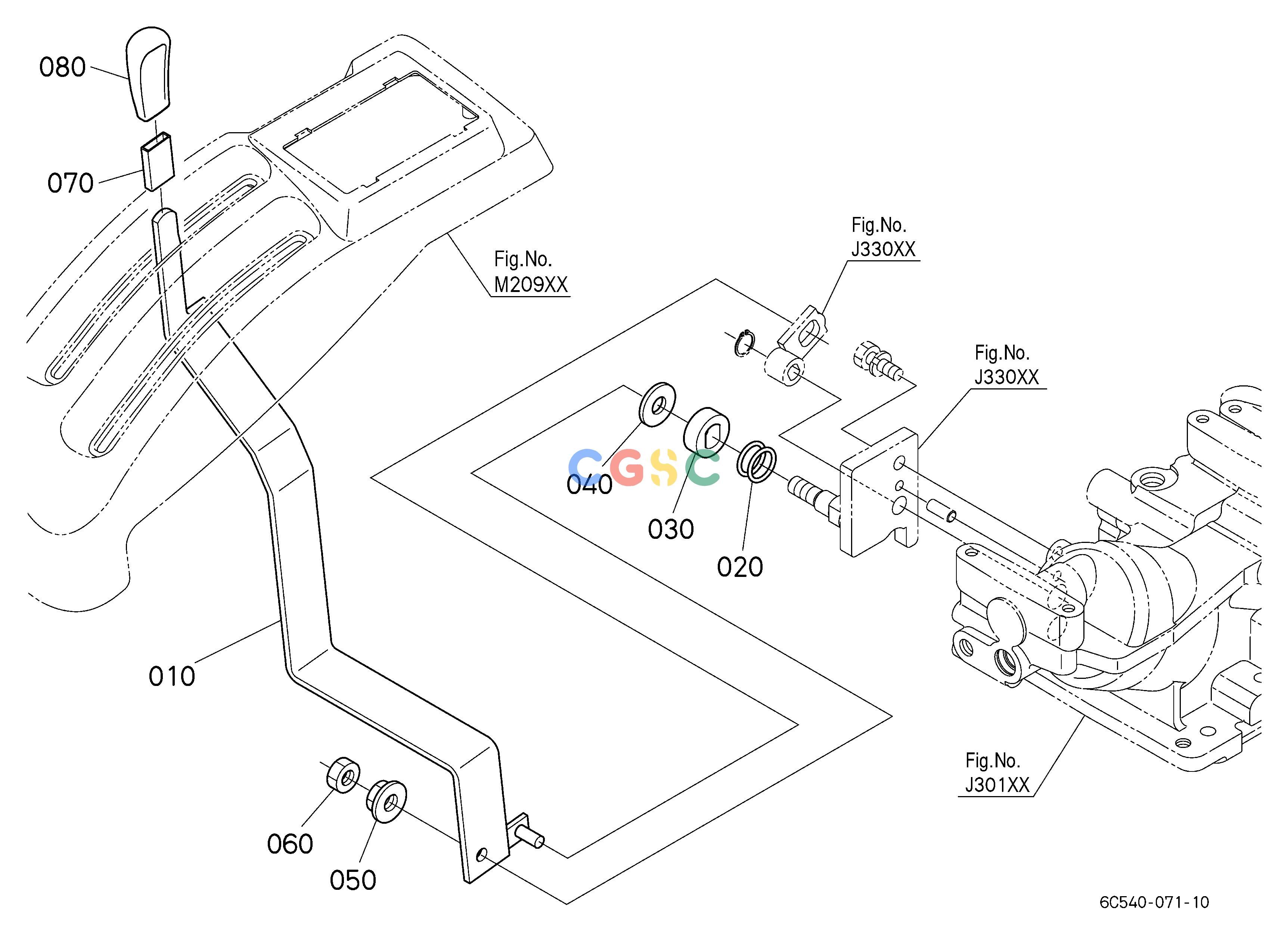

久保田零件查询F14000 POSITION CONTROL LEVER OPERATIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
641 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54038210
|
[1] |
LEVER(POSITION)
|
2.5300(lbs); 1.150
|
| 020. |
6C20038260
|
[1] |
SPRING,LEVER
|
0.0264(lbs); 0.012
|
| 030. |
6C54038252
|
[1] |
COLLAR
|
0.0792(lbs); 0.036
|
| 040. |
5H57032720
|
[1] |
PLATE,BRAKE
|
0.0066(lbs); 0.003
|
| 040. |
6C54038370
|
[1] |
PLATE(FRICTION)
|
0.0022(lbs); 0.001
|
| 050. |
0213150100
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 060. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 060. |
0217650100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 070. |
6A90042760
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
| 080. |
6A70038242
|
[1] |
GRIP,BLACK 83
|
0.1210(lbs); 0.055
|
