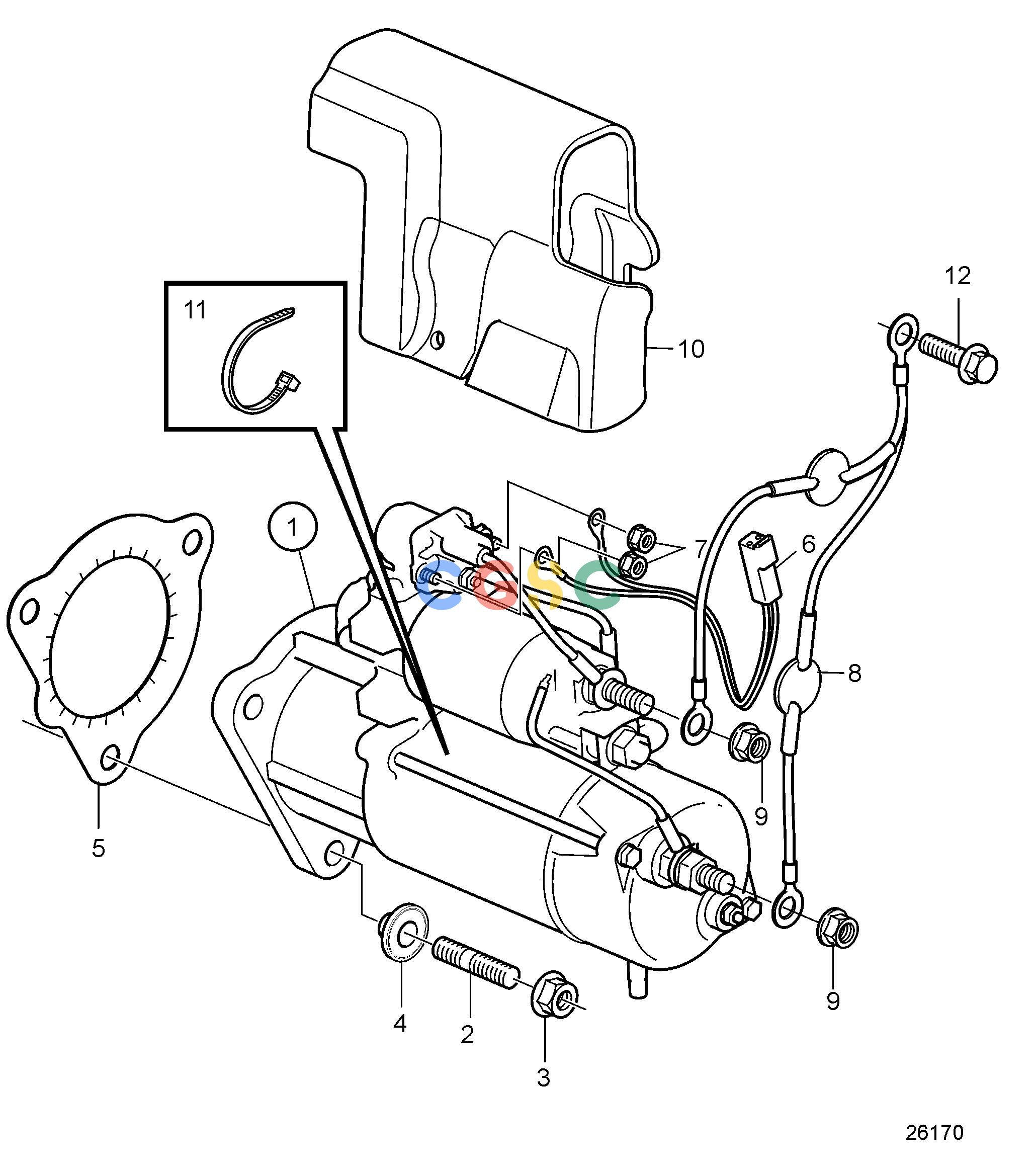

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Electrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
207 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21103722
|
[1] |
Starter motor
|
24V
|
| 1. |
3801289
|
[1] |
Starter motor, exch
|
24V
|
| 1. |
|
|
|
|
| 2. |
953098
|
[3] |
Stud
|
|
| 3. |
990942
|
[3] |
Flange nut
|
|
| 4. |
21308514
|
[3] |
Insulating bushing
|
|
| 5. |
3888763
|
[1] |
Gasket
|
|
| 6. |
21121115
|
[1] |
Connecting cable
|
|
| 7. |
983714
|
[2] |
Hexagon nut
|
|
| 8. |
21546674
|
[1] |
Cable kit
|
|
| 9. |
983717
|
[2] |
Hexagon nut
|
|
| 10. |
21634285
|
[1] |
Cover
|
|
| 11. |
948211
|
[1] |
Cable tie
|
|
| 12. |
984732
|
[1] |
Flange screw
|
|
