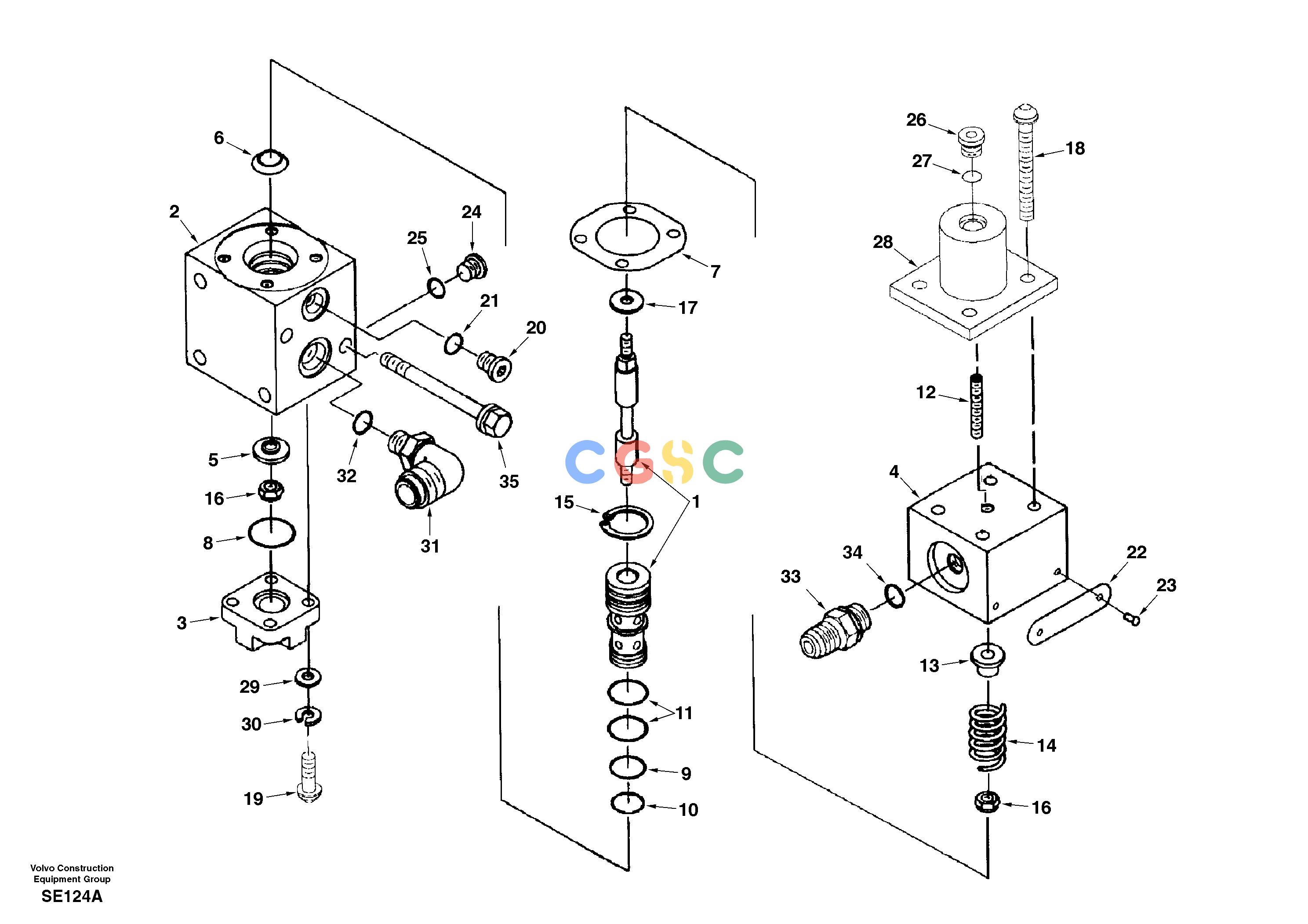

沃尔沃零件查询EC360 Oil control valveNoneDH04B001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
584 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA3071598
|
[1] |
Valve
|
|
| 1. |
SA3060605
|
[1] |
Barrel
|
|
| 2. |
SA3070167
|
[1] |
Valve assembly
|
|
| 3. |
SA3069989
|
[1] |
Cover
|
|
| 4. |
SA3070124
|
[1] |
Cover
|
|
| 5. |
SA3073998
|
[1] |
Disc
|
|
| 6. |
SA3054411
|
[1] |
Spring
|
|
| 7. |
SA3070108
|
[1] |
Gasket
|
|
| 8. |
SA3034408
|
[1] |
O-ring
|
|
| 9. |
SA3066914
|
[2] |
O-ring
|
|
| 10. |
SA3045986
|
[1] |
O-ring
|
|
| 11. |
SA3042542
|
[2] |
Seal
|
|
| 12. |
SA3417096
|
[1] |
Screw
|
|
| 13. |
SA3049041
|
[1] |
Retainer
|
|
| 14. |
SA3054526
|
[1] |
Spring
|
|
| 15. |
SAS-16240
|
[1] |
Ring
|
|
| 16. |
SA3069015
|
[2] |
Nut
|
|
| 17. |
SA3070186
|
[1] |
Washer
|
|
| 18. |
SA3417098
|
[4] |
Screw
|
|
| 19. |
SA3417077
|
[4] |
Screw
|
|
| 20. |
SA3040814
|
[1] |
Plug
|
|
| 21. |
SA3036666
|
[1] |
O-ring
|
|
| 22. |
SA105375
|
[1] |
Decal
|
|
| 23. |
SAS-2286
|
[2] |
Screw
|
|
| 24. |
SA3033742
|
[1] |
Plug
|
|
| 25. |
SA3034412
|
[1] |
Seal
|
|
| 26. |
SA3417076
|
[1] |
Plug
|
|
| 27. |
SA3034412
|
[1] |
Seal
|
|
| 28. |
SA3417078
|
[1] |
Cover
|
|
| 29. |
SA70704
|
[4] |
Washer
|
|
| 30. |
SA181466
|
[4] |
Washer
|
|
| 31. |
SA3037662
|
[2] |
Elbow
|
|
| 32. |
SA3036666
|
[1] |
O-ring
|
|
| 33. |
SA3068999
|
[1] |
Union
|
|
| 34. |
SA3036666
|
[1] |
O-ring
|
|
| 35. |
SA3902112
|
[2] |
Screw
|
|
| 100. |
SA3803282
|
[1] |
Sealing Kit
|
|
