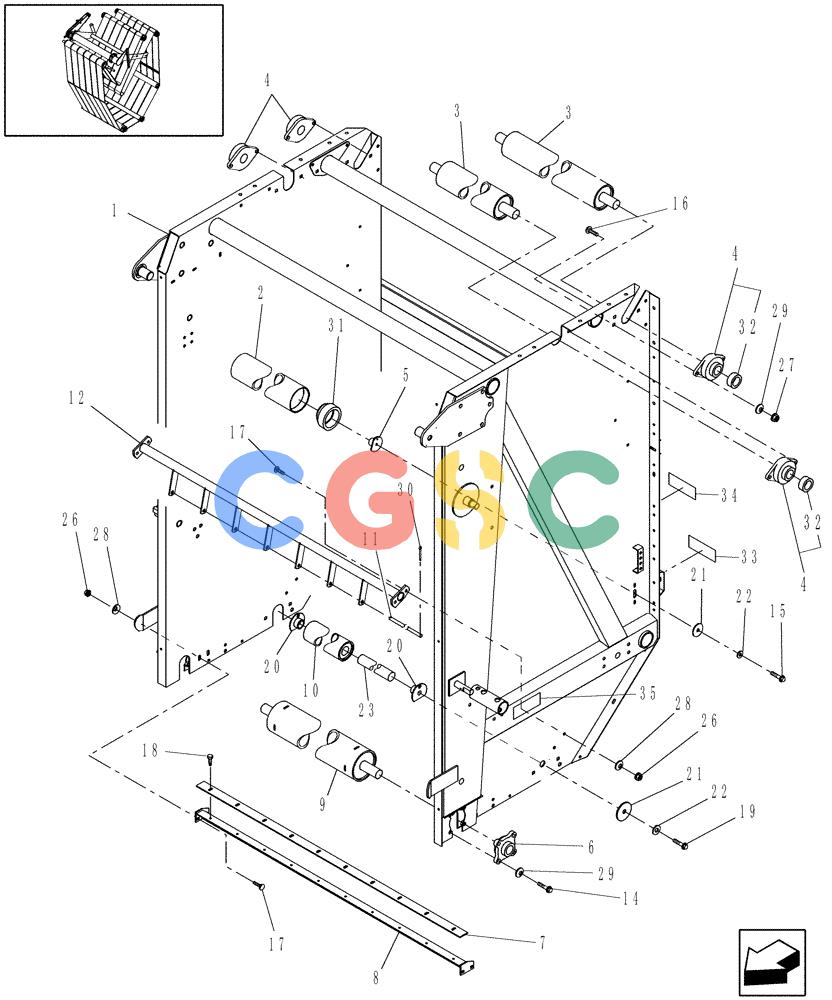

| 1. |
87019775
|
[1] |
TAILGATE
|
PA
|
| 2. |
86502853
|
[1] |
ROLLER
|
NH
Tailgate, Middle, Serial Range: -YDN179980 Superseded by part number: 84601407
|
| 2. |
84601407
|
[1] |
ROLL
|
NH
Tailgate, Middle, Start Serial: YDN179981
|
| 3. |
86599036
|
[2] |
ROLL
|
NH
Tailgate, Idler, Serial Range: -YCN172444
|
| 3. |
84561456
|
[1] |
ROLL
|
NH
Tailgate, Idler, Rubber Guide, Start Serial: YCN172445
|
| 4. |
86590751
|
[4] |
BEARING ASSY,40mm ID
|
NH
Includes: Ref. 32 Superseded by part number: 87660576
|
| 5. |
86501067
|
[2] |
SUPPORT
|
NH
|
| 6. |
86590753
|
[2] |
BEARING ASSY
|
NH
|
| 7. |
86636769
|
[1] |
SCRAPER BLADE
|
NH
|
| 8. |
86626134
|
[1] |
SUPPORT
|
NH
Superseded by part number: 47761419
|
| 9. |
87372981
|
[1] |
ROLL
|
NH
|
| 10. |
9842173
|
[1] |
ROLLER
|
NH
Tailgate, Bottom, Includes: Ref. 36 Superseded by part number: 84600588
|
| 11. |
9621329
|
[1] |
ROD
|
NH
|
| 12. |
86626133
|
[1] |
GUIDE
|
NH
Belt, Rear
|
| 14. |
614-12035
|
[8] |
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
|
IH
|
| 15. |
814-12050
|
[2] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 9706702
|
| 16. |
811-12040
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 328754
|
| 17. |
811-10030
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 18. |
381014
|
[10] |
SCREW,Flng, M8 x 16mm
|
NH
Self-Tapping, M8 x 1.25 x 16
|
| 19. |
43260
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
|
BHB
|
| 20. |
86521602
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87023400
|
| 21. |
29684
|
[4] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
17/32" ID x 2" OD x 3/16" Thk
|
| 22. |
65319
|
[4] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 23. |
9608117
|
[1] |
SHAFT
|
NH
Superseded by part number: 87023401
|
| 26. |
825-2410
|
[8] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 27. |
825-1412
|
[12] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 28. |
140045
|
[8] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 29. |
140046
|
[16] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 30. |
432-812
|
[2] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 31. |
86500662
|
[2] |
BEARING ASSY
|
NH
|
| 32. |
563733
|
[4] |
COLLAR
|
ZED
Lock
|
| 33. |
86547781
|
[2] |
REFLECTOR,RED
|
NH
Red Retroreflective
|
| 34. |
86631516
|
[1] |
WARNING DECAL
|
NH
English
|
| 34. |
86632799
|
[1] |
DANGER DECAL
|
NH
WARNING, French
|
| 35. |
86631519
|
[3] |
DANGER DECAL
|
NH
English
|
| 35. |
86632802
|
[3] |
DECAL
|
NH
DANGER, French
|
| 36. |
9845576
|
[2] |
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
|
NH
, Serial Range: -YDN179980 Superseded by part number: 84330072
|
| 36. |
84259867
|
[2] |
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
|
PLO
, Start Serial: YDN179981
|
