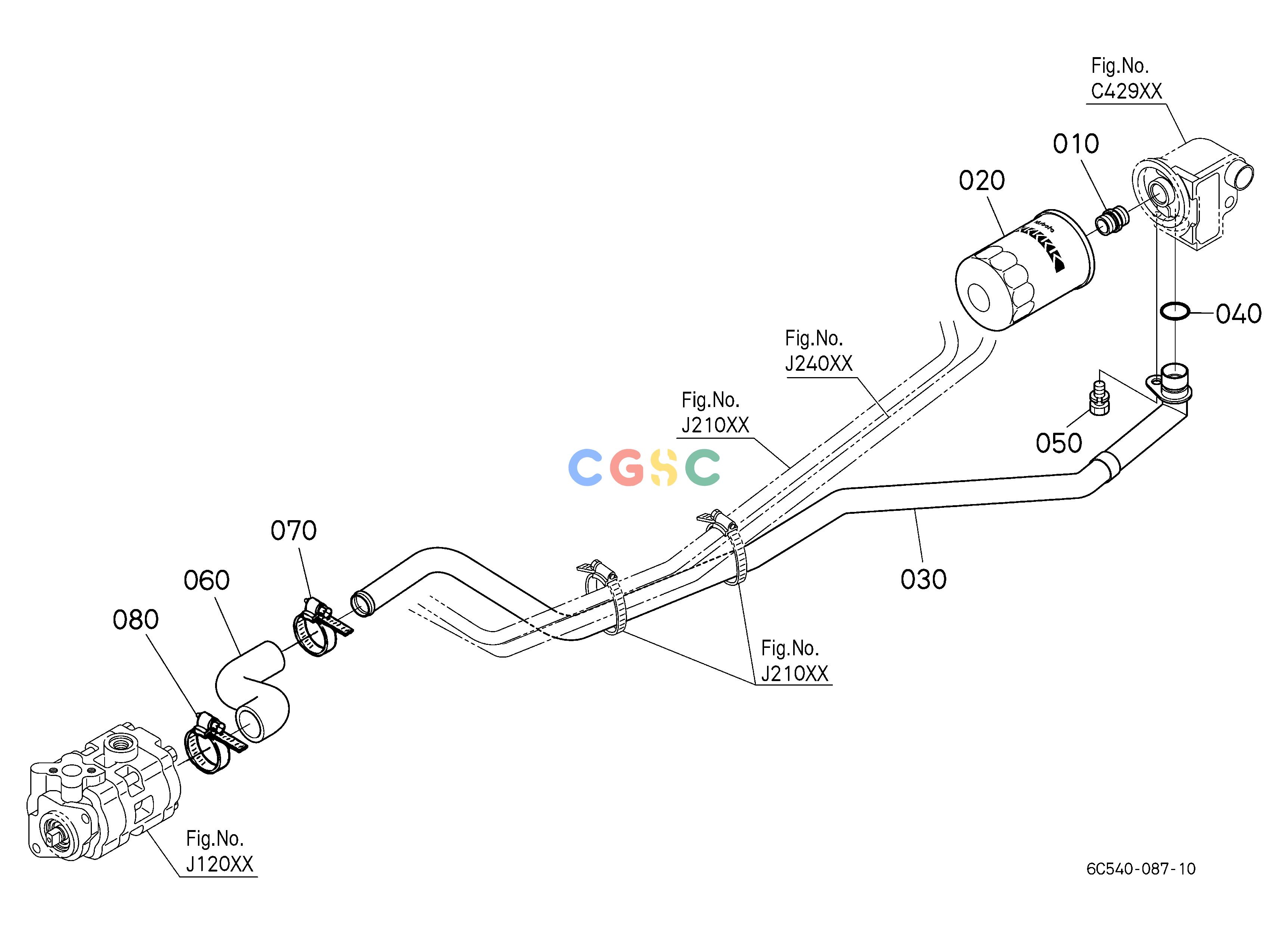

久保田零件查询J20100 HYDRAULIC PIPE (SUCTION) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
258 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3824037780
|
[1] |
JOINT(SCREW)
|
0.0660(lbs); 0.030
|
| 020. |
HH67037710
|
[1] |
FILTER(OIL,CARTRIDGE)
|
0.8140(lbs); 0.370
|
| 030. |
6C54039112
|
[1] |
PIPE(SUCTION)
|
1.5400(lbs); 0.700
|
| 040. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 050. |
0112350816
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 060. |
6C14039150
|
[1] |
HOSE,INLET
|
0.1980(lbs); 0.090
|
| 070. |
6795536230
|
[1] |
CLAMP
|
0.0506(lbs); 0.023
|
| 080. |
6795536230
|
[1] |
CLAMP
|
0.0506(lbs); 0.023
|
