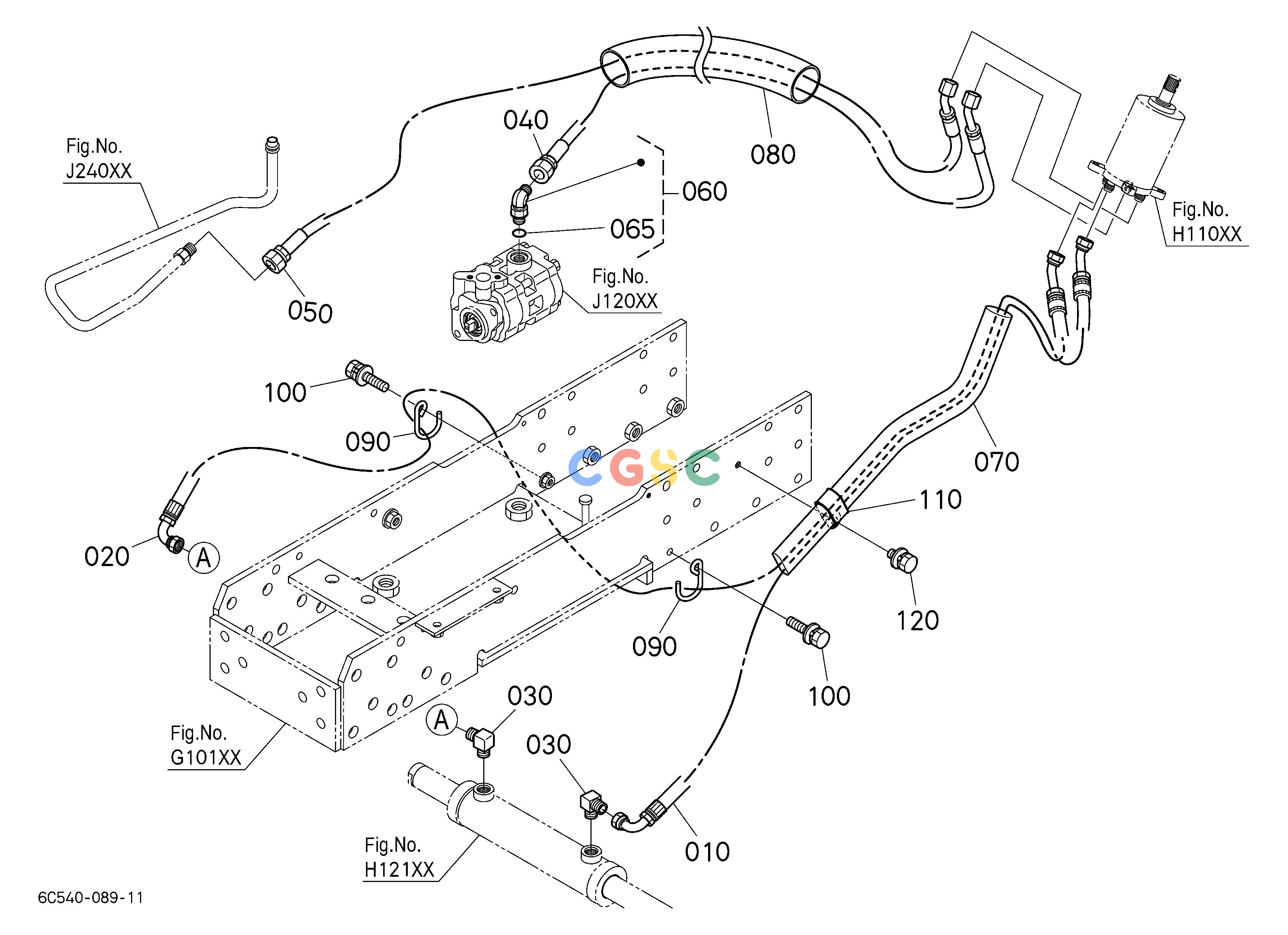

久保田零件查询J21500 HYDRAULIC OIL LINE (STEERING) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C44257510
|
[1] |
HOSE,HYDRAULIC(PS,R)
|
0.7920(lbs); 0.360
|
| 010. |
6C44257513
|
[1] |
HOSE,HYDRAULIC(PS,R)
|
0.7920(lbs); 0.360
|
| 020. |
6C44257520
|
[1] |
HOSE,HYDRAULIC(PS,L)
|
0.9900(lbs); 0.450
|
| 020. |
6C44257522
|
[1] |
HOSE,HYDRAULIC(PS,L)
|
0.9900(lbs); 0.450
|
| 030. |
0611452023
|
[2] |
JOINT
|
0.1100(lbs); 0.050
|
| 040. |
6C40057530
|
[1] |
HOSE,HYDRAULIC(IN,STEERING)
|
0.5940(lbs); 0.270
|
| 040. |
6C40057532
|
[1] |
HOSE,HYDRAULIC(IN,STEERING)
|
0.5940(lbs); 0.270
|
| 050. |
6C41057540
|
[1] |
HOSE,HYD.(OUT,STEERING)
|
0.8030(lbs); 0.365
|
| 050. |
6C41057542
|
[1] |
HOSE,HYDRAULIC
|
0.8030(lbs); 0.365
|
| 060. |
6C54057560
|
[1] |
JOINT,ELBOW
|
0.1320(lbs); 0.060
|
| 060. |
V051168670
|
[1] |
JOINT,PIPE(LGG)
|
0.1210(lbs); 0.055
|
| 065. |
0481700110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
6C20057554
|
[1] |
TUBE,GUARD
|
0.1100(lbs); 0.050
|
| 080. |
6C23057554
|
[1] |
TUBE,GUARD
|
0.0770(lbs); 0.035
|
| 090. |
6C54057570
|
[2] |
HOLDER(HOSE)
|
0.0352(lbs); 0.016
|
| 100. |
0112550830
|
[2] |
BOLT,W SEMS
|
0.0374(lbs); 0.017
|
| 110. |
T027050230
|
[1] |
CLAMP,HOSE
|
0.0462(lbs); 0.021
|
| 120. |
0112550816
|
[1] |
BOLT,W SEMS
|
0.0286(lbs); 0.013
|
