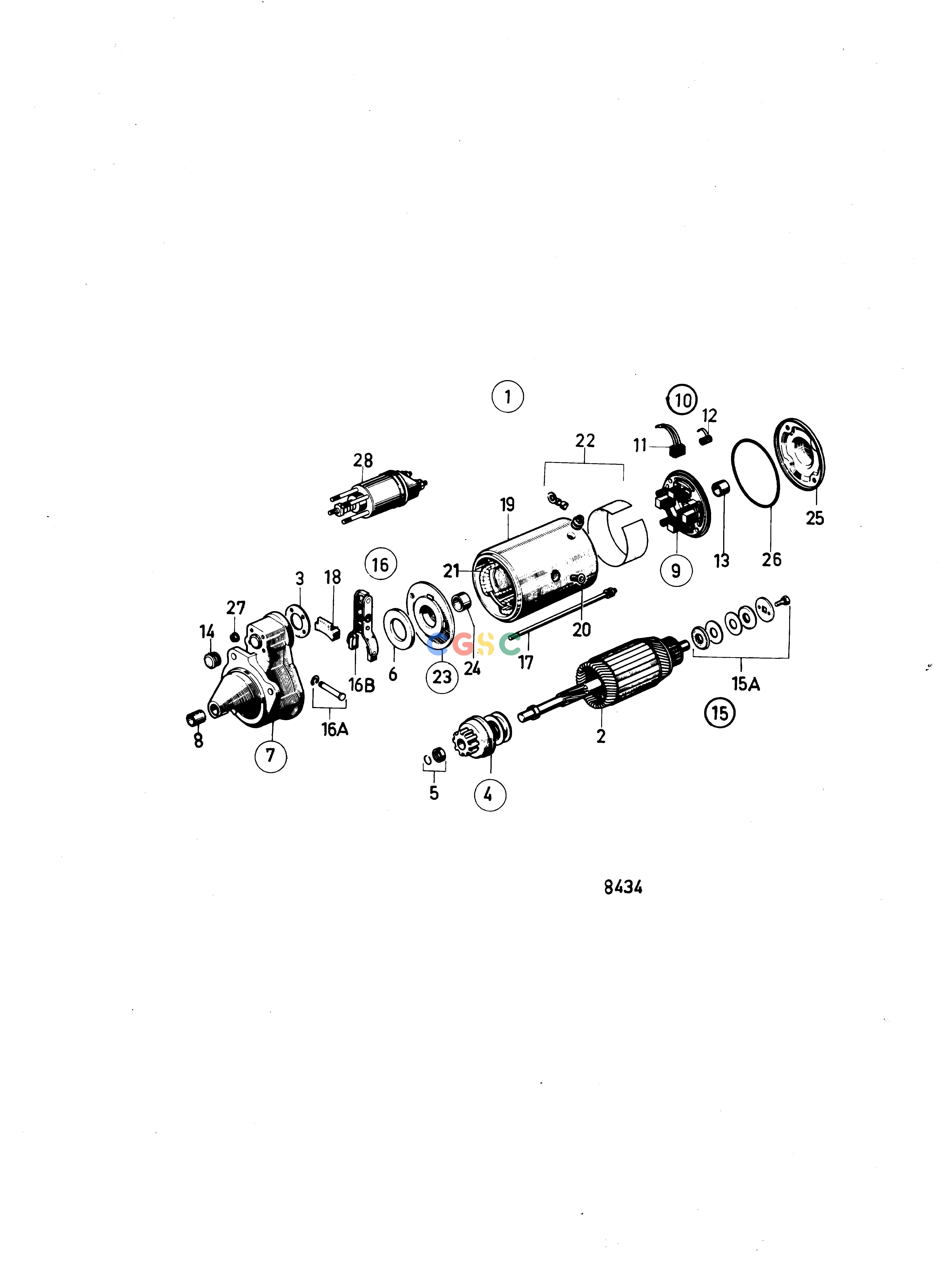

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Electrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829527
|
[1] |
Starter motor
|
|
| 2. |
834843
|
[1] |
Rotor
|
|
| 3. |
834805
|
[1] |
Gasket
|
|
| 4. |
834845
|
[1] |
Starter pinion
|
|
| 5. |
829012
|
[1] |
Set
|
|
| 6. |
834799
|
[1] |
Washer
|
|
| 7. |
834846
|
[1] |
Bearing cover
|
|
| 8. |
818147
|
[1] |
Bushing
|
|
| 9. |
834849
|
[1] |
Armature bearing
|
|
| 10. |
858946
|
[1] |
Brush set
|
|
| 11. |
834853
|
[1] |
Carbon brush set
|
Repl by 858946
|
| |
834854
|
[1] |
Spring kit
|
Repl by 858946
|
| |
818162
|
[1] |
Bushing
|
|
| 14. |
826964
|
[1] |
Bellows
|
|
| 15. |
|
|
|
|
| |
834844
|
[1] |
Vibration damper
|
Repl by 858936
|
| 16. |
859204
|
[1] |
Engagement lever
|
|
| |
829024
|
[1] |
Shaft
|
Repl by 859204
|
| |
829023
|
[1] |
Engagement lever
|
|
| 17. |
834850
|
[1] |
Screw kit
|
|
| 18. |
834851
|
[1] |
Seal
|
|
| 19. |
|
|
|
|
| 20. |
818157
|
[4] |
Screw
|
|
| |
834847
|
[1] |
Field winding
|
|
| 22. |
834848
|
[1] |
Insulating kit
|
|
| 23. |
834803
|
[1] |
Intermediate bearing
|
|
| 24. |
834806
|
[1] |
Bushing
|
|
| 25. |
829017
|
[1] |
Protecting cover
|
|
| 26. |
826986
|
[1] |
Gasket
|
|
| 27. |
829031
|
[1] |
Nut set
|
|
| |
834852
|
[1] |
Actuator solenoid
|
|
