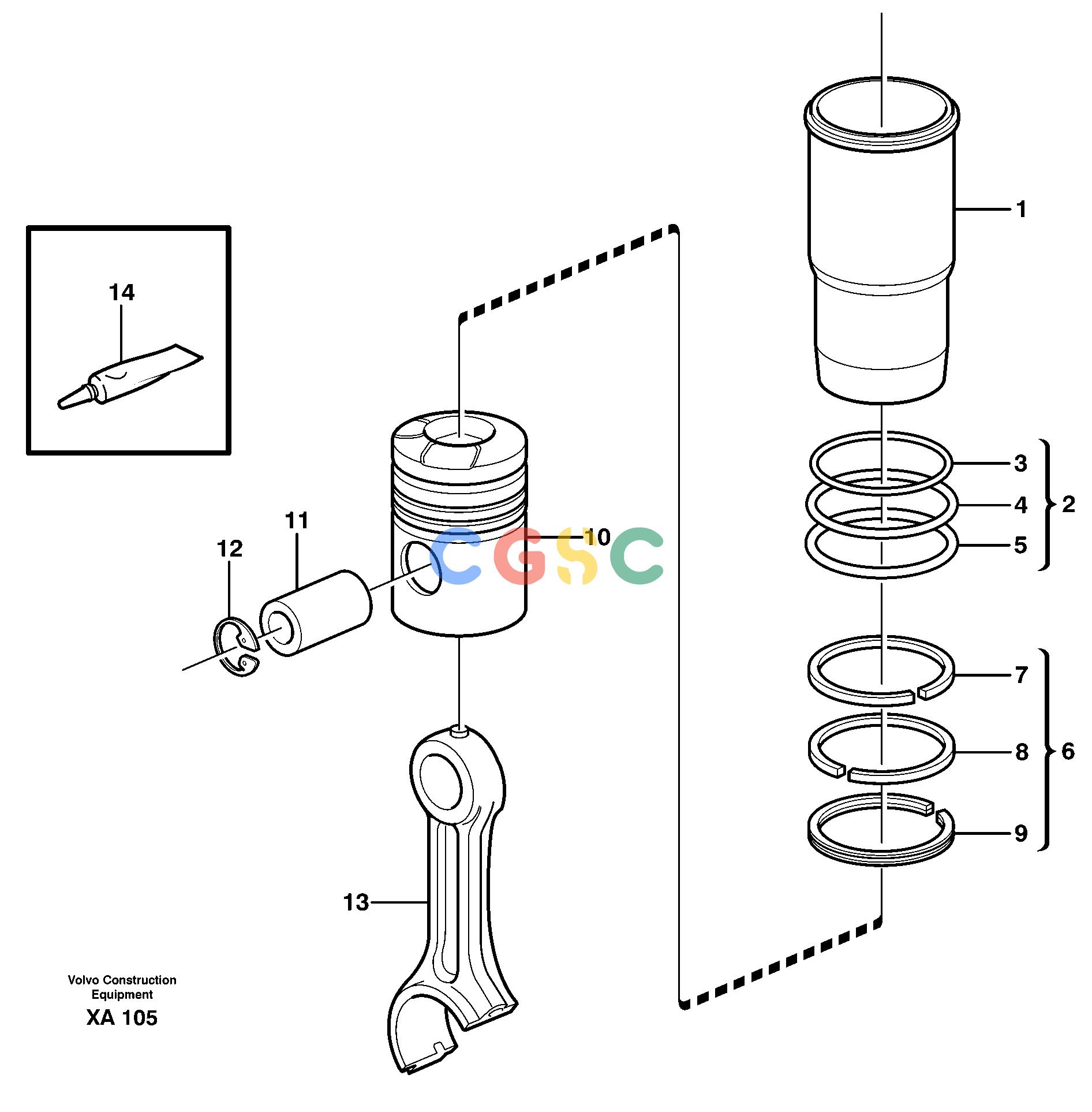

沃尔沃零件查询EC360B Cylinder liner and pistonSER NO INT 12152-13919 EU&NA 80001-810378280231-8280232NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11713964
|
[6] |
Cylinder liner kit
|
|
| |
VOE11714584
|
|
Cylinder liner kit
|
|
| 1. |
VOE20498544
|
[6] |
Cylinder liner
|
|
| 2. |
VOE270950
|
[6] |
Sealing kit
|
|
| 3. |
|
[6] |
Seal Ring
|
|
| 4. |
VOE470190
|
[12] |
Sealing ring
|
|
| 5. |
|
[6] |
Sealing ring
|
|
| 6. |
VOE85103624
|
[6] |
Piston ring kit
|
|
| |
VOE85103174
|
|
Piston ring kit
|
|
| 7. |
|
[6] |
Compression ring
|
|
| 8. |
|
[6] |
Compression ring
|
LOW
|
| 9. |
|
[6] |
Oil scraper ring
|
|
| 10. |
|
[6] |
Piston
|
|
| 11. |
VOE3155115
|
[6] |
Gudgeon pin
|
|
| 12. |
VOE914530
|
[12] |
Retaining ring
|
|
| 13. |
|
[6] |
Connecting rod
|
|
| 14. |
|
[REQ] |
Sealing Kit
|
|
