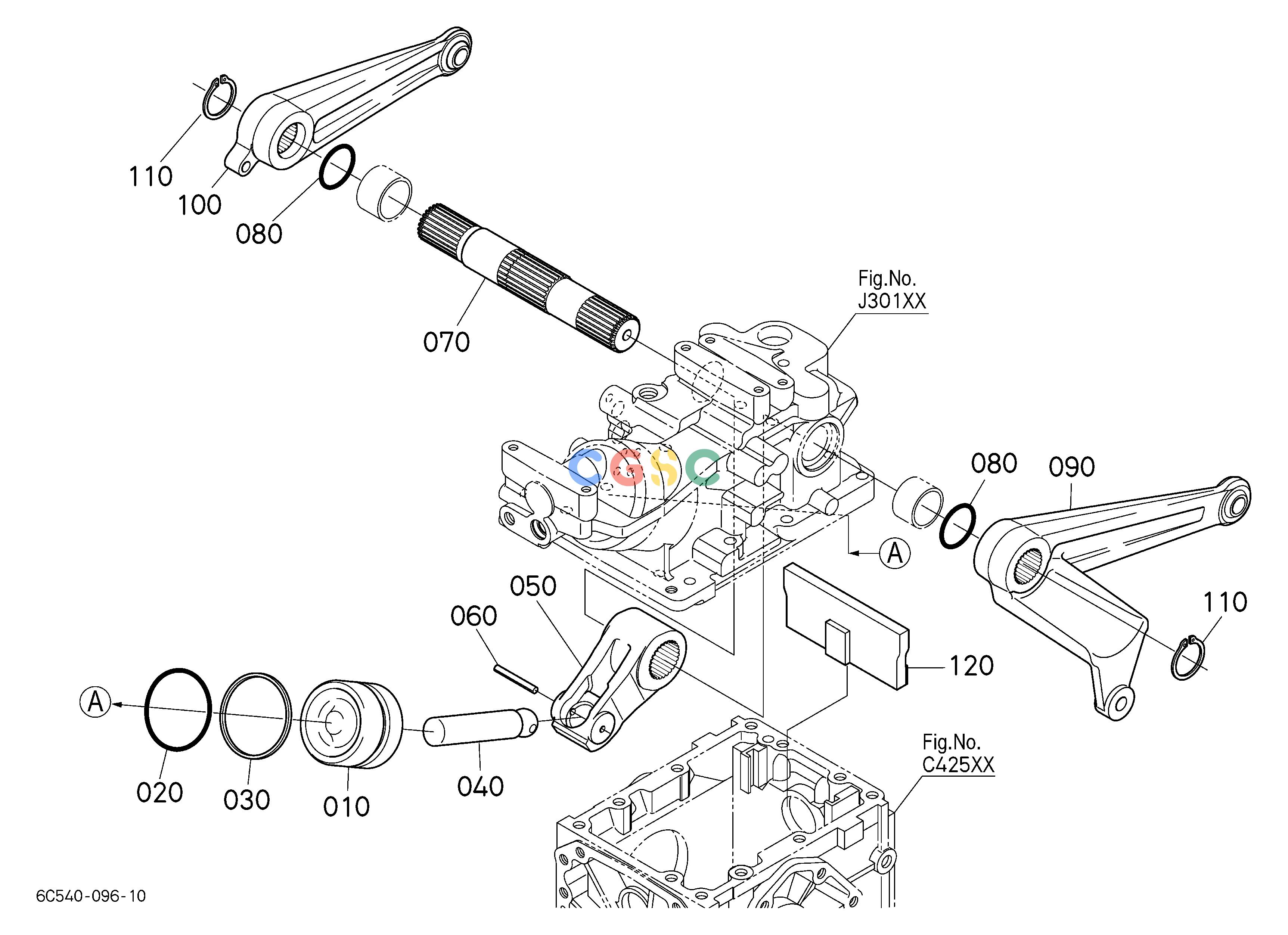

久保田零件查询J31000 HYDRAULIC PISTON/LIFT ARM PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
537 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3132137310
|
[1] |
PISTON(HYDRAULIC)
|
2.3760(lbs); 1.080
|
| 020. |
0481100650
|
[1] |
RING
|
0.0154(lbs); 0.007
|
| 030. |
6A67136250
|
[1] |
RING,BACK UP
|
0.0088(lbs); 0.004
|
| 040. |
6A70036430
|
[1] |
ROD,HYD.PISTON
|
1.0560(lbs); 0.480
|
| 050. |
6A70036454
|
[1] |
ARM,HYDRAULIC
|
2.7720(lbs); 1.260
|
| 060. |
0541100650
|
[1] |
PIN,SPRING
|
0.0132(lbs); 0.006
|
| 070. |
6C20036470
|
[1] |
SHAFT(HYD.ARM)
|
4.0700(lbs); 1.850
|
| 080. |
3741036340
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
| 090. |
6C54036510
|
[1] |
ARM(LIFT LH)
|
6.7540(lbs); 3.070
|
| 100. |
6A70036520
|
[1] |
ARM(LIFT RH)
|
4.8400(lbs); 2.200
|
| 110. |
0461200350
|
[2] |
CIR-CLIP,EXTERNAL
|
0.0220(lbs); 0.010
|
| 120. |
6C20036750
|
[1] |
STOPPER
|
0.8800(lbs); 0.400
|
