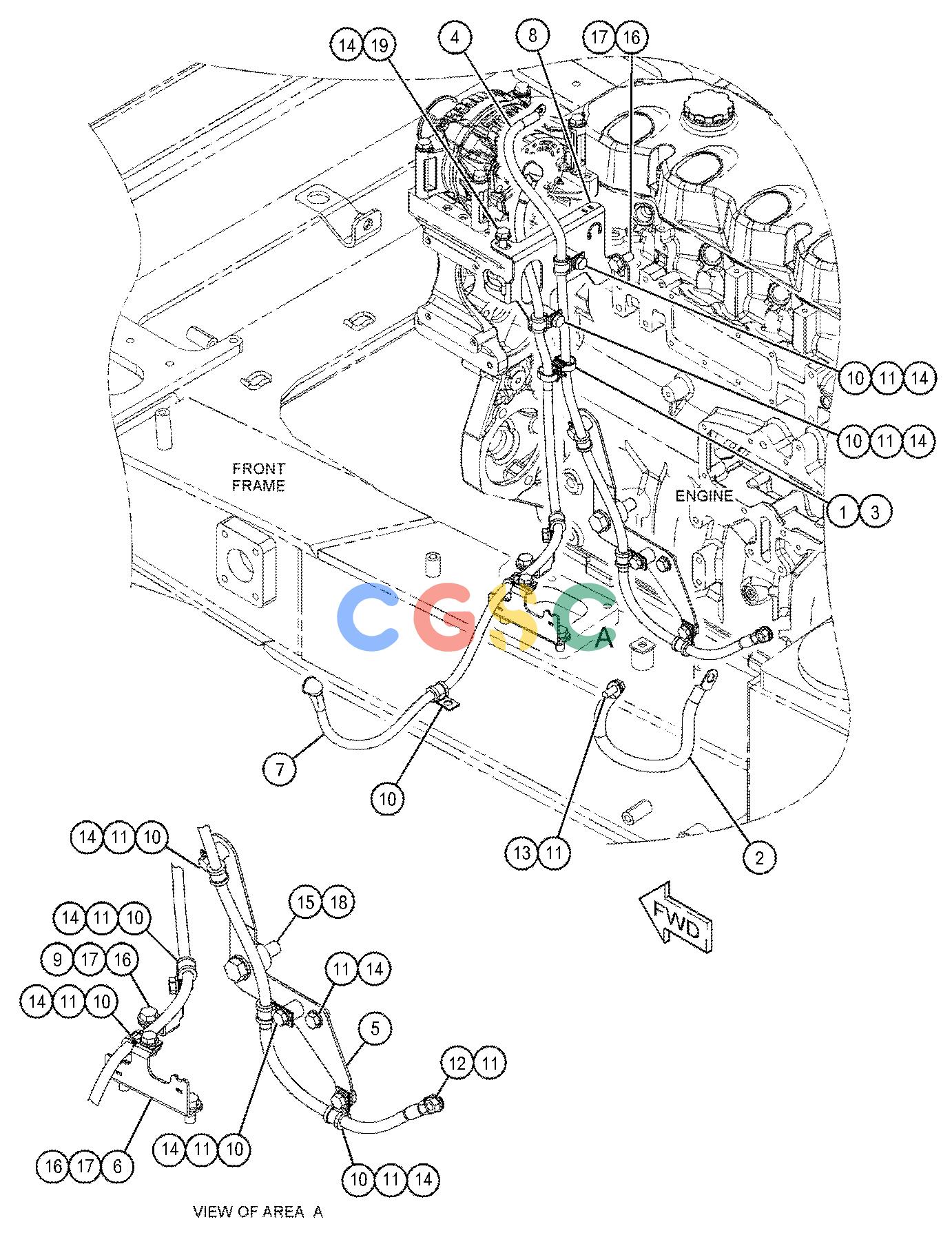

卡特零件查询（725C） 433-6976: WIRING GP-ALTERNATOR
广数供应链运营团队, 14 02月, 2025，浏览：
562 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 170-9328 | [1] | STRAP AS-GROUND | |
| 3. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 4. | 440-2047 | [1] | CABLE AS | |
| | 8C-0596E | | CABLE(2-GA)(112-CM) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 311-6185 | [1] | TERMINAL AS | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| 5. | 440-2050 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2672M | [2] | BOSS-THREADED(M10X1.5X120-MM) | |
| 6. | 442-9890 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 7. | 444-7878 | [1] | CABLE AS | |
| | 135-2543 | [2] | BOOT(RED) | |
| | 8C-3056E | | CABLE(2-GA, RED)(120-CM) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 6T-5598 | [1] | TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| 8. | 444-7879 | [1] | PLATE AS | |
| | 7T-1099 | [1] | LINK | |
| 9. | 445-1033 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 10. | 349-1209 | [8] | CLIP | |
| 11. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 13. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 14. | 8T-4137M | [9] | BOLT(M10X1.5X20-MM) | |
| 15. | 8T-4140M | [1] | BOLT(M16X2X60-MM) | |
| 16. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 17. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| 19. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
