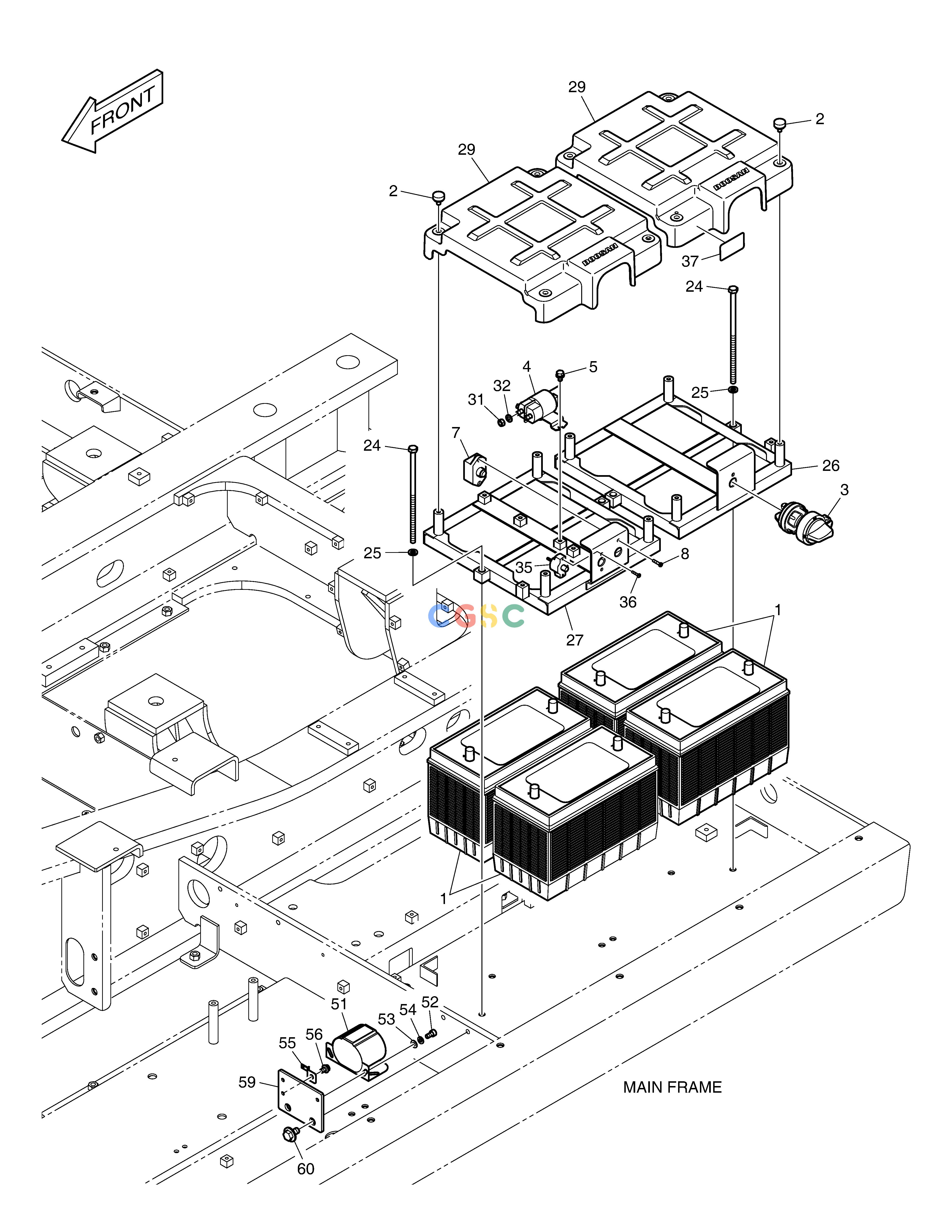

斗山零件查询ELECTRIC PARTS - RELATED(1500CCA) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02804
|
[-] |
|
|
| 1. |
K1025096
|
[4] |
BATTERY
|
|
| 2. |
K1003427
|
[8] |
BOLT
|
|
| 24. |
DS0001088
|
[4] |
BOLT
|
|
| 25. |
S5010613
|
[4] |
WASHER
|
|
| 26. |
110406-03186
|
[1] |
|
|
| 26. |
110406-03186A
|
[1] |
|
110406-03186B
|
| 26. |
110406-03186B
|
[1] |
|
|
| 27. |
110406-03187
|
[1] |
|
|
| 29. |
110508-19473
|
[2] |
|
|
| 3. |
K1057605
|
[1] |
|
|
| 31. |
S4012533
|
[2] |
NUT
|
|
| 32. |
S5102503
|
[2] |
. WASHER
|
|
| 35. |
300708-00341
|
[1] |
|
|
| 36. |
2120-1354
|
[2] |
SCREW
|
|
| 37. |
600105-00002
|
[1] |
|
|
| 4. |
301202-00153
|
[1] |
RELAY,BATTERY
|
|
| 5. |
DS0025044
|
[2] |
BOLT
|
|
| 51. |
516-00011
|
[1] |
BUZZER
|
|
| 52. |
S2208666
|
[2] |
BOLT
|
|
| 53. |
S5010513
|
[2] |
WASHER
|
|
| 54. |
S5102503
|
[2] |
. WASHER
|
|
| 55. |
2197-1661
|
[1] |
BRACKET
|
|
| 56. |
K1001029
|
[1] |
BOLT
|
|
| 59. |
110406-03192
|
[1] |
|
|
| 60. |
DS0025015
|
[2] |
BOLT
|
|
| 7. |
300708-00016
|
[1] |
|
|
| 8. |
K1056613
|
[2] |
SCREW
|
|
