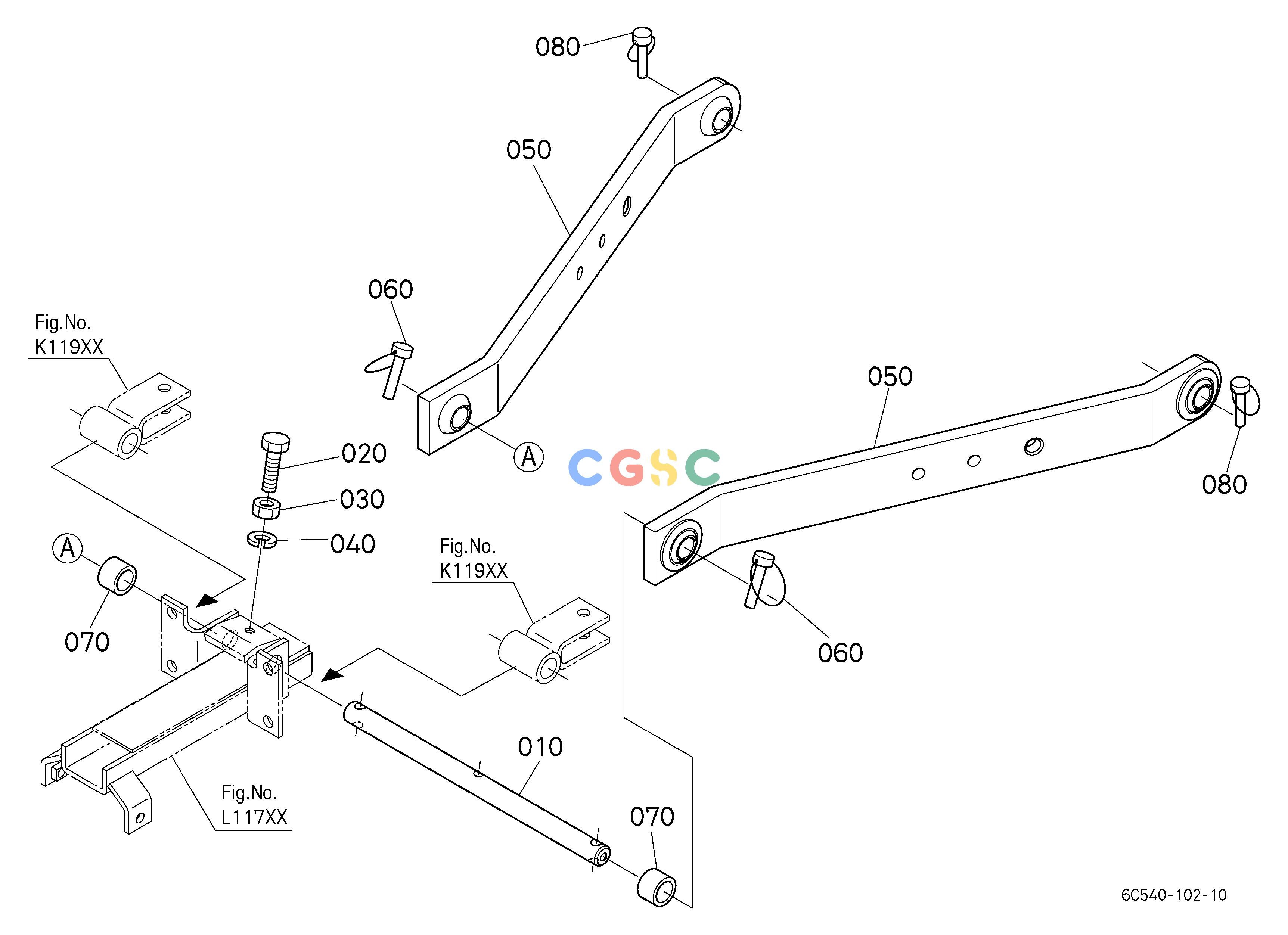

久保田零件查询K11500 LOWER LINK TOP LINK/LOWER LINK/HITCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54066010
|
[1] |
PIN(LOWER LINK)
|
2.2440(lbs); 1.020
|
| 020. |
6C04065122
|
[1] |
BOLT
|
0.0418(lbs); 0.019
|
| 030. |
0201850100
|
[1] |
NUT
|
0.0242(lbs); 0.011
|
| 040. |
0451250100
|
[1] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 050. |
6C39265213
|
[2] |
COMP.LINK,LOWER
|
11.6600(lbs); 5.300
|
| 060. |
3415037640
|
[2] |
PIN,SET
|
0.1320(lbs); 0.060
|
| 070. |
6C54066020
|
[2] |
SPACER
|
0.1386(lbs); 0.063
|
| 080. |
3415037640
|
[2] |
PIN,SET
|
0.1320(lbs); 0.060
|
