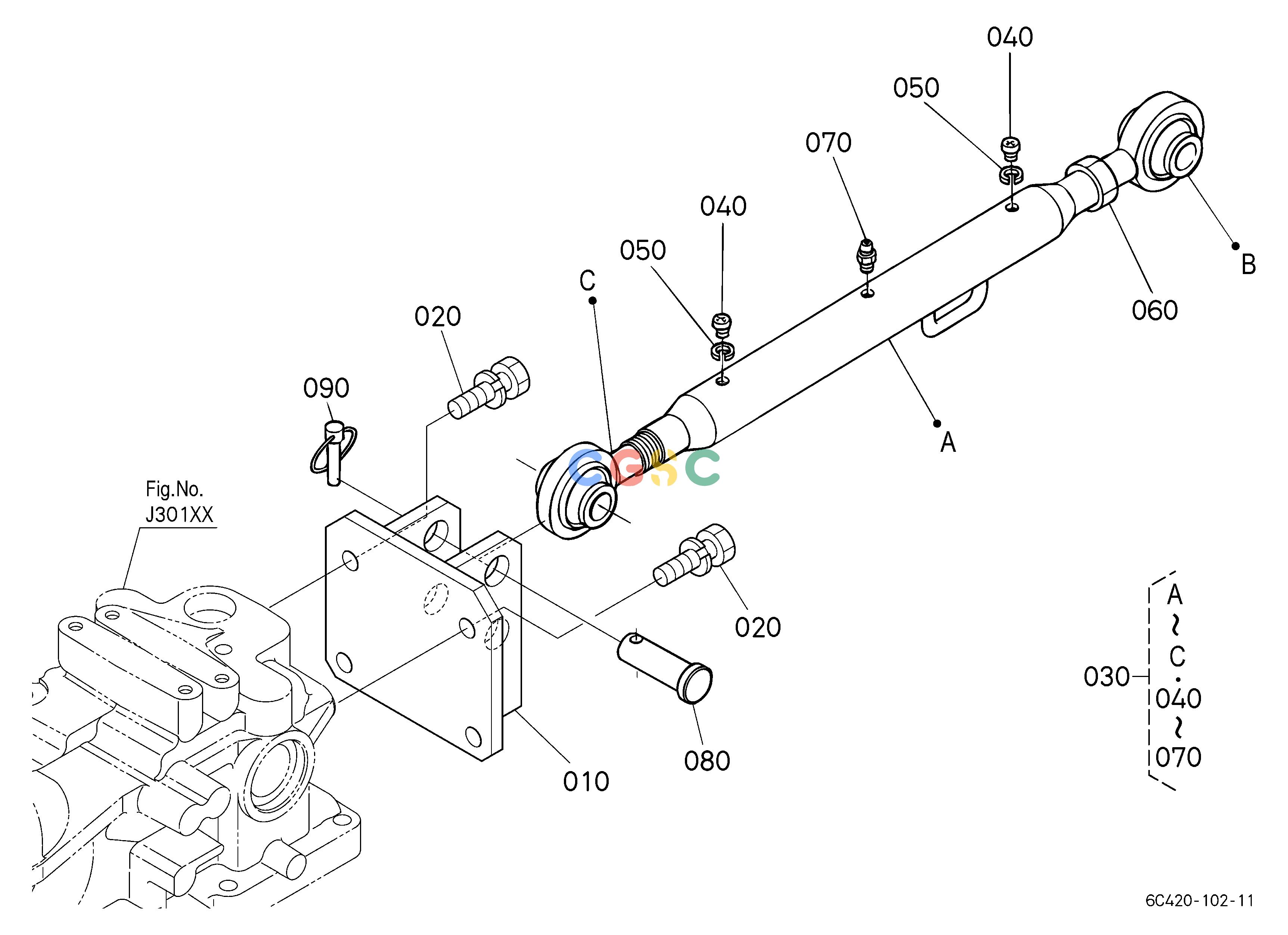

久保田零件查询K12000 TOP LINK TOP LINK/LOWER LINK/HITCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
828 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43065162
|
[1] |
BRACKET(TOP LINK)
|
4.4660(lbs); 2.030
|
| 020. |
0112351230
|
[4] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 030. |
6C20065400
|
[1] |
ASSY LINK,TOP
|
4.6200(lbs); 2.100
|
| 040. |
0301450606
|
[2] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0594(lbs); 0.027
|
| 050. |
0451250060
|
[2] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
| 060. |
0215250200
|
[1] |
NUT
|
0.0704(lbs); 0.032
|
| 070. |
0661310675
|
[1] |
NIPPLE,GREASE
|
0.0066(lbs); 0.003
|
| 080. |
3115071360
|
[2] |
PIN,JOINT
|
0.3652(lbs); 0.166
|
| 090. |
3415037640
|
[2] |
PIN,SET
|
0.1320(lbs); 0.060
|
