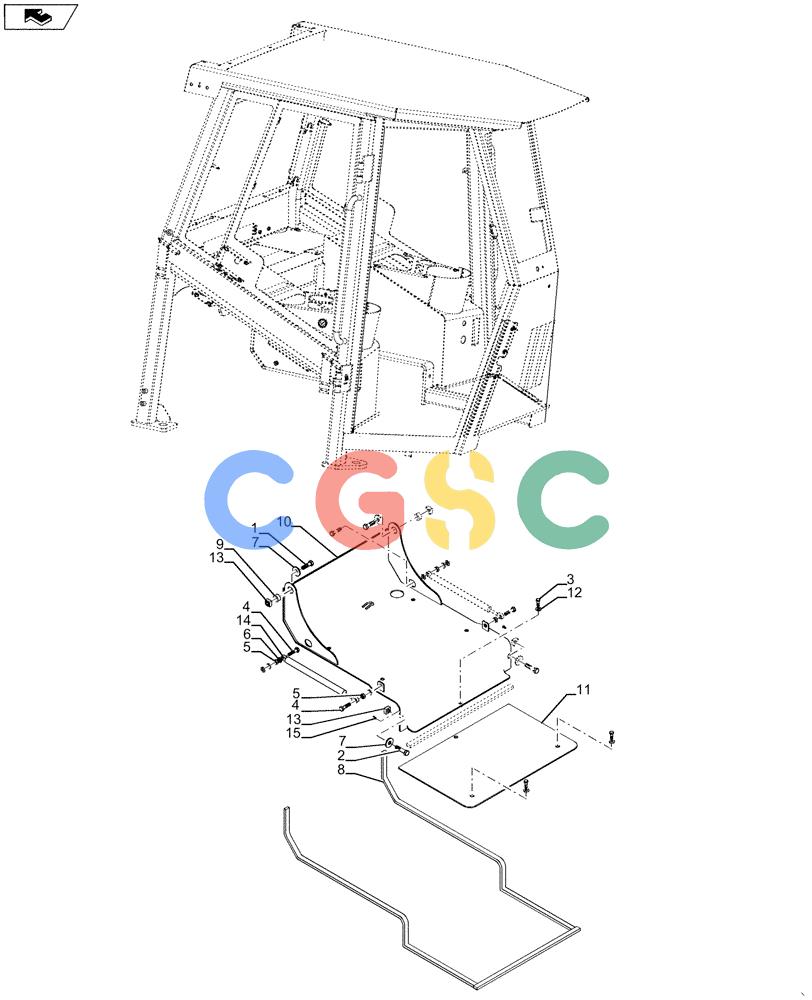

纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (90.150.AW[01]) - FLOOR, ASSY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
825 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 614-12040 | [2] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd | IH Superseded by part number: 86629541 |
| 2. | 614-12050 | [2] | BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd | CAS Superseded by part number: 87342144 |
| 3. | 614-8025 | [3] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43127 |
| 4. | 814-10040 | [4] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8 | CAS Superseded by part number: 120112 |
| 5. | 829-1410 | [4] | NUT,M10 x 1.5, Cl 10.9 | CAS Superseded by part number: 86500689 |
| 6. | 895-11010 | [8] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 7. | 895-25012 | [4] | WASHER,M12 x 37 x 3 | CAS Superseded by part number: 87016607 |
| 8. | 187874C1 | [1] | GASKET | IHCut To Length 110' |
| 9. | 84160827 | [2] | SPACER | BUR |
| 10. | 84339943 | [1] | SEAT PLATE | BUR |
| 11. | 84391326 | [1] | PLATE | BUR |
| 12. | 86639316 | [3] | WASHER,8.4mm ID x 20mm OD x 2mm Thk | GI |
| 13. | 87447306 | [4] | SQUARE NUT | CAS |
| 14. | 247992A2 | [2] | GAS STRUT,610mm Extended, 380mm Compressed | CAS |
| 15. | 336371A1 | [2] | PIN | CAS |
