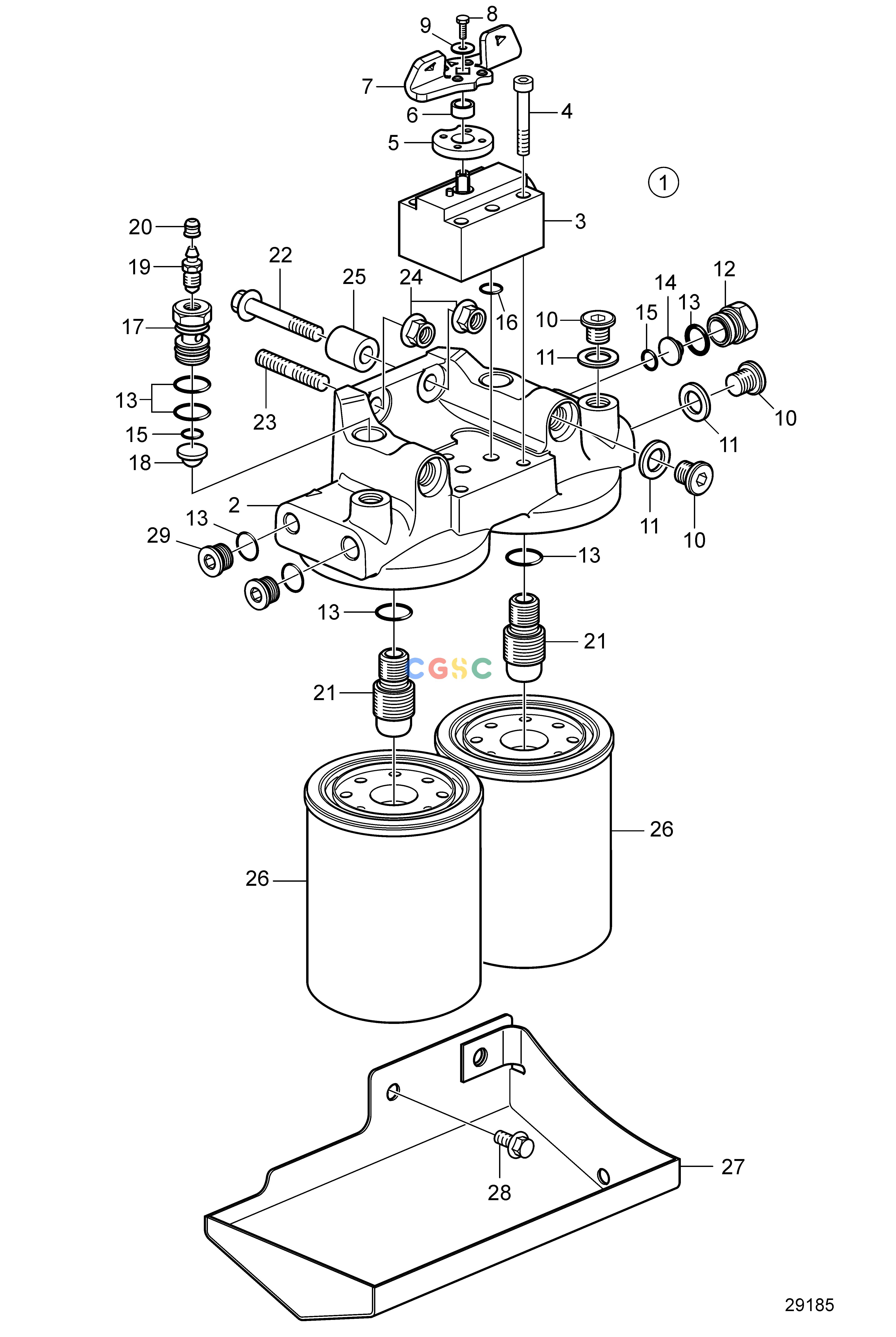

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Fuel SystemFuel Filter Housing, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21364381
|
[1] |
Fuel filter housing
|
Replaced by 22341280
|
| 1. |
22341280
|
[1] |
Fuel filter housing
|
|
| 2. |
|
|
|
|
| 3. |
3835369
|
[1] |
Valve body
|
|
| 4. |
959227
|
[3] |
Hex. socket screw
|
|
| 5. |
21680974
|
[1] |
Plate
|
|
| 6. |
21695701
|
[1] |
Spacer
|
|
| 7. |
21698872
|
[1] |
Handle
|
|
| 8. |
984548
|
[1] |
Hexagon screw
|
|
| 9. |
960137
|
[1] |
Washer
|
|
| 10. |
966143
|
[5] |
Plug
|
|
| 11. |
20852765
|
[5] |
Sealing ring
|
|
| 12. |
21140340
|
[1] |
Nipple
|
|
| 13. |
1526474
|
[8] |
O-ring
|
|
| 14. |
21113993
|
[1] |
Non-return valve
|
|
| 15. |
976971
|
[3] |
O-ring
|
|
| 16. |
944364
|
[3] |
O-ring
|
|
| 17. |
3835370
|
[2] |
Nipple
|
|
| 18. |
244834
|
[2] |
Non-return valve
|
|
| 19. |
20548012
|
[2] |
Faucet
|
|
| 20. |
20547976
|
[2] |
Protecting cover
|
|
| 21. |
21511163
|
[2] |
Nipple
|
|
| 22. |
984757
|
[1] |
Flange screw
|
|
| 23. |
953071
|
[1] |
Stud
|
|
| 24. |
990941
|
[2] |
Flange nut
|
|
| 25. |
843028
|
[1] |
Spacer sleeve
|
|
| 26. |
22377272
|
[2] |
Fuel filter
|
|
| 27. |
21874376
|
[1] |
Spill plate
|
|
| 28. |
984733
|
[2] |
Flange screw
|
|
| 29. |
23026296
|
[1] |
Adapter
|
|
