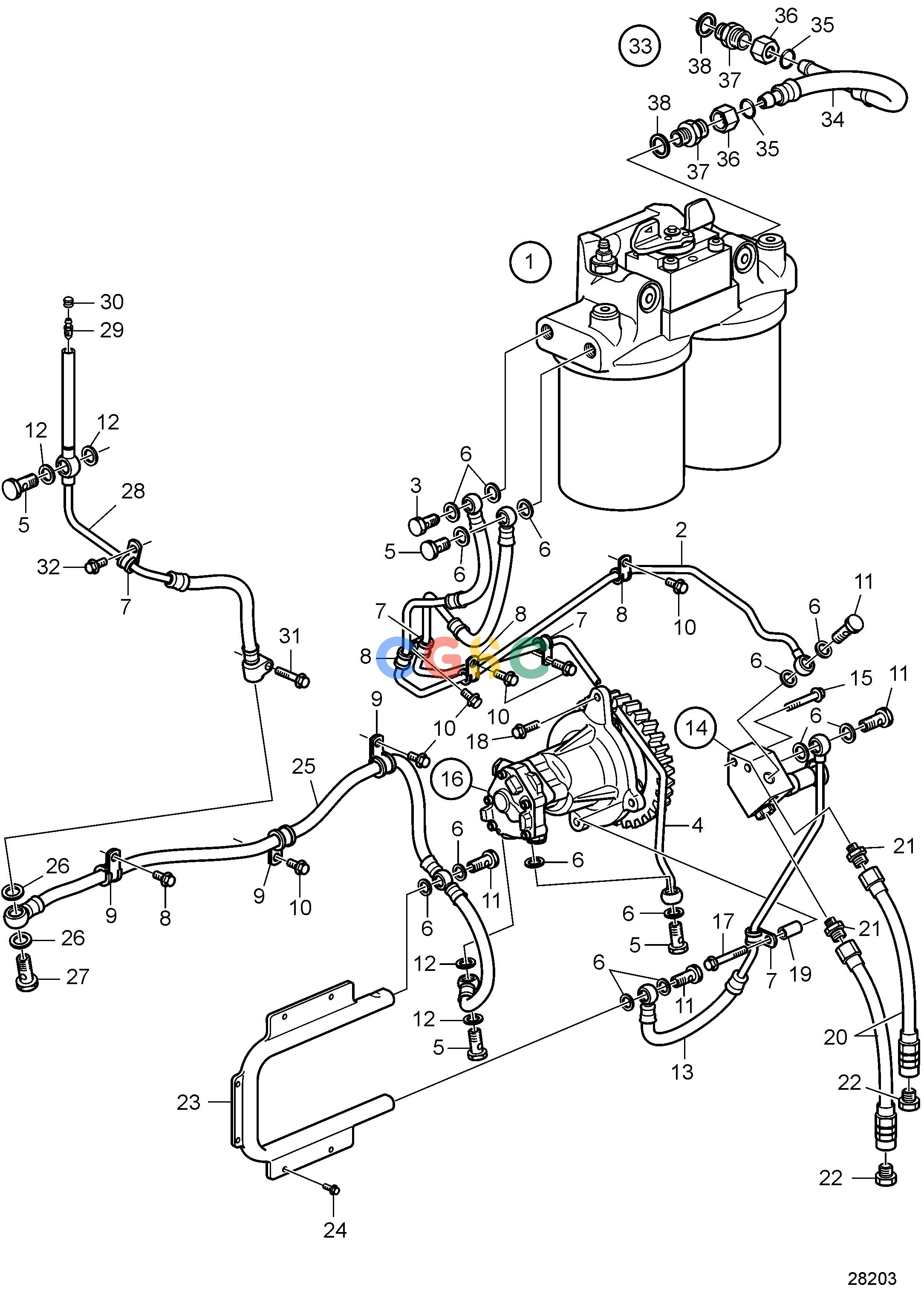

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Fuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
144 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21364381
|
[1] |
Fuel filter housing
|
|
| 2. |
3889682
|
[1] |
Fuel pipe
|
|
| 3. |
3594288
|
[1] |
Valve
|
|
| 4. |
21385273
|
[1] |
Air vent hose
|
|
| 5. |
991046
|
[3] |
Hollow screw
|
|
| 6. |
20852764
|
[16] |
Sealing ring
|
|
| 7. |
942542
|
[3] |
Clamp
|
|
| 8. |
942400
|
[3] |
Clamp
|
|
| 9. |
949747
|
[3] |
Clamp
|
|
| 10. |
984733
|
[7] |
Flange screw
|
|
| 11. |
991048
|
[4] |
Hollow screw
|
|
| 12. |
20852765
|
[4] |
Sealing ring
|
|
| 13. |
21163011
|
[1] |
Fuel hose
|
|
| 14. |
3889704
|
[1] |
Housing
|
|
| 15. |
994386
|
[2] |
Flange screw
|
|
| 16. |
22677520
|
[1] |
Fuel pump
|
|
| 17. |
994386
|
[1] |
Flange screw
|
|
| 18. |
984736
|
[2] |
Flange screw
|
L=30mm
|
| 19. |
852660
|
[1] |
Spacer sleeve
|
|
| 20. |
3826595
|
[2] |
Fuel hose
|
|
| 21. |
977677
|
[2] |
Nipple
|
|
| 22. |
22753
|
[2] |
Nipple
|
|
| 23. |
20562394
|
[1] |
Radiator
|
Replaced by 21251350
|
| 23. |
21251350
|
[1] |
Radiator
|
|
| 24. |
994264
|
[6] |
Flange screw
|
|
| 25. |
3889699
|
[1] |
Fuel hose
|
|
| 26. |
20852765
|
[2] |
Sealing ring
|
|
| 27. |
21088049
|
[1] |
Overflow valve
|
|
| 28. |
22040155
|
[1] |
Fuel hose
|
For D13B-F MG
|
| 28. |
22037739
|
[1] |
Fuel hose
|
For D13B-E MH, For D13B-N MH, For D13B-E MG
|
| 29. |
20548012
|
[1] |
Faucet
|
|
| 30. |
20547976
|
[1] |
Protecting cover
|
|
| 31. |
984738
|
[1] |
Flange screw
|
|
| 32. |
984732
|
[1] |
Flange screw
|
|
| 33. |
21401343
|
[1] |
Fuel hose
|
|
| 34. |
3830315
|
[1] |
Hose
|
L=240mm
|
| 35. |
976971
|
[2] |
O-ring
|
|
| 36. |
956984
|
[2] |
Fitting nut
|
|
| 37. |
963948
|
[2] |
Nipple
|
|
| 38. |
20852765
|
[2] |
Sealing ring
|
|
