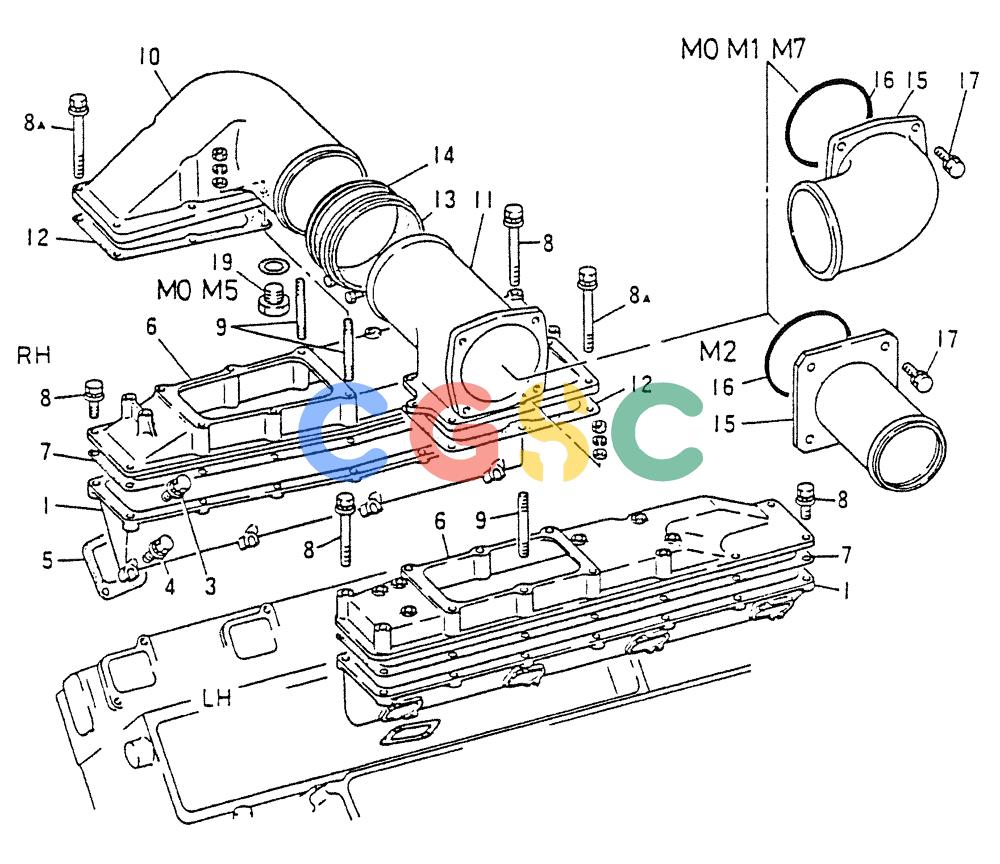

神钢零件查询(8DC9) - MITSUBISHI DIESEL ENGINE - K914 & K975 (1/79-12/06) (01-017) - INLET MANIFOLD Kobelco
广数供应链运营团队, 18 02月, 2025，浏览：
146 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3123032301 | [2] | MANIFOID,INLET | |
| 3. | VAMF302525 | [8] | BOLT | KOBBOLT,W/WSR 10X30 |
| 4. | VAMF302529 | [8] | BOLT BOLT,W/WSR 10X40 | BOLT BOLT,W/WSR 10X40 |
| 5. | VA3123036200 | [8] | GASKET GASKET,INLET MANIF | GASKET GASKET,INLET MANIF |
| 6. | VAME063671 | [1] | COVER,INLET MANIF LH | |
| . . | VAME063670 | [1] | RH | |
| 7. | VAME063435 | [2] | GASKET | KOBGASKET,COVER |
| 8. | VAMF243655 | [7] | BOLT | KOBBOLT,W/WSR 8X30 |
| . . | VAMF243665 | [7] | BOLT | KOB8X70 |
| 8A. | VAMH000304 | [7] | BOLT | KOBBOLT,W/WSR 8X110 |
| . . | VAMH000114 | [2] | BOLT,W/WSR 8X121 | |
| 9. | VA3123071700 | [5] | STUD STUD 8X104 | STUD STUD 8X104 |
| . . | VAMF430005 | [5] | NUT | KOBNUT 8 Superseded by part number: VAF230008000 |
| . . | VAMF450405 | [5] | WASHER | KOBWASHER,SPG 8 Superseded by part number: 132502A1 |
| . . | VAMF450005 | [5] | WASHER | KOBPLAIN 8 |
| 10. | VAME069881 | [1] | MANIFOLD, UPPER RH MANIFOLD,UPPER RH | MANIFOLD, UPPER RH MANIFOLD,UPPER RH |
| 11. | VAME069880 | [1] | MANIFOLD,UPPER LH | |
| 12. | VAME067780 | [2] | GASKET | KOBGASKET,UPPER MANIF |
| 13. | VA3123068300 | [1] | HOSE | KOBHOSE,RUBBER (FOR M0, M1, M2 ONLY) |
| . . | VAME063020 | [1] | (FOR M5, M7 ONLY) | |
| 14. | VAMH020399 | [2] | CLIP, HOSE CLIP,HOSE | CLIP, HOSE CLIP,HOSE |
| 15. | VAME069394 | [1] | COUPLER,INLET (FOR M0, M1, M7 ONLY) | |
| . . | VAME060940 | [1] | ELBOW | KOB(FOR M2 ONLY), Start Year: 01-NOV-84 |
| . . | VAME060563 | [1] | (FOR M2 ONLY) | |
| 16. | VAMF520421 | [1] | O-RING | KOBO-RING 125 (FOR M0, M1, M2 ONLY) |
| 17. | VAMF300005 | [4] | BOLT,W/WSR 10X30 (FOR M0, M1, M2 ONLY) | |
| 19. | VAMH037723 | [1] | PLUG | KOBPLUG (FOR M0, M5 ONLY) |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 (FOR M0, M5 ONLY |
