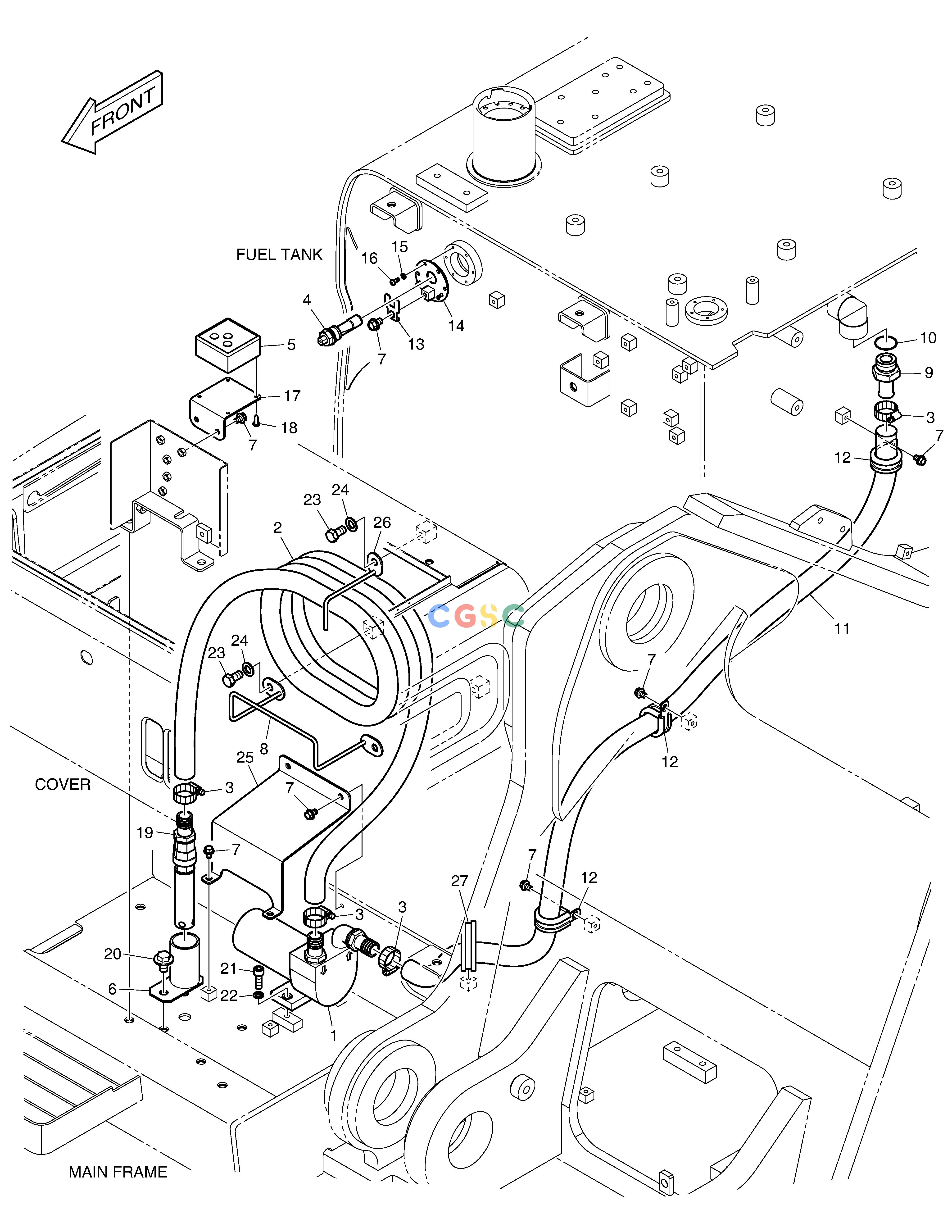

斗山零件查询FUEL FILLER PUMP DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400909-00102
|
[-] |
|
|
| 1. |
401-00527
|
[1] |
PUMP;FUEL TRANSFER
|
|
| 10. |
S8000291
|
[1] |
O-RING
|
|
| 11. |
2185-1247D45
|
[1] |
HOSE 25.4-34.93-1600L
|
|
| 12. |
124-00208D6
|
[3] |
CLIP
|
|
| 13. |
250201-00137A
|
[1] |
|
|
| 14. |
110508-00245A
|
[1] |
|
|
| 15. |
S5100203
|
[6] |
WASHER
|
|
| 16. |
S3450833
|
[6] |
BOLT
|
|
| 17. |
110406-00095
|
[1] |
|
|
| 18. |
S3640352
|
[4] |
|
|
| 19. |
421-00023
|
[1] |
VALVE ASS'Y;CHECK
|
|
| 2. |
185-00412D1
|
[1] |
HOSE;FUEL
|
|
| 20. |
DS0025015
|
[1] |
BOLT
|
|
| 21. |
S2212266
|
[2] |
BOLT
|
|
| 22. |
S5110603
|
[2] |
WASHER
|
|
| 23. |
S0515066
|
[3] |
BOLT
|
|
| 24. |
S5010713
|
[3] |
WASHER;PLAIN
|
|
| 25. |
110406-02775A
|
[1] |
|
|
| 26. |
110406-02837
|
[1] |
|
|
| 27. |
124-00208D8
|
[1] |
CLIP
|
|
| 3. |
S8470038
|
[4] |
|
|
| 4. |
301412-00004
|
[1] |
|
|
| 5. |
300609-00005
|
[1] |
|
|
| 6. |
110420-00036
|
[1] |
|
|
| 7. |
K1001029
|
[10] |
BOLT
|
|
| 8. |
K1011080
|
[1] |
BRACKET
|
|
| 9. |
2181-2104D8
|
[1] |
ADAPTER
|
|
