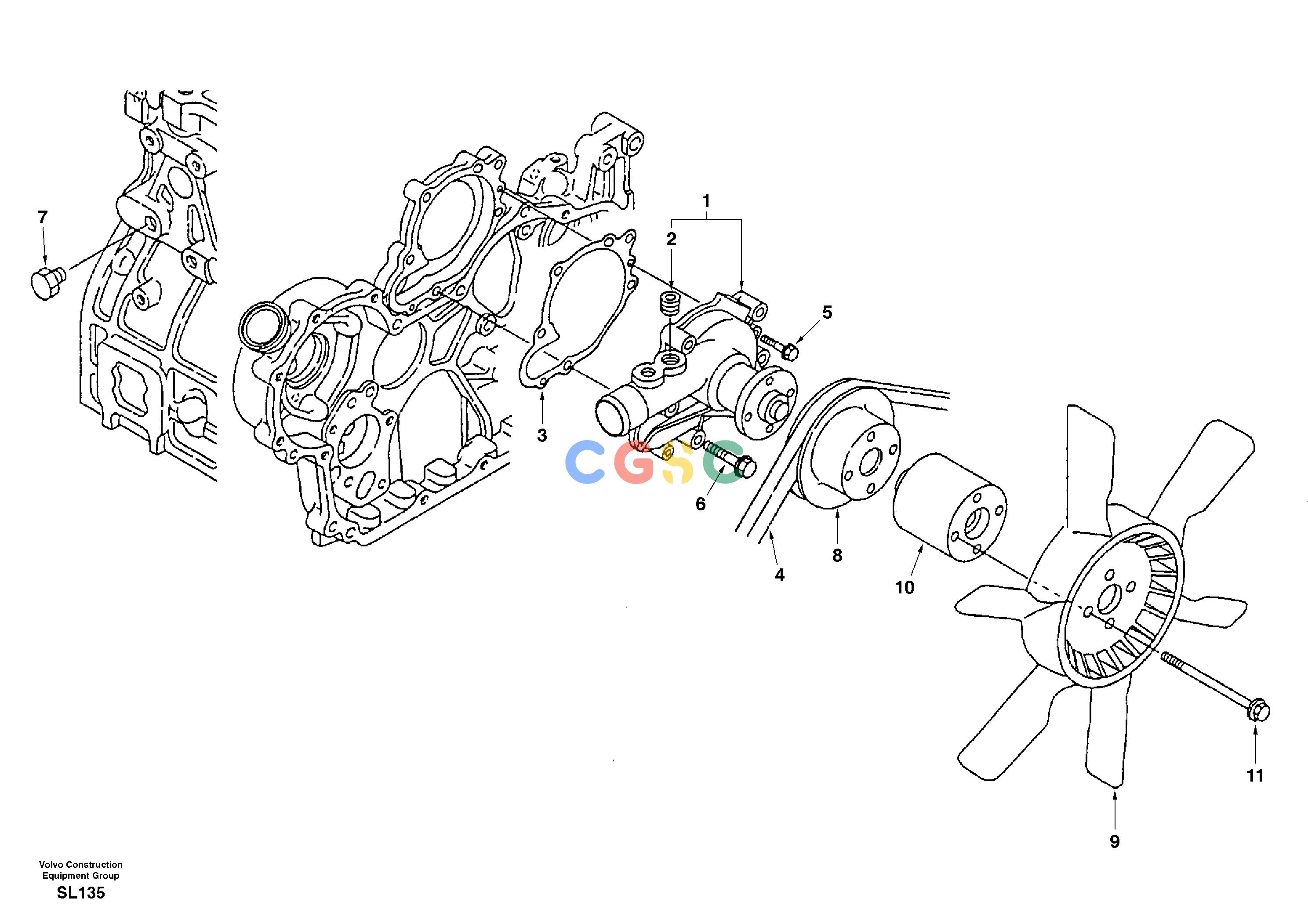

沃尔沃零件查询EC55 Fan driveSER NO 5001-AL04B001-AL04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA8210-04810
|
[1] |
Water Pump
|
|
| 2. |
SA8210-05640
|
[1] |
Plug
|
|
| 3. |
SA8210-04820
|
[1] |
Gasket
|
|
| 4. |
VOE11714725
|
[1] |
V-belt
|
41"
|
| |
VOE11714725
|
|
V-belt
|
41",SER NO 5001-6782
|
| |
VOE14519063
|
|
V-belt
|
42",SER NO 6783-
|
| 5. |
VOE11714491
|
[2] |
Bolt
|
|
| 6. |
VOE11714373
|
[5] |
Bolt
|
|
| 7. |
SA8210-05340
|
[1] |
Plug
|
|
| 8. |
VOE14523905
|
[1] |
Pulley
|
|
| 9. |
SA8210-05120
|
[1] |
Fan
|
|
| 10. |
SA8210-01860
|
[1] |
Spacer
|
|
| 11. |
VOE11713672
|
[4] |
Bolt
|
|
