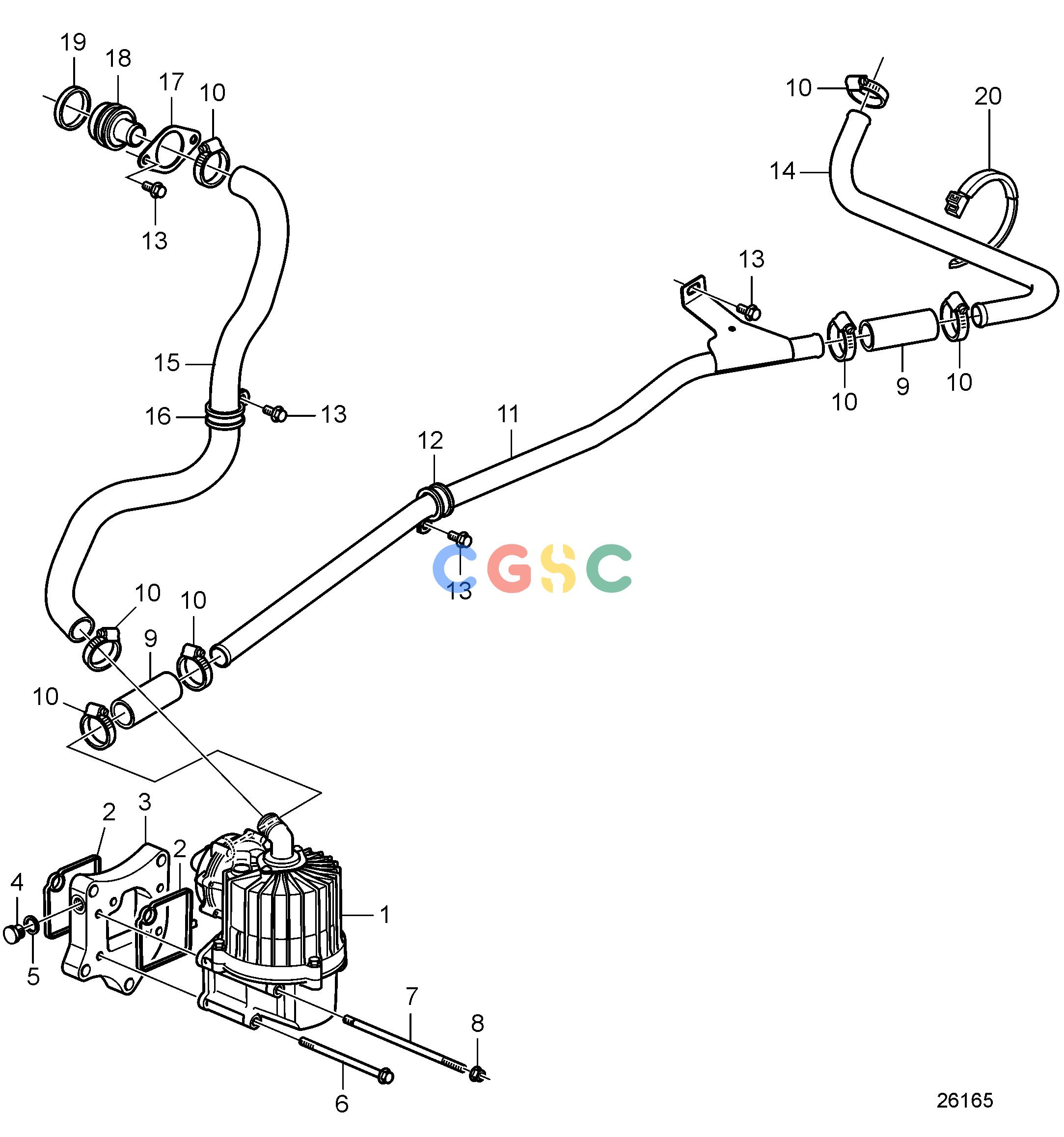

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Intake and Exhaust SystemCrankcase Ventilation, Earlier Production. SN-X013349122EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
279 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21241130
|
[1] |
Separator
|
Replaced by 21122541
|
| 1. |
21122541
|
[1] |
Oil separator
|
|
| 2. |
20532891
|
[2] |
Gasket
|
|
| 3. |
21833614
|
[1] |
Adapter
|
|
| 4. |
960628
|
[1] |
Plug
|
|
| 5. |
947281
|
[1] |
Gasket
|
|
| 6. |
968999
|
[2] |
Flange screw
|
|
| 7. |
981440
|
[2] |
Stud
|
|
| 8. |
945408
|
[2] |
Flange nut
|
|
| 9. |
20580933
|
[2] |
Hose
|
|
| 10. |
853548
|
[7] |
Hose clamp
|
|
| 11. |
21241114
|
[1] |
Pipe
|
|
| 12. |
947827
|
[1] |
Clamp
|
|
| 13. |
946440
|
[5] |
Flange screw
|
|
| 14. |
21231192
|
[1] |
Pipe
|
|
| 15. |
21274017
|
[1] |
Hose
|
|
| 16. |
949997
|
[1] |
Clamp
|
|
| 17. |
3849250
|
[1] |
Flange
|
|
| 18. |
21274024
|
[1] |
Adapter
|
|
| 19. |
21532258
|
[1] |
Sealing ring
|
|
| 20. |
1075407
|
[1] |
Cable tie
|
|
